PLAN 1066-62

Home > Style > Contemporary

Key Specs

3980
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This contemporary design floor plan is 3980 sq ft and has 4 bedrooms and 3.5 bathrooms.

Floor Plans

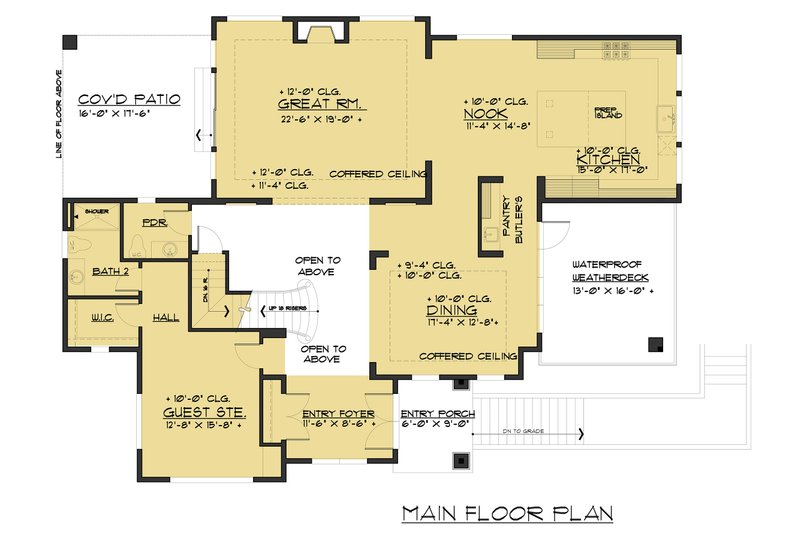

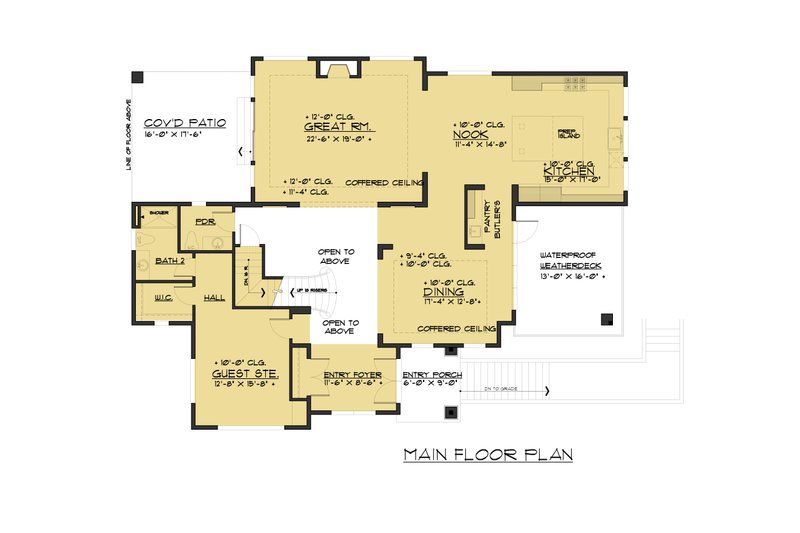

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Main Floor

Reverse

Floor Plan - Upper Floor

Reverse

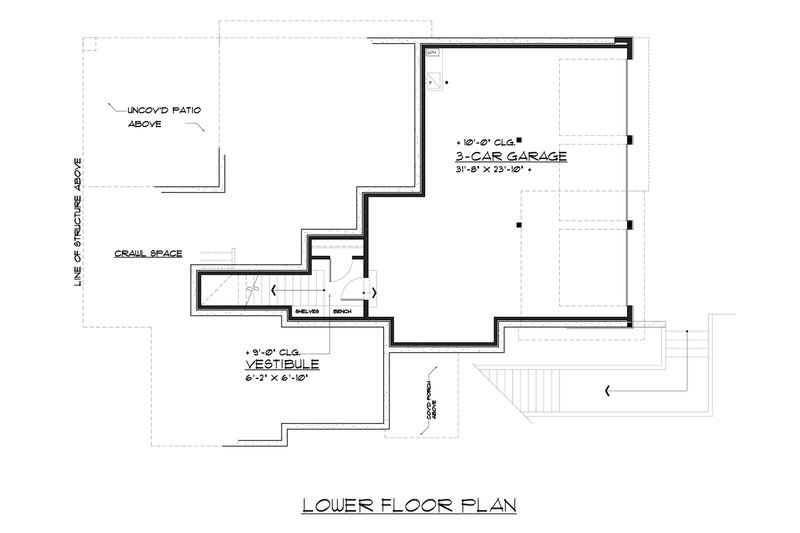

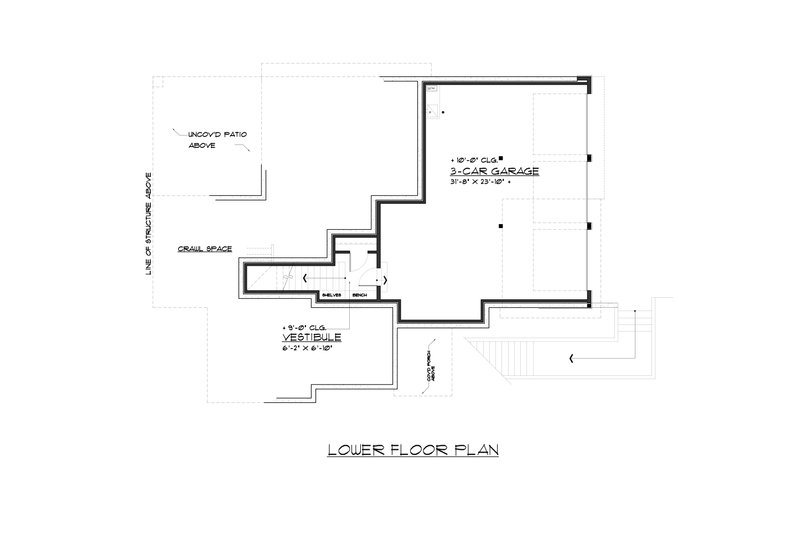

Floor Plan - Lower Floor

Reverse

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Dimension

Depth : 66' 6"

Height : 34' 7"

Width : 50'

Area

Decks : 254 sq/ft

Garage : 885 sq/ft

Lower Floor : 128 sq/ft

Main Floor : 2196 sq/ft

Patios : 280 sq/ft

Porch : 81 sq/ft

Upper Floor : 1656 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Great room and dining room have coffered ceilings.

Garage Ceiling : 10'

Lower Ceiling : 10'

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 4/12

Roof Framing : Trusses

Roof Load : 25 PSF

Roof Type : Composition Shingles, Some Flat

Exterior Wall Framing

Exterior Wall Finish : Siding, Stone and Hardie Panels

Framing : 2X6

Insulation : R21

Bedroom Features

Fireplace

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Additional Room Features

Great Room Living Room

Upstairs Laundry

Garage Features

Front Entry Garage

Garage Under

Lot Characteristics

Suited For Sloping Lot

Outdoor Spaces

Covered Front Porch

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Cover Sheet: 3D Rendering and Project Information.
General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).
Floor Plans (lower, main, upper, etc.) showing all doors and windows.
Elevations from all four sides showing material callouts.
Wall framing and sectional detail sheets.
Building Cross Sections showing stair and ceiling height details.
Window and Door schedule.
Overhead roof plan showing peaks, valleys, and pitch.
Foundation Plan showing perimeter and footing details.
Misc. notes and details.
*Please note that any structural engineering sheets included with this plan set are for reference only.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$1990.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$2290.00

5 printed plan sets mailed to you.

8 Copy Set:
$2440.00

8 printed plan sets mailed to you.

CAD Set:
$3781.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$300.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$250.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$395.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$350.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
