PLAN 51-690
Key Specs
7514
sq ft
5
Beds
4
Baths
1
Floors
4
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
PLAN 51-690
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Full Specs & Features
Height : 24' 6"
Width : 95'
Basement Unfinished: 262 sq/ft
Bonus: 824 sq/ft
First Floor: 3476 sq/ft height 10'
Garage: 798 sq/ft
Roof Framing : Truss
Roof Type : Shingle
Framing : Wood - 2x6
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Mud Room
Sunroom
Unfinished Future Space
Wine Cellar
Workshop
Deck
Screened Porch
Bedroom 2:
267 sq/ft width 14' 4" x depth 18' 8"
Bedroom 3:
238 sq/ft width 14' x depth 17'
Bedroom 3 Closet:
50 sq/ft width 5' x depth 10'
Bedroom 4:
224 sq/ft width 16' x depth 14'
Bedroom 4 Closet:
51 sq/ft width 5' 8" x depth 9'
Bedroom 5:
288 sq/ft width 18' x depth 16'
Billiards Room:
350 sq/ft width 14' x depth 25'
Bonus Room - Finished:
324 sq/ft width 18' x depth 18'
Deck:
336 sq/ft width 24' x depth 14'
Dining Room:
360 sq/ft width 23' x depth 15' 8"
Exercise Room:
308 sq/ft width 21' x depth 14' 8"
Family Room:
399 sq/ft width 21' x depth 19'
Foyer:
154 sq/ft width 11' x depth 14'
Game Room:
222 sq/ft width 15' 4" x depth 14' 6"
Garage:
1080 sq/ft width 27' x depth 40'
Great Room:
378 sq/ft width 18' x depth 21'
Kitchen:
283 sq/ft width 23' x depth 12' 4"
Laundry Room:
115 sq/ft width 9' 4" x depth 12' 4"
Master Bedroom:
357 sq/ft width 21' x depth 17'
Master Walk-In Closet:
171 sq/ft width 14' 8" x depth 11' 8"
Mud Room:
170 sq/ft width 10' x depth 17'
Sitting Area:
156 sq/ft width 13' x depth 12'
Study:
257 sq/ft width 18' x depth 14' 4"
Sun Room:
224 sq/ft width 14' x depth 16'
Wet Bar:
144 sq/ft width 12' x depth 12'
Wine Cellar:
100 sq/ft width 10' x depth 10'
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

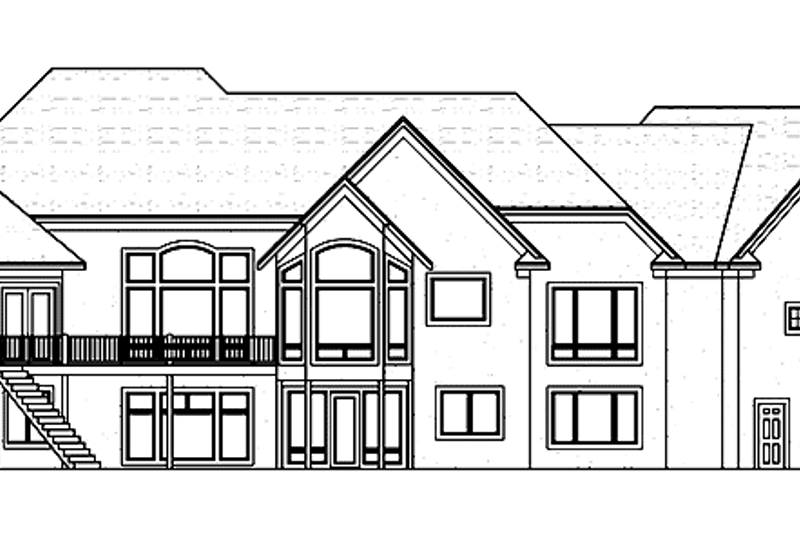

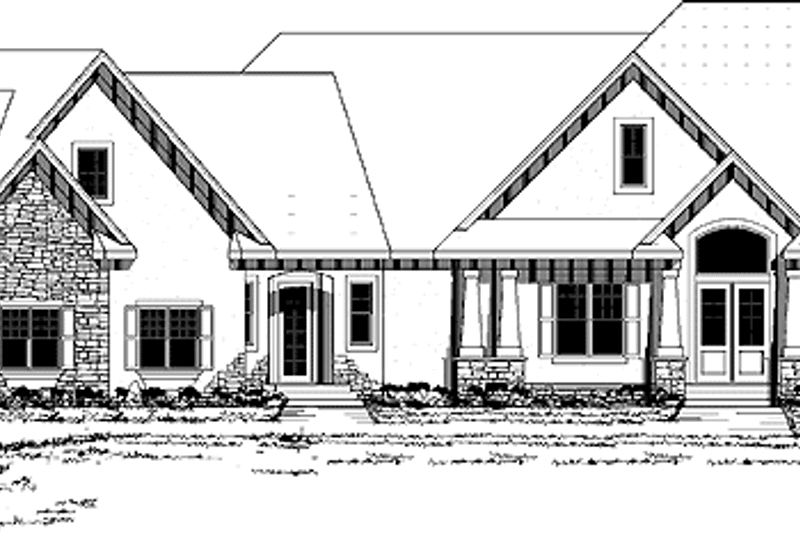

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.

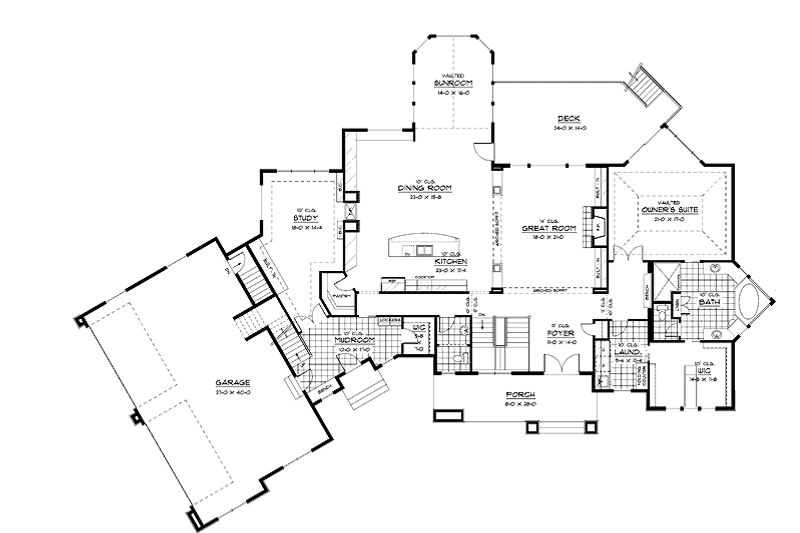

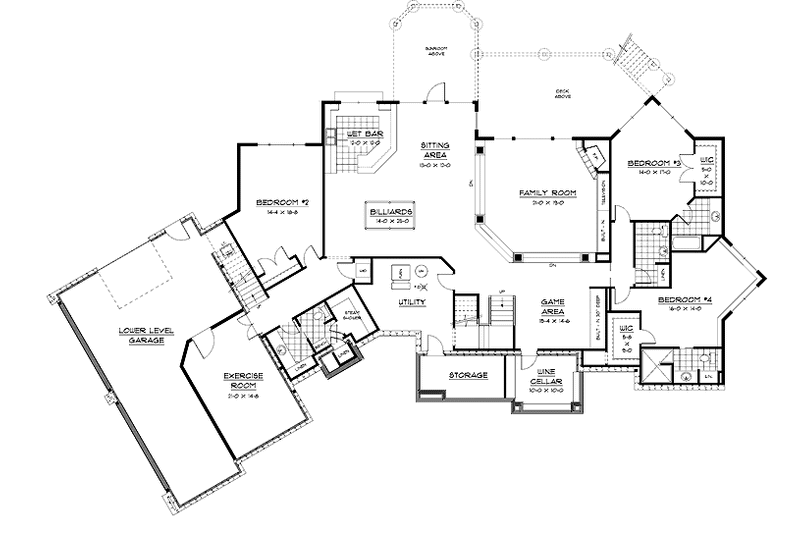

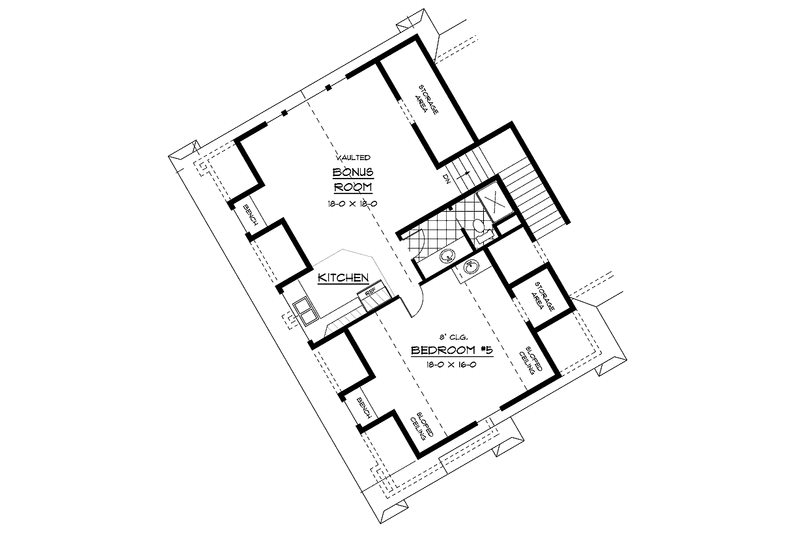

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
| 5 Copy Set : $1892.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $2156.00 |
8 printed plan sets mailed to you. |
| PDF Set : $2200.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $2310.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $2860.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $200.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets : $50.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
