PLAN 51-1143

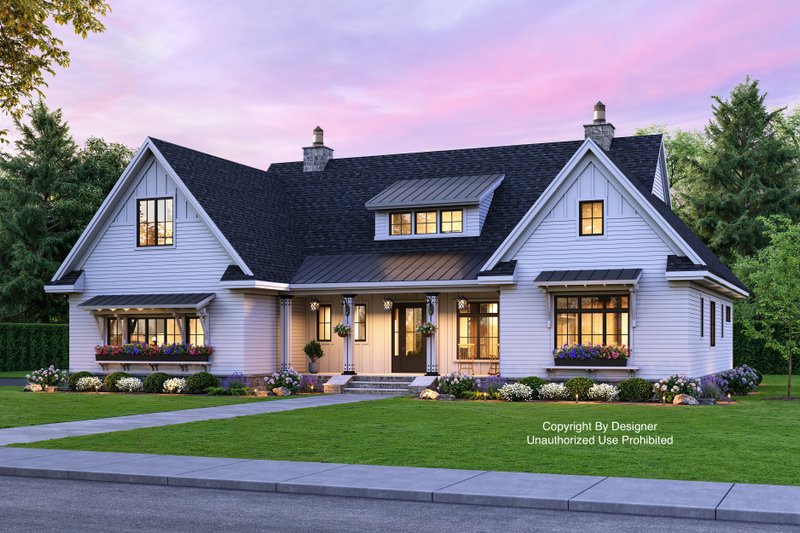

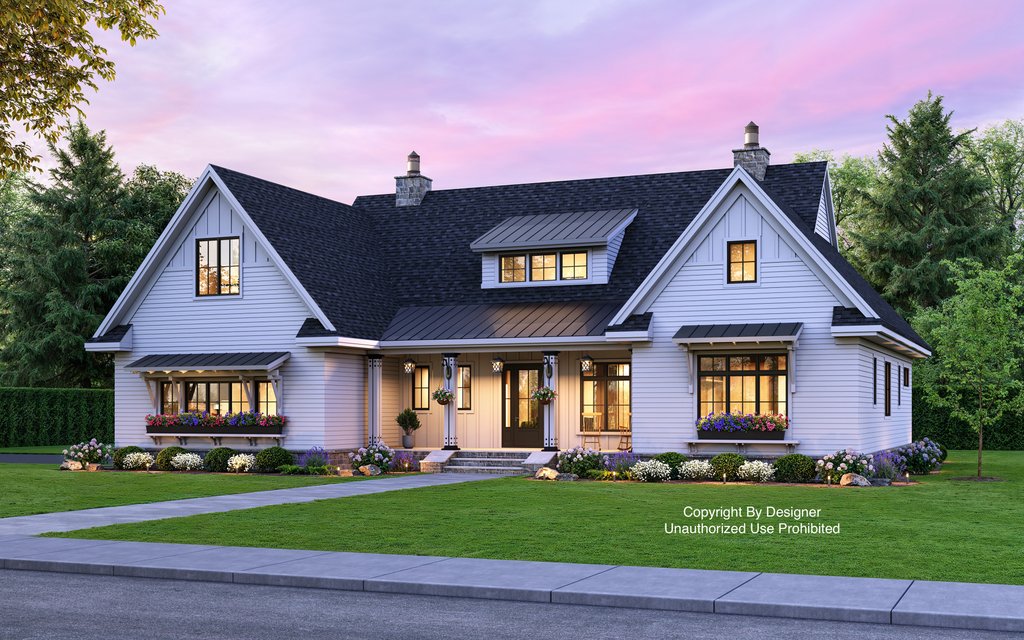

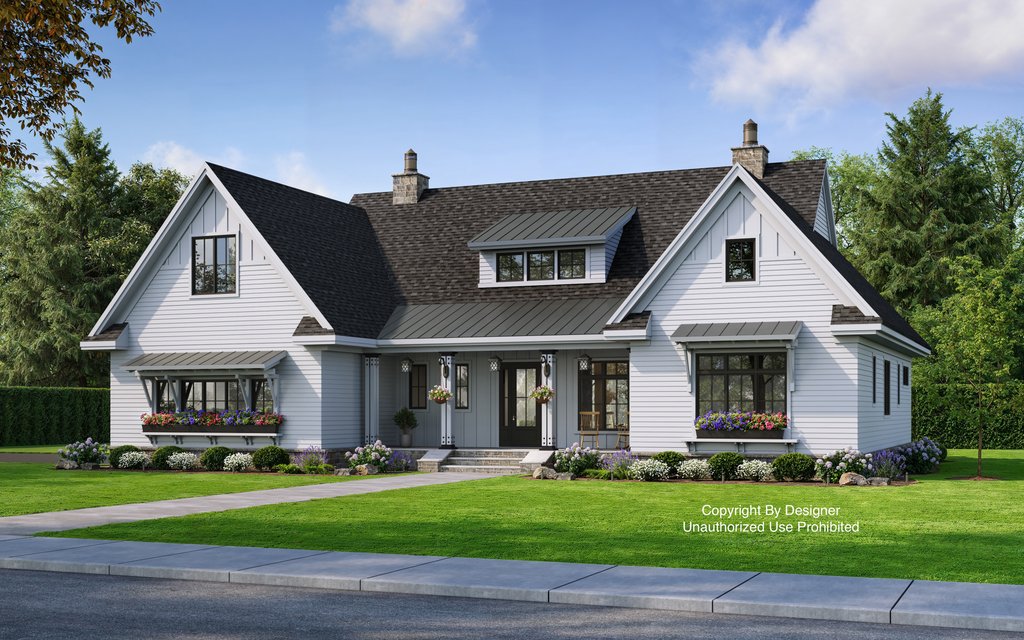

Farmhouse Exterior - Front Elevation Plan #51-1143
Farmhouse Exterior - Rear Elevation Plan #51-1143
Right Side
Left Side

Key Specs


2514
sq ft

4
Beds

3.5
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?
Additional Construction Sets
$67.50/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Subtotal
NOW $1845.00
You save $205.00
(10% savings)
Sale ends soon!
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 51-1143

Key Specs


2514
sq ft

4
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description


Nice surprises await buyers throughout this 2,514-square-foot modern farmhouse, from the master suite’s walk-in closet direct door to the laundry room (making it easy to throw in a load of clothing) to the pocket office in the kitchen. Lockers in the mudroom keep backpacks and such organized. Over on the right side of the home, three secondary bedrooms (one with a private bathroom and a fun bench by the window) hold family members and visitors. A bonus space upstairs invites future expansion.

Full Specs & Features


Dimension
Depth : 57' 6"
Height : 29'
Width : 69'
Area
Basement : 2514 sq/ft
Bonus : 390 sq/ft
Garage : 506 sq/ft
Main Floor : 2514 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling : 9'
Garage Ceiling : 11' 6"
Lower Ceiling : 9'
Main Ceiling : 10'
Roof
Primary Pitch : 12:12
Roof Framing : trusses
Secondary Pitch : 14:12
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2x6
Bedroom Features
2 Master Suites
Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath

What's Included In This Plan Set


  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
» See important information before purchasing.
Questions? Call 1-877-222-1762
Plan Set
PDF Set :
$1845.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1845.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
5 Copy Set :
$2025.00
5 printed plan sets mailed to you.
5 Copy and PDF Set :
$2115.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set :
$2115.00
8 printed plan sets mailed to you.
CAD Set :
$2430.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set :
$585.00
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$360.00
Ideal for level lot, lower level of home partially or fully underground.
Slab:
$360.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6
Wood 2x4:
$360.00
Wood 2x4

Additional Options

Right-Reading Reverse :
$360.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$67.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$90.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.
