PLAN 51-687

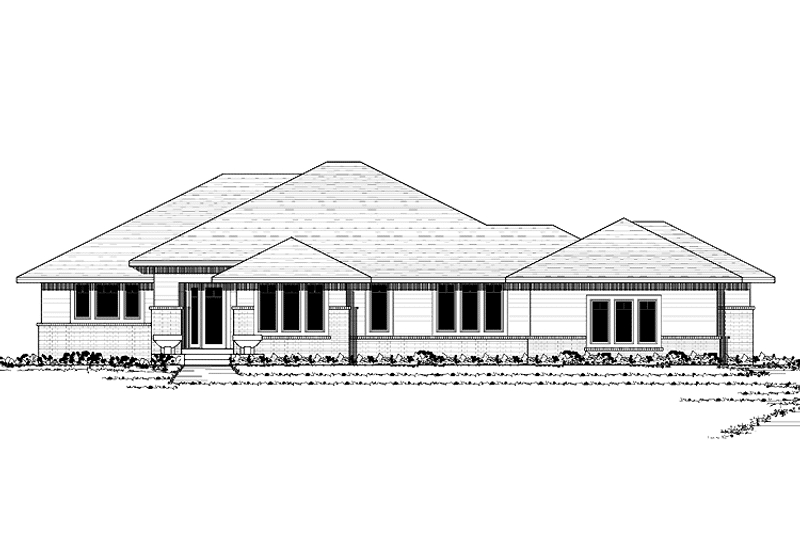

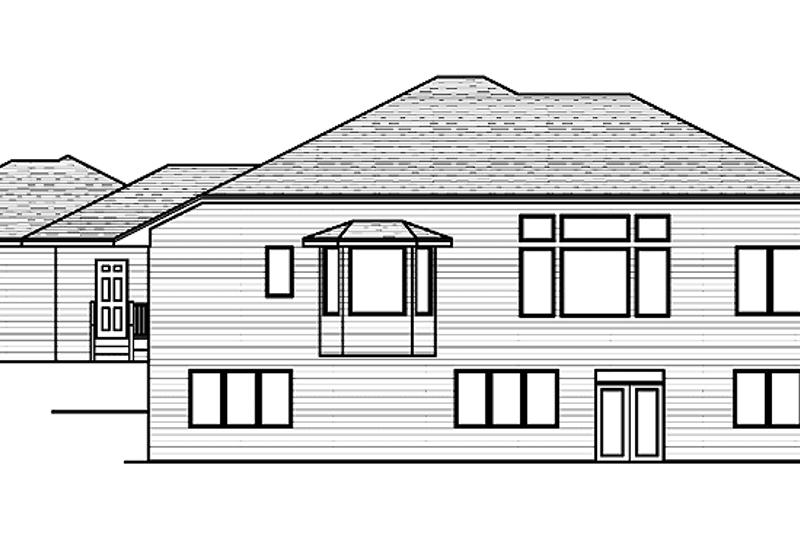

Architectural House Design - Prairie Exterior - Rear Elevation Plan #51-687

Key Specs

5010
sq ft

5
Beds

3.5
Baths

1
Floors

4
Garages

Select Plan Set Options

What's included?

	Right-Reading Reverse $170.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $51.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $85.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $33.15 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $170.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets $42.50 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $1608.20

You save $283.80

(15% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 51-687

Key Specs

5010
sq ft

5
Beds

3.5
Baths

1
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Floor Plans

Floor Plan - Lower Floor

Reverse

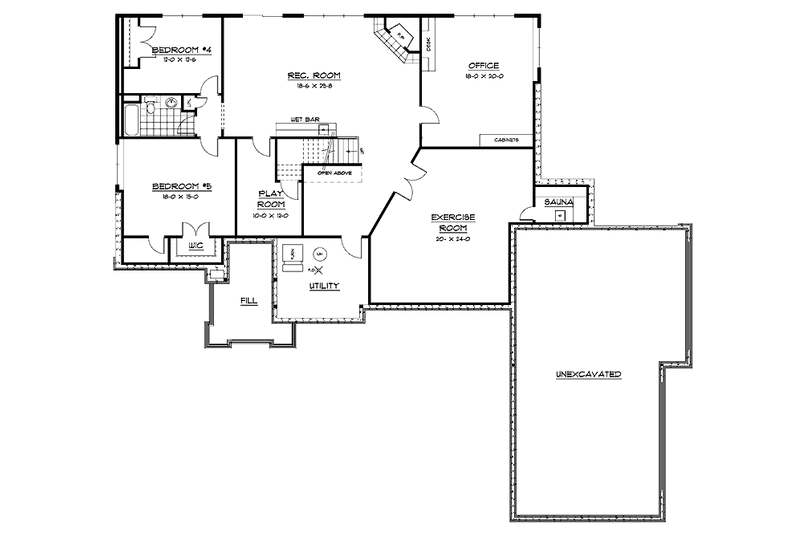

Architectural House Design - Prairie Floor Plan - Lower Floor Plan #51-687

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Main Floor

Reverse

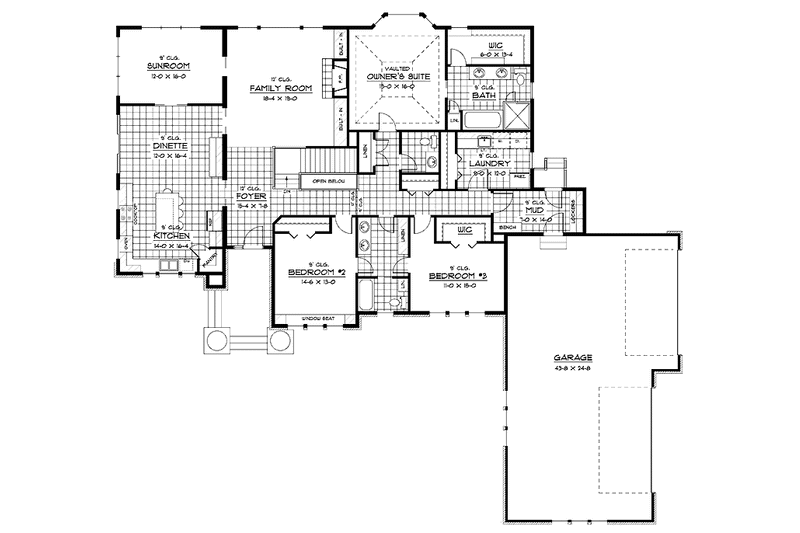

Architectural House Design - Prairie Floor Plan - Main Floor Plan #51-687

Full Specs & Features

Dimension

Depth : 75' 8"
Height : 22' 6"
Width : 86'

Area

Basement Living: 2326 sq/ft height 8'
Basement Unfinished: 358 sq/ft
First Floor: 2684 sq/ft height 9'
Garage: 1081 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Exercise Room
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Sunroom

Outdoor Spaces

Screened Porch

Rooms

Bedroom 2:

188 sq/ft width 14' 6" x depth 13'

Bedroom 3:

165 sq/ft width 11' x depth 15'

Bedroom 4:

150 sq/ft width 12' x depth 12' 6"

Bedroom 5:

270 sq/ft width 18' x depth 15'

Dinette:

195 sq/ft width 12' x depth 16' 4"

Exercise Room:

480 sq/ft width 20' x depth 24'

Family Room:

348 sq/ft width 18' 4" x depth 19'

Foyer:

117 sq/ft width 15' 4" x depth 7' 8"

Garage:

1077 sq/ft width 43' 8" x depth 24' 8"

Kitchen:

228 sq/ft width 14' x depth 16' 4"

Laundry Room:

108 sq/ft width 9' x depth 12'

Master Bedroom:

240 sq/ft width 15' x depth 16'

Master Walk-In Closet:

79 sq/ft width 6' x depth 13' 4"

Mud Room:

98 sq/ft width 7' x depth 14'

Office:

360 sq/ft width 18' x depth 20'

Play Room:

120 sq/ft width 10' x depth 12'

Recreation Room:

548 sq/ft width 18' 6" x depth 29' 8"

Sun Room:

192 sq/ft width 12' x depth 16'

What's Included In This Plan Set

See a sample plan set

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
Note: These plans will not contain an electrical layout.

» See important information before purchasing.

Questions? Call 1-877-222-1762

Plan Set

5 Copy Set : $1608.20	5 printed plan sets mailed to you.
8 Copy Set : $1832.60	8 printed plan sets mailed to you.
PDF Set : $1870.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1963.50	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $2431.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Right-Reading Reverse : $170.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $51.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $85.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $33.15	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $170.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $42.50	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
