PLAN 943-22
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 58' 6"
Height : 27'
Width : 96' 9"
Area
First Floor: 2027 sq/ft height 9'
Garage: 737 sq/ft
Second Floor: 1102 sq/ft height 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Outdoor Spaces
Balcony
Deck
Rooms
Bedroom 2:
138 sq/ft width 13' 6" x depth 10' 3"
Bedroom 3:
140 sq/ft width 13' 8" x depth 10' 3"
Den:
146 sq/ft width 13' 6" x depth 10' 10"
Dining Room:
227 sq/ft width 18' 2" x depth 12' 6"
Great Room:
434 sq/ft width 21' x depth 20' 8"

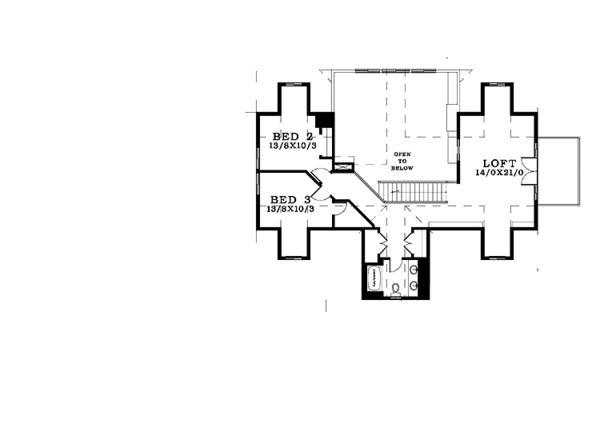

Loft:
294 sq/ft width 14' x depth 21'
Master Bedroom:
212 sq/ft width 14' 2" x depth 15'
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

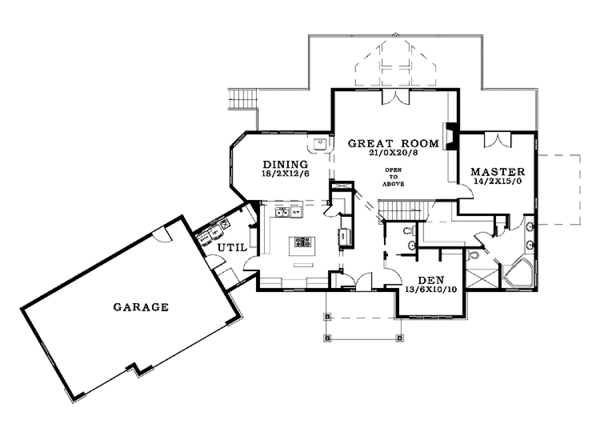

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Plan Set
$917.00
$997.00
$1118.00
$1174.00
$1906.00
$863.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$60.00
$165.00
$395.00
$39.00
$165.00
$55.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
