PLAN 47-859

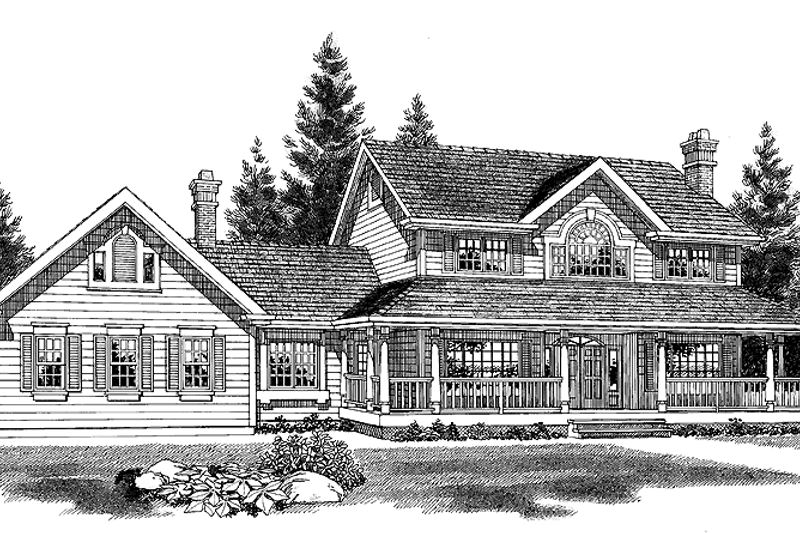

Architectural House Design - Victorian Exterior - Rear Elevation Plan #47-859

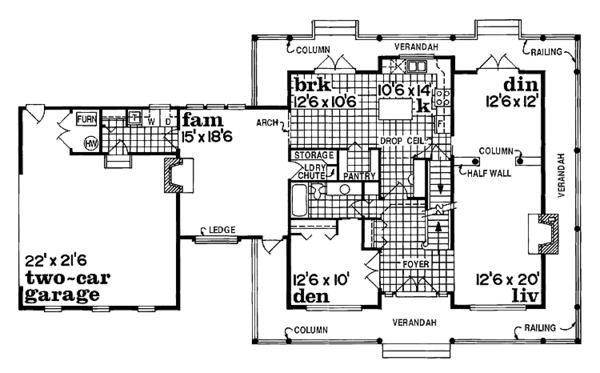

Architectural House Design - Victorian Floor Plan - Main Floor Plan #47-859

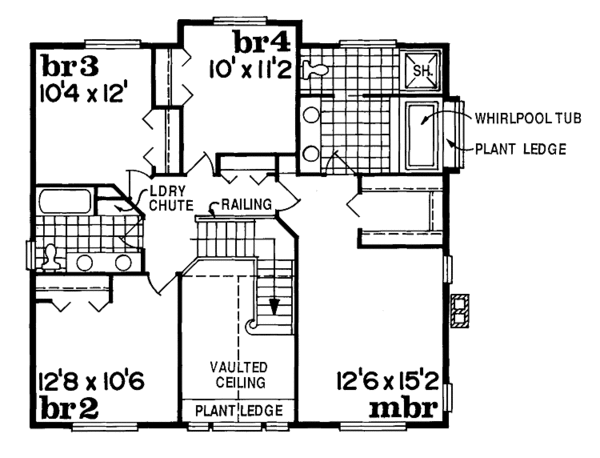

Architectural House Design - Victorian Floor Plan - Upper Floor Plan #47-859

Key Specs

2797
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

	Right-Reading Reverse $148.75 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $51.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License $410.55 Additional Use License.
	Audio Video Design $85.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $33.15 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Material List $72.25 A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Mirror Reversed Sets $51.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License $821.10 Unlimited Use License.

Subtotal

NOW $903.21

You save $159.39

(15% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Cost to Build Reports Only $4.99 with Code CTBJUNE (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 47-859

Key Specs

2797
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This grand farmhouse is anything but ordinary. Its lovely details--a Palladian window, a covered veranda, and shutters--put it a cut above the rest. The interior features classic floor planning with a vaulted center-hall foyer and staircase to the second floor. A living room and a dining room are on the right; a den and the large family room are on the left. With a full bath nearby, the den can serve as guest space.

Floor Plans

Floor Plan - Main Floor

Reverse

Builder Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 44'
Height : 31'
Width : 80'

Area

First Floor: 1639 sq/ft height 9'
Second Floor: 1158 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12
Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island

Additional Room Features

Den Office Study Computer
Family Room Keeping Room

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch
Wrap Around Porch

Rooms

3rd BR Closet:

11 sq/ft width 2' x depth 5' 7"

Basement Foundation:

1896 sq/ft width 52' 8" x depth 36'

Bedroom 2:

133 sq/ft width 12' 8" x depth 10' 6"

Bedroom 2 Closet:

13 sq/ft width 6' 6" x depth 2'

Bedroom 3:

123 sq/ft width 10' 4" x depth 12'

Bedroom 3 Closet:

13 sq/ft width 6' 6" x depth 2'

Bedroom 4:

111 sq/ft width 10' x depth 11' 2"

Bedroom 4 Closet:

10 sq/ft width 2' x depth 5' 1"

Breakfast Room:

131 sq/ft width 12' 6" x depth 10' 6"

Crawlspace Foundation:

1896 sq/ft width 52' 8" x depth 36'

Den/Office or Bedroom 1:

127 sq/ft width 12' 6" x depth 10' 2"

Dining Room:

152 sq/ft width 12' 8" x depth 12'

Foyer:

60 sq/ft width 10' x depth 6'

Garage:

484 sq/ft width 22' x depth 22'

Gathering Room:

277 sq/ft width 15' x depth 18' 6"

Hall Bathroom:

62 sq/ft width 8' 4" x depth 7' 6"

Hall Closet:

8 sq/ft width 2' x depth 4'

Kitchen:

147 sq/ft width 10' 6" x depth 14'

Living Room:

253 sq/ft width 12' 8" x depth 20'

Master Bathroom:

139 sq/ft width 12' 8" x depth 11'

Master Bedroom:

194 sq/ft width 12' 8" x depth 15' 4"

Master Closet:

42 sq/ft width 7' x depth 6'

Porch - Front:

235 sq/ft width 47' x depth 5'

Porch - Left:

50 sq/ft width 5' x depth 10'

Porch - Rear:

235 sq/ft width 47' x depth 5'

Porch - Right:

170 sq/ft width 5' x depth 34'

Powder Room:

50 sq/ft width 10' 2" x depth 5'

Utility Room:

63 sq/ft width 10' 6" x depth 6'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Questions? Call 1-877-222-1762

Plan Set

PDF Set : $903.21	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $1001.39	5 printed plan sets mailed to you.
8 Copy Set : $1099.56	8 printed plan sets mailed to you.
Reproducible Set : $1099.56	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $1806.42	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement: $0.00	Ideal for level lot, lower level of home partially or fully underground.
Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement: $233.75	Ideal for sloping lot, lower level of home partially underground.
Slab: $233.75	Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Right-Reading Reverse : $148.75	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $51.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License : $410.55	Additional Use License.
Audio Video Design : $85.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $33.15	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Material List : $72.25	A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Mirror Reversed Sets : $51.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unlimited Use License : $821.10	Unlimited Use License.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
