Key Specs
1530
sq ft
3
Beds
2
Baths
1
Floors
1
Garages
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
PLAN 47-672
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 61'
Height : 27'
Width : 77' 7"
Area
Basement Unfinished: 1440 sq/ft
First Floor: 1530 sq/ft height 8'
Roof
Primary Pitch : 5:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Split Bedrooms
Additional Room Features
Great Room Living Room
Outdoor Spaces
Covered Rear Porch
Rooms
3rd BR Closet:
12 sq/ft width 2' x depth 6' 1"
Basement Foundation:
471 sq/ft width 77' 7" x depth 6' 1"
Bedroom 2:
123 sq/ft width 11' x depth 11' 3"
Bedroom 2 Closet:
15 sq/ft width 2' x depth 7' 6"
Bedroom 3:
99 sq/ft width 11' x depth 9' 1"
Bedroom 3 Closet:
15 sq/ft width 2' x depth 7' 6"
Foyer:
31 sq/ft width 4' 11" x depth 6' 6"
Garage:
298 sq/ft width 23' 7" x depth 12' 8"
Gathering Room:
786 sq/ft width 27' 7" x depth 28' 6"
Hall Bathroom:
55 sq/ft width 7' 6" x depth 7' 5"
Hall Closet:
9 sq/ft width 2' x depth 4' 11"
Kitchen:
162 sq/ft width 12' x depth 13' 6"
Master Bathroom:
42 sq/ft width 8' 6" x depth 5'
Master Bedroom:
145 sq/ft width 13' 3" x depth 11'
Master Closet:
9 sq/ft width 2' x depth 4' 8"
Porch - Front:
66 sq/ft width 5' 6" x depth 12'
Porch - Left:
302 sq/ft width 8' 4" x depth 36' 4"
Porch - Right:
233 sq/ft width 8' 4" x depth 28'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :

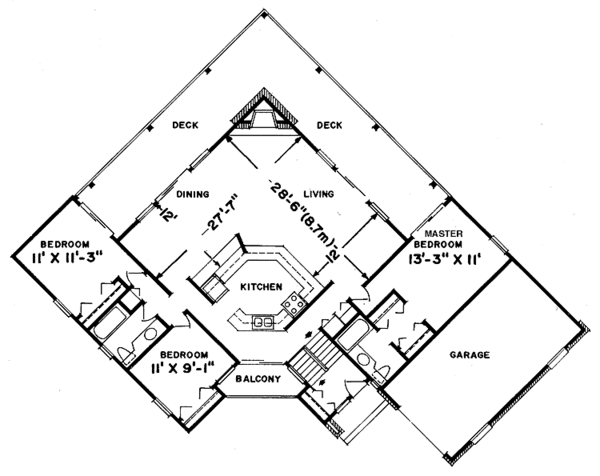

- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1056.00
$1188.00
$1320.00
$1320.00
$2112.00
Foundation
$0.00
$275.00
$275.00
Framing
$0.00
$0.00
Additional Options
$195.00
$60.00
$495.00
$150.00
$495.00
$39.00
$150.00
$85.00
$0.00
$995.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
