Full Specs & Features
Depth : 35' 6"
Height : 30' 3"
Width : 48'
Decks : 97 sq/ft

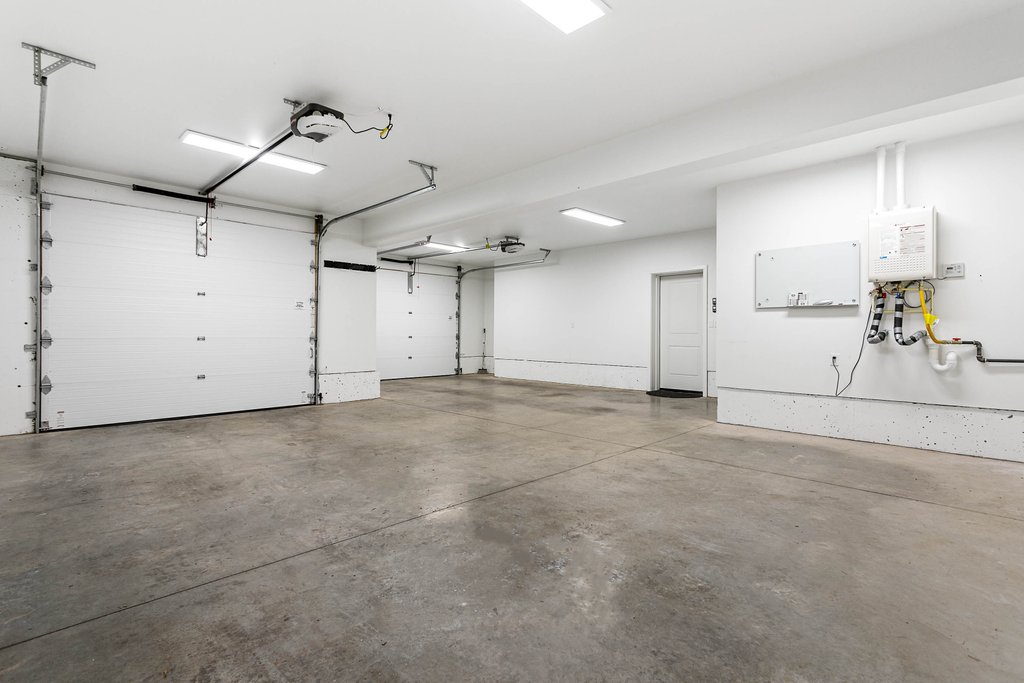

Garage : 737 sq/ft
Lower Floor : 617 sq/ft
Main Floor : 1338 sq/ft
Upper Floor : 634 sq/ft
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 3/12
Roof Framing : Truss
Exterior Wall Framing
Framing : 2 x 6
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Great Room Living Room
Front Entry Garage
Covered Front Porch
Suited For Vacation Home
What's Included In This Plan Set
Please note: This designer includes the bonus square feet to the total heated living square feet.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
