PLAN 1070-34
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Plan Description

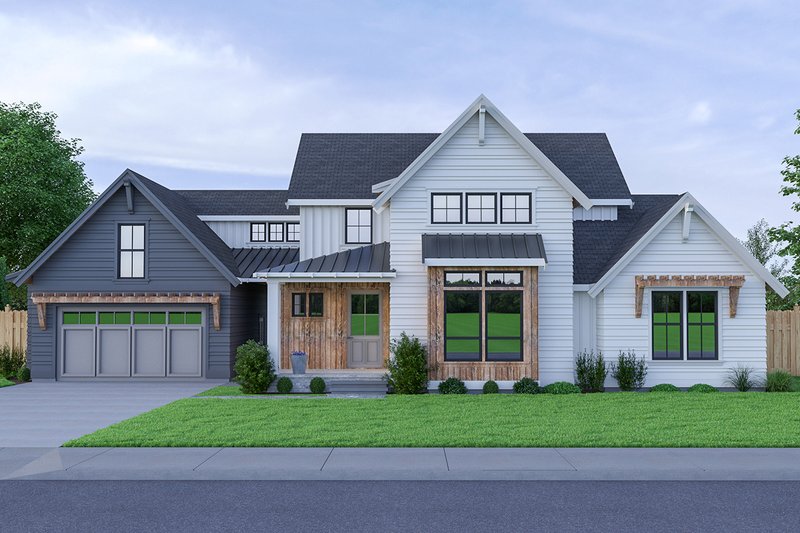

Well hello there! This modern farmhouse plan shows off cool contemporary styling, including metal roof accents. Inside, the layout is simple and open. The master suite is easy to reach on this level and features a 5-piece private bathroom.
Full Specs & Features
Dimension
Depth : 34'
Height : 29' 4"
Width : 78'
Height : 29' 4"
Width : 78'
Area
Bonus : 355 sq/ft
Garage : 494 sq/ft

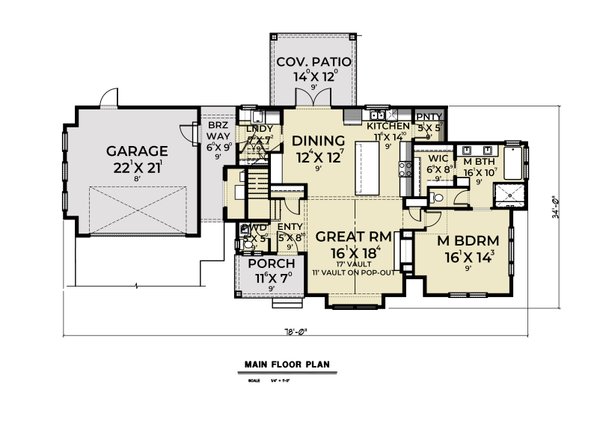

Main Floor : 1400 sq/ft

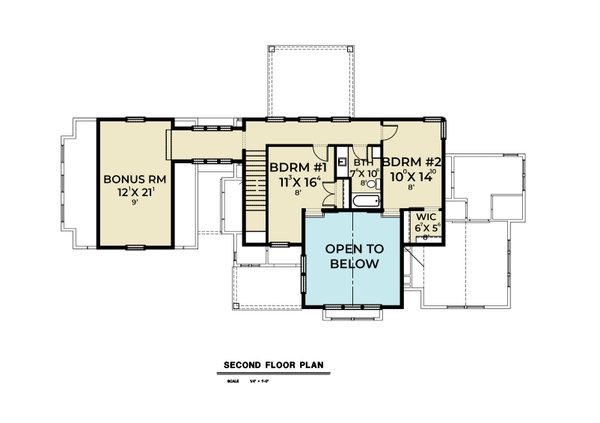

Upper Floor : 574 sq/ft
Garage : 494 sq/ft
Main Floor : 1400 sq/ft
Upper Floor : 574 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 12/12
Roof Framing : Truss/Stick
Secondary Pitch : 4/12
Roof Framing : Truss/Stick
Secondary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding
Framing : 2x6
Framing : 2x6
Bedroom Features
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Unfinished Future Space
Main Floor Laundry
Unfinished Future Space
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Sloping Lot
Outdoor Spaces
Breezeway
Covered Front Porch
Covered Rear Porch
Covered Front Porch
Covered Rear Porch
More
Economical To Build
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-877-222-1762
Plan Set
| PDF Set
: $1750.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy and PDF Set
: $1900.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set
: $2250.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Study Set
: $875.00 |
One electronic set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $175.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Additional Use License
: $750.00 |
Additional Use License. |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
