PLAN 1070-26
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 52'
Height : 27' 10"
Width : 52'
Area
Bonus : 308 sq/ft
Garage : 583 sq/ft
Main Floor : 1369 sq/ft
Patios : 185 sq/ft
Upper Floor : 485 sq/ft
Ceiling
Ceiling Details : Vaulted Family Room
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10/12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8/12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2 x 6
Bedroom Features
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Rooms
Bedroom 2:
width 11' x depth 10'
Bedroom 3:
width 10' x depth 12' 6"
Bonus:
width 12' x depth 23'
Dining Room:
width 11' 6" x depth 10' 6"
Hall Bath :
width 7' 2" x depth 7'
Kitchen:
width 14' 5" x depth 14' 2"
Laundry:
width 6' 8" x depth 7'
Master Bath:
width 12' x depth 10' 6"
Master Bedroom:
width 12' 6" x depth 16' 2"
Master Closet:
width 5' 8" x depth 8' 1"
What's Included In This Plan Set
Please note: This designer includes the bonus square feet to the total heated living square feet, unless otherwise noted.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.

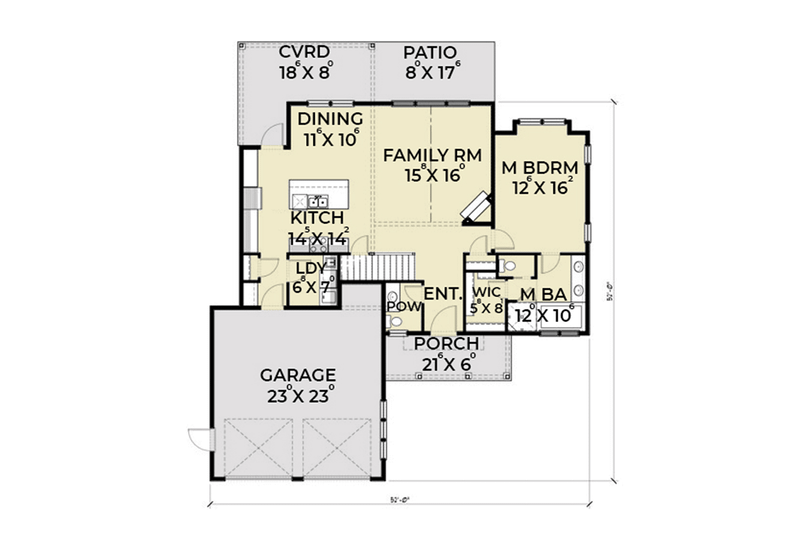

- Floor Plan(s): Detailed plans are typically drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$1487.50
$1870.00
$1912.50
$743.75
Foundation
$0.00
Framing
$0.00
Additional Options
$165.75
$42.50
$637.50
$140.25
$250.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
