PLAN 406-9619

Home > Style > Southern

Key Specs

815
sq ft

1
Beds

1
Baths

1
Floors

1
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This southern design floor plan is 815 sq ft and has 1 bedrooms and 1 bathrooms.

Floor Plans

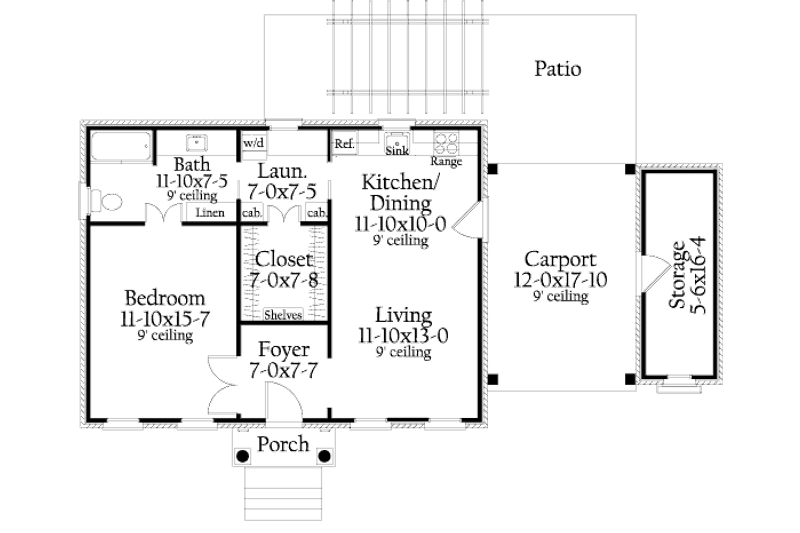

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 28'

Height : 20'

Width : 51' 10"

Area

First Floor: 815 sq/ft

Storage: 125 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 10:12

Roof Framing : 2x8 Framing

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : brick

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Additional Room Features

Storage Area

Garage Features

Carport Porte Cochere

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Outdoor Spaces

Breezeway

Covered Front Porch

Empty Nester

Rooms

Family Room:

153 sq/ft width 11' 10" x depth 13'

Foyer:

53 sq/ft width 7' x depth 7' 7"

Garage:

213 sq/ft width 12' x depth 17' 10"

Garage Storage:

89 sq/ft width 5' 6" x depth 16' 4"

Kitchen:

118 sq/ft width 11' 10" x depth 10'

Laundry Room:

51 sq/ft width 7' x depth 7' 5"

Master Bathroom:

87 sq/ft width 11' 10" x depth 7' 5"

Master Bedroom:

184 sq/ft width 11' 10" x depth 15' 7"

Master Closet:

53 sq/ft width 7' x depth 7' 8"

Patio:

345 sq/ft width 30' x depth 11' 6"

What's Included In This Plan Set
