PLAN 892-27
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 96' 3"
Height : 28' 6"
Width : 80' 9"
Area
Garage : 860 sq/ft
Main Floor : 3282 sq/ft
Upper Floor : 1682 sq/ft
Ceiling
Ceiling Details : Vaulted Great Room; beamed Dining Room Kitchen & Master Bedroom.
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Composition/Metal
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2 x 6
Bedroom Features
2 Master Suites
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Play Flex Room
Storage Area
Wet Bar
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
What's Included In This Plan Set

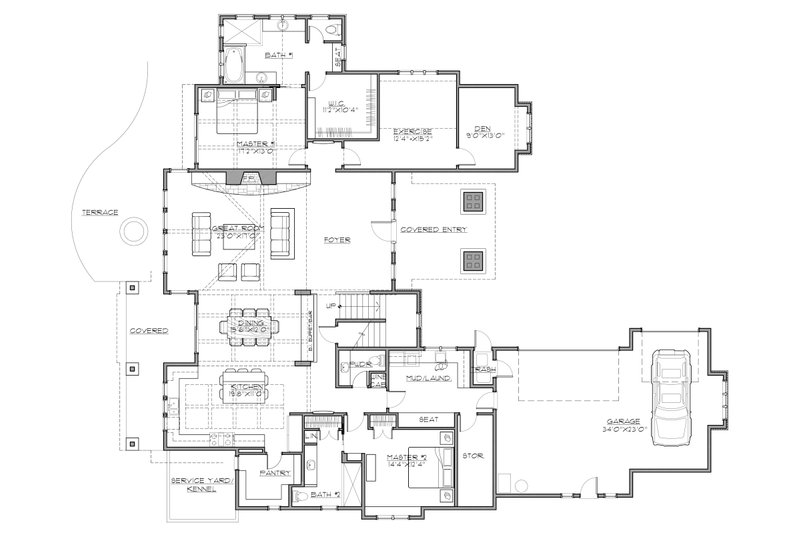

- Floor Plans: Detailed floor plans for both the main level and upper level (if applicable), include pertinent dimensions for: walls, windows, rooms and door openings. You'll also find the location of all appliances on these plans as well.

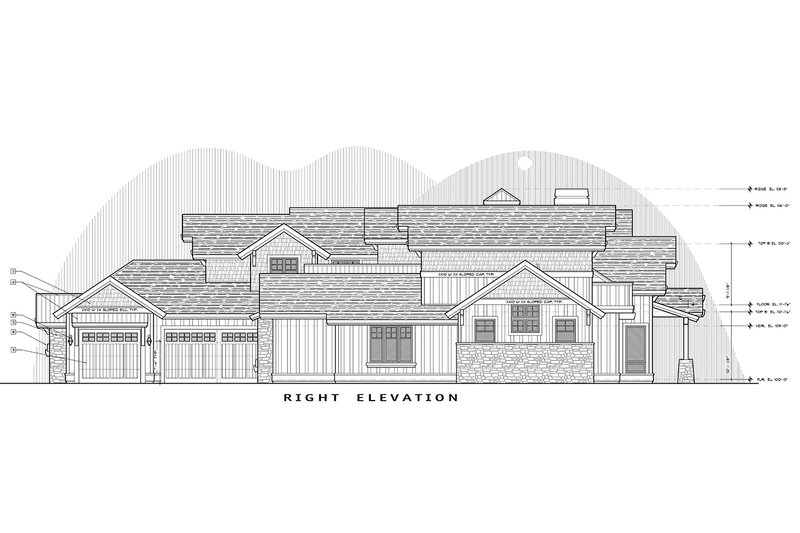

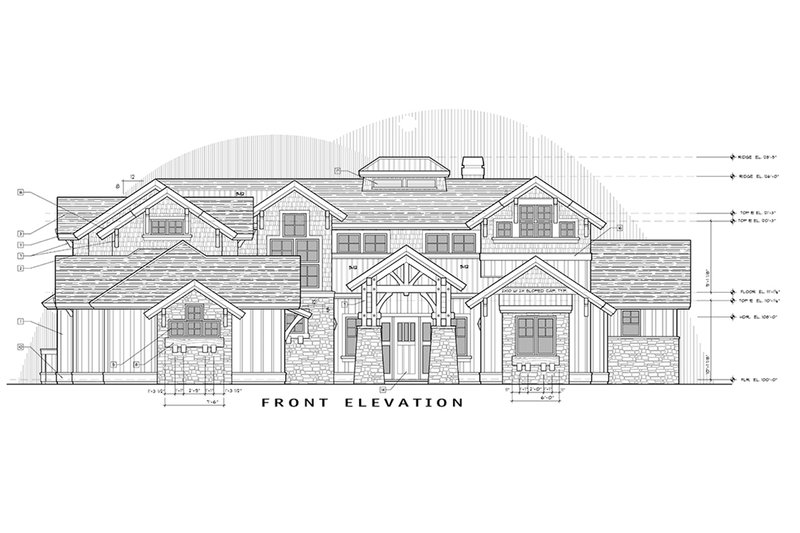

- Exterior Elevations: These plans include 4 elevation drawings showing the front, back and both sides. Exterior materials are called out.
- Building Sections: Perhaps one of the most important pages on any set of plans, the section cuts the house in half and shows details such as wall thickness, roof construction, foundation details, roof pitch, ceiling heights, and insulation.
- Foundation and Main Level Framing: Detailed drawings Including floor framing, location and direction of floor joists, locations of footings, notes related to the foundation and framing.
- Lower Roof and Upper Floor Framing: Detailed drawings Including floor and roof framing and notes related to the upper level and roof construction.
- Detail sheets: Detailed drawings and notes showing typical and specific foundation, wall, roof, and chimney construction.
Plan Set
$1676.00
$1676.00
$1836.00
$1916.00
$2316.00
$796.00
Foundation
$0.00
Additional Options
$156.00
$60.00
$80.00
$31.20
$160.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
