Full Specs & Features
Depth : 149'
Height : 20' 9"
Width : 78'
Garage : 1050 sq/ft
Main Floor : 3832 sq/ft
Ceiling Details : Vaulted Living Area, all Bedrooms & Finished Bonus Room
Primary Pitch : 9:12
Roof Framing : Truss/Stick
Roof Type : Composition
Secondary Pitch : 0:12
Exterior Wall Framing
Exterior Wall Finish : Stucco & Siding
Framing : 2 X 8
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Master Bedrooms
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Play Flex Room
Suited For Corner Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set

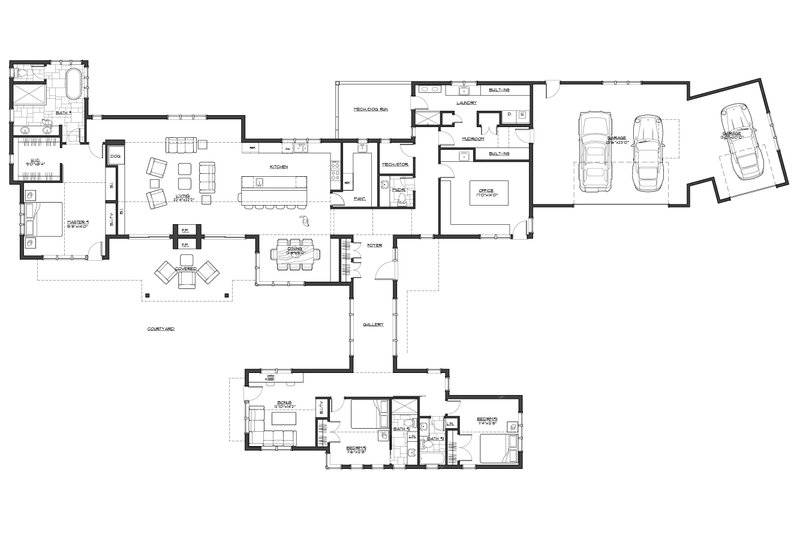

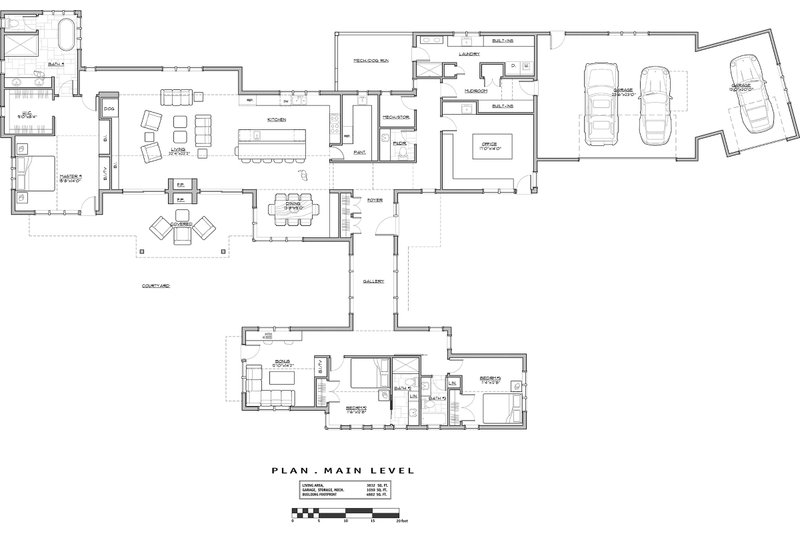

- Floor Plans: Detailed floor plans for both the main level and upper level (if applicable), include pertinent dimensions for: walls, windows, rooms and door openings. You'll also find the location of all appliances on these plans as well.

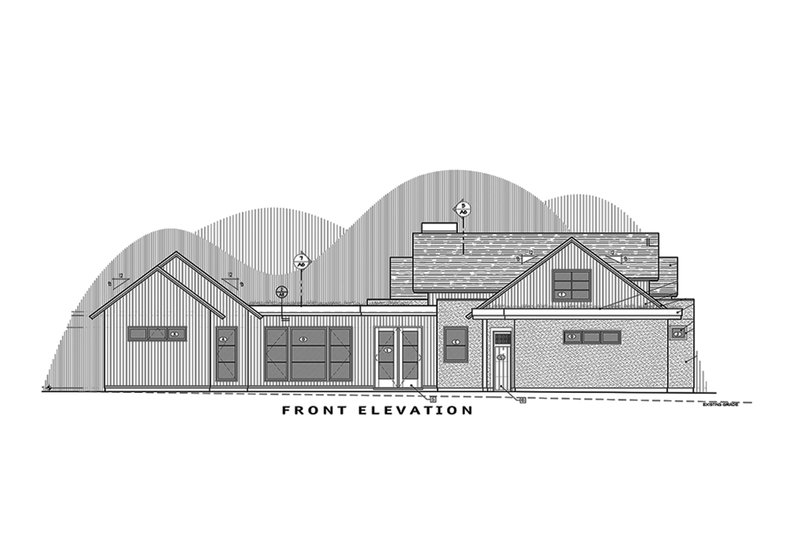

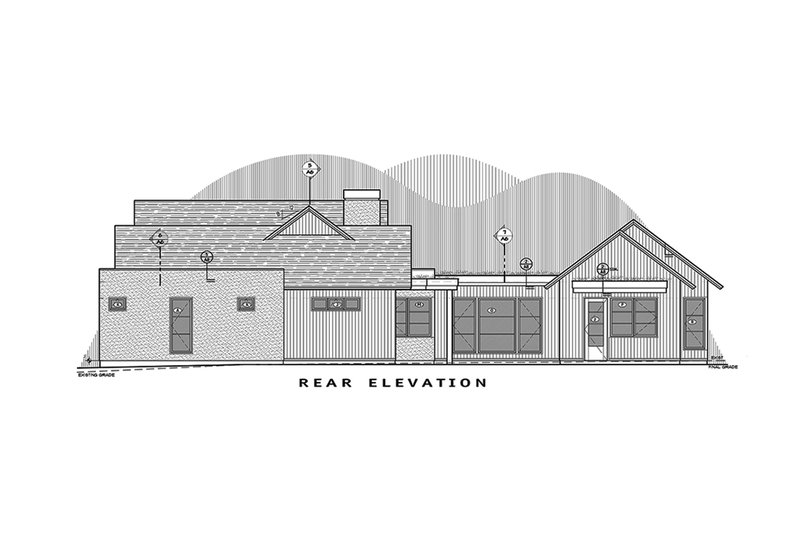

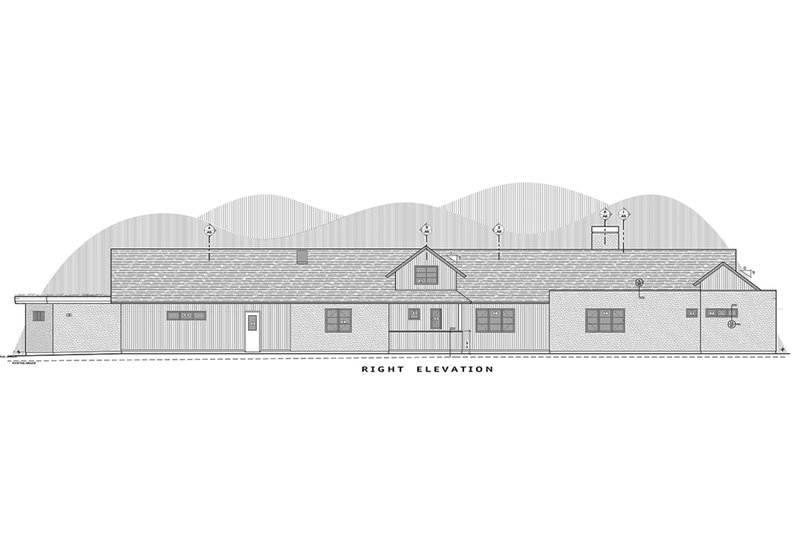

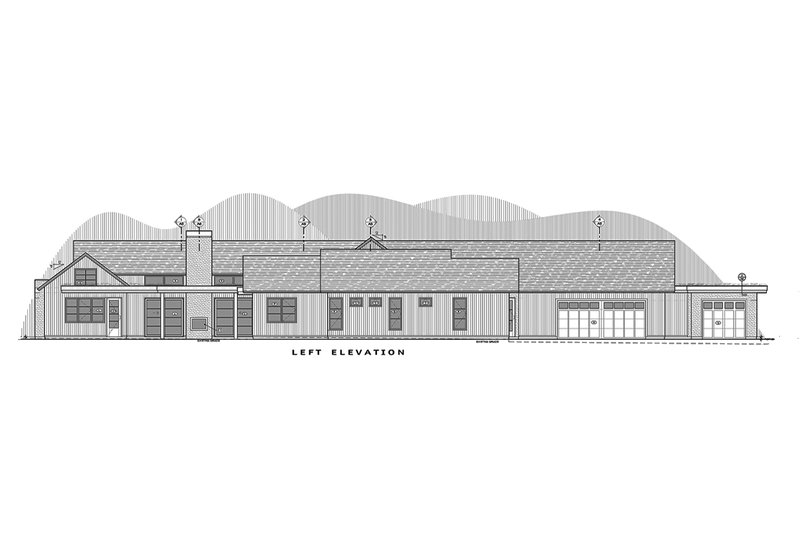

- Exterior Elevations: These plans include 4 elevation drawings showing the front, back and both sides. Exterior materials are called out.
- Building Sections: Perhaps one of the most important pages on any set of plans, the section cuts the house in half and shows details such as wall thickness, roof construction, foundation details, roof pitch, ceiling heights, and insulation.
- Foundation and Main Level Framing: Detailed drawings Including floor framing, location and direction of floor joists, locations of footings, notes related to the foundation and framing.
- Lower Roof and Upper Floor Framing: Detailed drawings Including floor and roof framing and notes related to the upper level and roof construction.
- Detail sheets: Detailed drawings and notes showing typical and specific foundation, wall, roof, and chimney construction.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
