PLAN 1042-15
Key Specs
4118
sq ft
3
Beds
3
Baths
2
Floors
2
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Plan Description

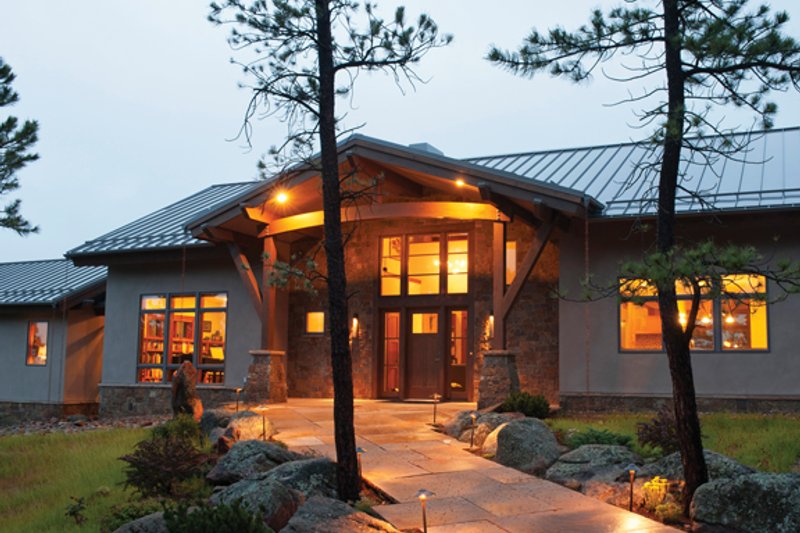

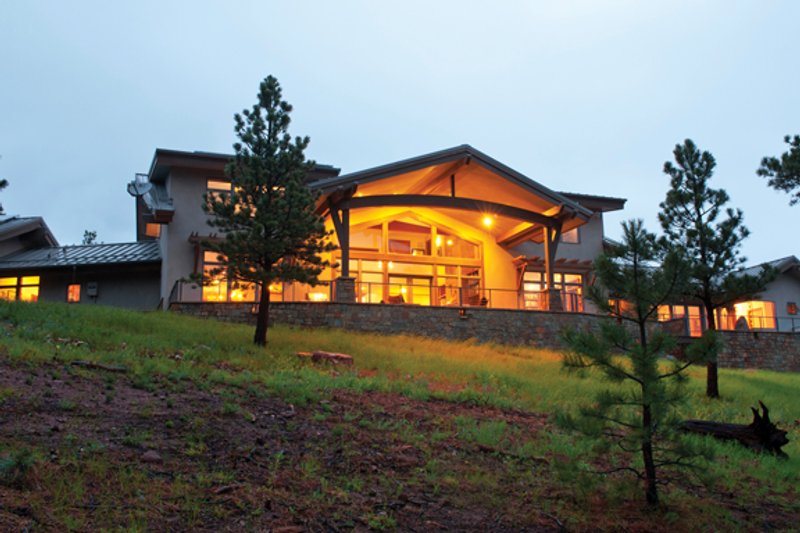

This contemporary Prairie home centers around its dramatic two-story great room, grand covered porch and huge view. The superb layout ideally balances privacy and easy socializing. The home features elegantly simple lines, airy sunlight-filled rooms, fire-resistant low-maintenance construction, "bridges" connecting wings, incredible view windows, a custom hearth, a private master bedroom garden patio, and beautiful finishes throughout. This design incorporates "Universal access" (wheelchair friendly) with a roll-in shower, a step-free garage, three foot wide doors, and all core spaces on the ground floor. This home also includes a bonus "Green Specifications" sheet, which helps the builder to create an energy-efficient, healthy home, and details products, systems, construction techniques and performance standards. The home's green features include passive solar design, an optional solar PV array, an enhanced insulation and window package, water conserving plumbing, efficient lighting and mechanical systems, and resource conserving material selections such as an engineered lumber framing plan.
Full Specs & Features
Height : 27' 6"
Width : 150' 4"
Garage: 624 sq/ft
Second Floor: 1035 sq/ft
Roof Framing : Conventional
Roof Type : Metal
Secondary Pitch : 4:12
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area
Vaulted / Cathedral Ceilings
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Bedroom 2:
width 16' x depth 20'
Bedroom 3:
width 16' x depth 16'
Dining:
width 16' x depth 16'
Garage:
width 25' x depth 23'
Great Room:
width 24' x depth 16'
Kitchen:
width 16' x depth 16'
Library:
width 16' x depth 16'
Master Bedroom:
width 17' x depth 18'
Study:
width 16' x depth 14'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
| PDF Set
: $1400.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
