Key Specs
3810
sq ft
4
Beds
2.5
Baths
2
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 47-776
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

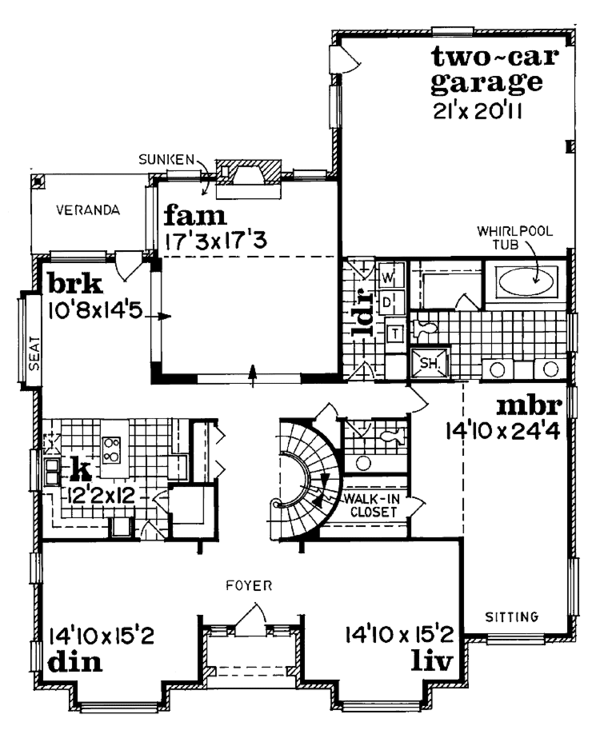

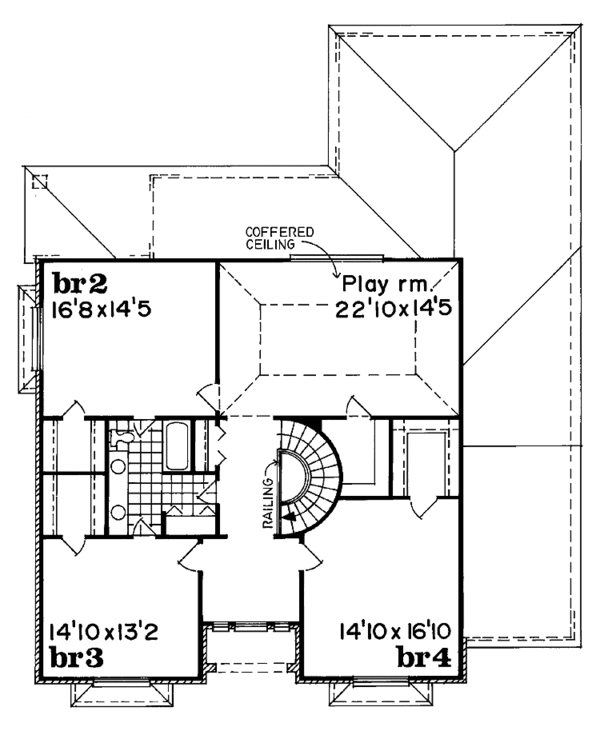

Floor Plans
Full Specs & Features
Dimension
Depth : 65'
Height : 33'
Width : 52'
Area
First Floor: 2177 sq/ft height 9'
Second Floor: 1633 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Living Room / Parlor
Additional Room Features
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
37 sq/ft width 6' x depth 6' 4"
Basement Foundation:
2639 sq/ft width 52' x depth 50' 9"
Bedroom 2:
242 sq/ft width 16' 10" x depth 14' 5"
Bedroom 2 Closet:
30 sq/ft width 6' x depth 5'
Bedroom 3:
195 sq/ft width 14' 10" x depth 13' 2"
Bedroom 3 Closet:
30 sq/ft width 6' x depth 5'
Bedroom 4:
249 sq/ft width 14' 10" x depth 16' 10"
Bedroom 4 Closet:
52 sq/ft width 6' 6" x depth 8'
Breakfast Room:
153 sq/ft width 10' 8" x depth 14' 5"
Crawlspace Foundation:
2639 sq/ft width 52' x depth 50' 9"
Dining Room:
224 sq/ft width 14' 10" x depth 15' 2"
Foyer:
80 sq/ft width 9' 8" x depth 8' 4"
Garage:
440 sq/ft width 21' 1" x depth 20' 11"
Gathering Room:
297 sq/ft width 17' 3" x depth 17' 3"
Hall Bathroom:
122 sq/ft width 10' 6" x depth 11' 8"
Hall Closet:
12 sq/ft width 2' x depth 6'
Kitchen:
146 sq/ft width 12' 2" x depth 12'
Living Room:
224 sq/ft width 14' 10" x depth 15' 2"
Master Bathroom:
159 sq/ft width 14' 10" x depth 10' 9"
Master Bedroom:
360 sq/ft width 14' 10" x depth 24' 4"
Master Closet:
36 sq/ft width 6' 6" x depth 5' 8"
Porch - Front:
31 sq/ft width 8' 8" x depth 3' 8"
Porch - Left:
width 0" x depth 11' 6"
Porch - Rear:
width 11' 6" x depth 0"
Powder Room:
33 sq/ft width 5' 11" x depth 5' 8"
Utility Room:
65 sq/ft width 6' 1" x depth 10' 9"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1119.36
$1224.96
$1330.56
$1330.56
$2238.72
Foundation
$0.00
$0.00
$220.00
$220.00
Framing
$0.00
Additional Options
$156.00
$48.00
$396.00
$120.00
$316.00
$31.20
$120.00
$68.00
$0.00
$796.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
