Full Specs & Features
Depth : 83'
Height : 30'
Width : 62' 8"
Bonus: 530 sq/ft

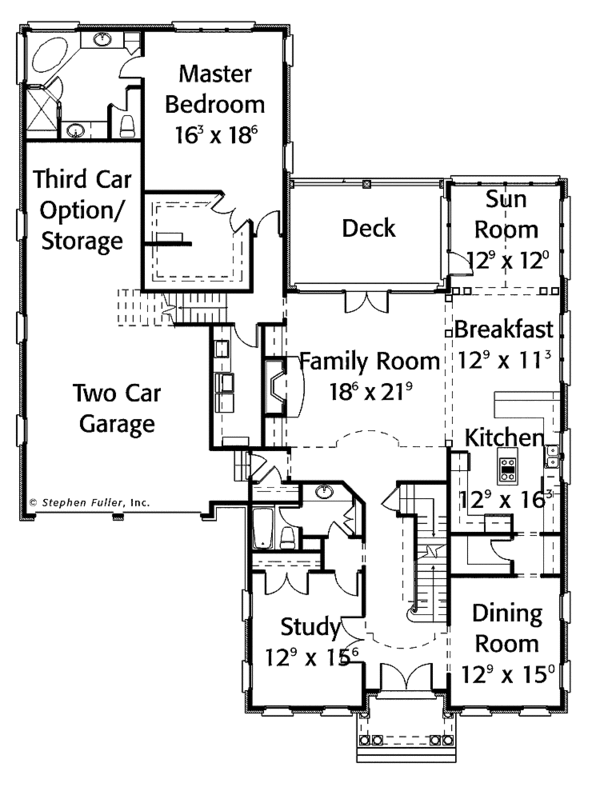

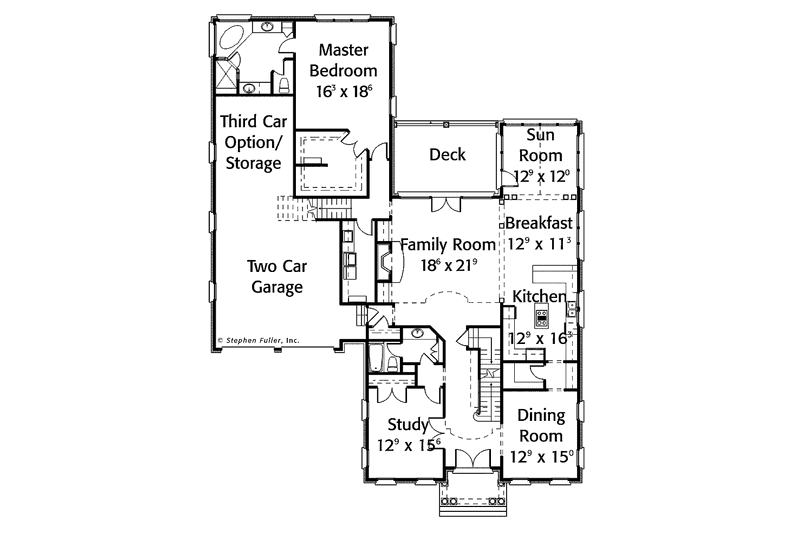

First Floor: 2719 sq/ft height 10'

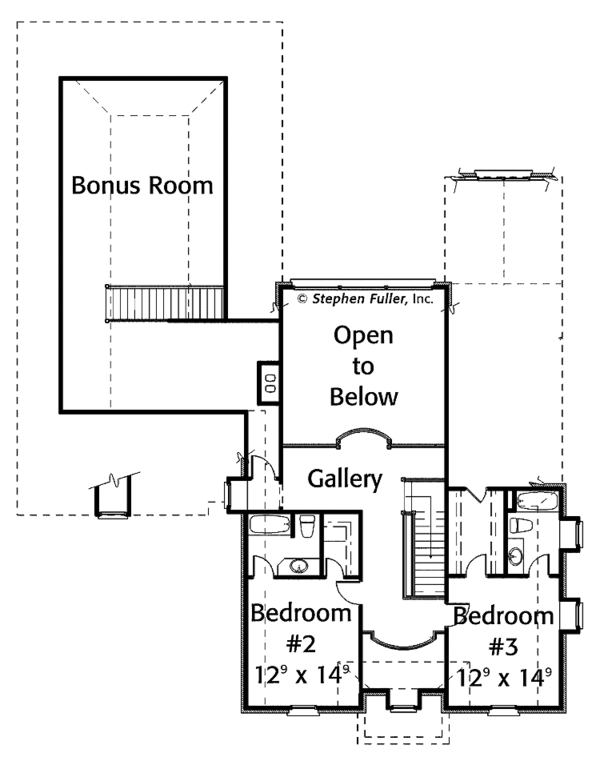

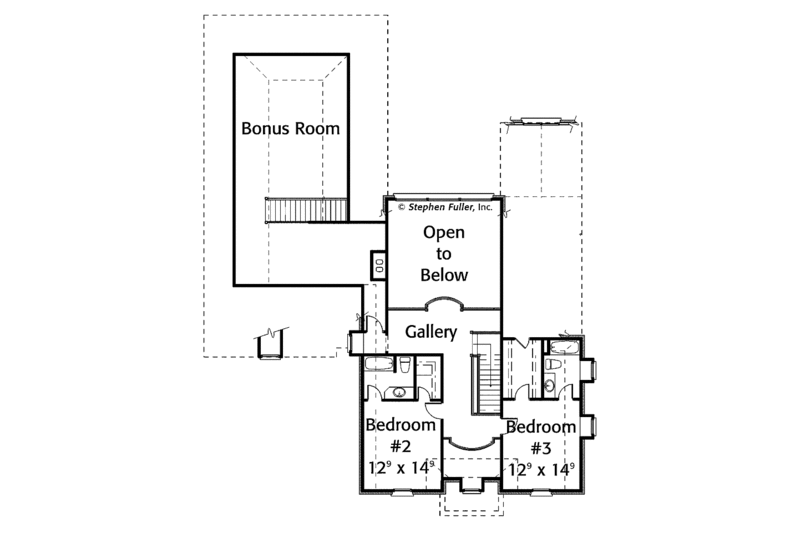

Second Floor: 929 sq/ft
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Covered Front Porch
Bonus Room - Finished:
528 sq/ft width 19' x depth 27' 10"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

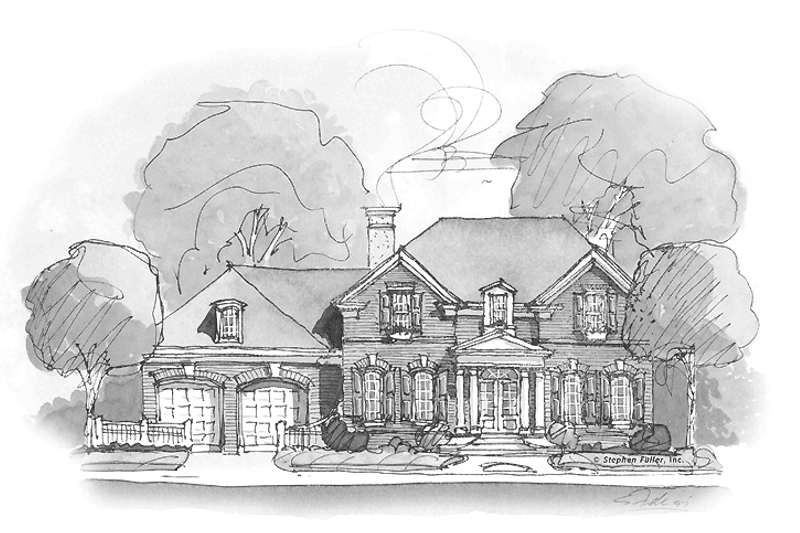

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
