15% OFF THIS PLAN TODAY

PLAN 54-317

Photographs may show modified designs.

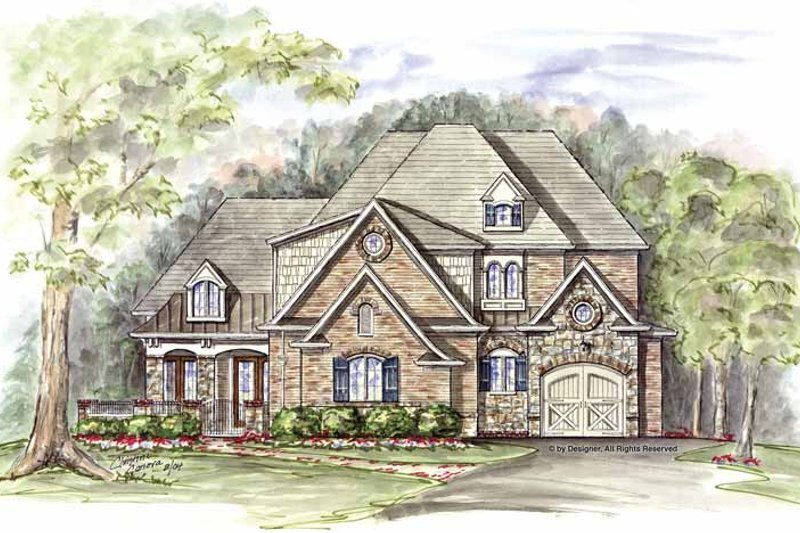

Architectural House Design - Traditional Exterior - Front Elevation Plan #54-317

Architectural House Design - Traditional Floor Plan - Main Floor Plan #54-317

Architectural House Design - Traditional Floor Plan - Upper Floor Plan #54-317

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Traditional House Plans

Key Specs

3537
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$212.50
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Audio Video Design	$140.25
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$335.75
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$140.25
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $1504.50

You save $265.50 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 54-317

Home > Style > Traditional House Plans

Key Specs

3537
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 3537 sq ft and has 4 bedrooms and 3.5 bathrooms.

Floor Plans

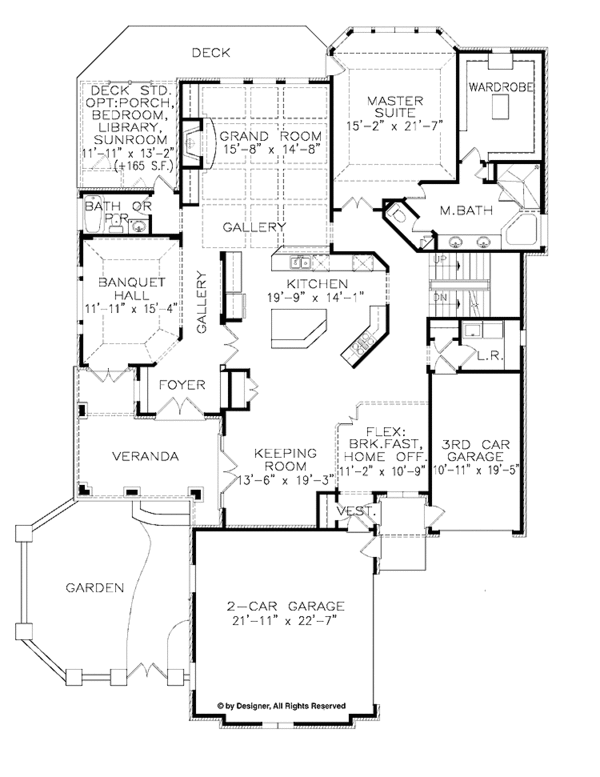

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

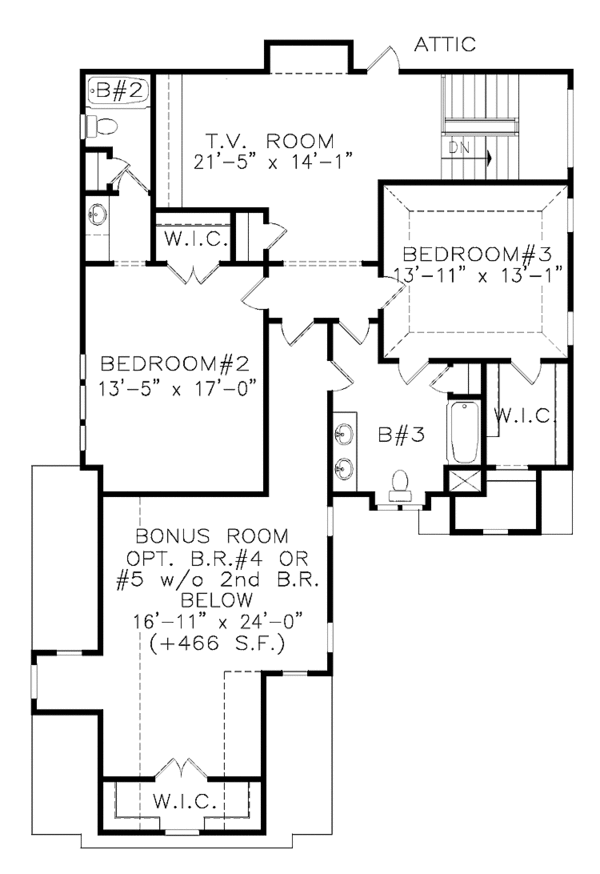

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 85' 3"

Height : 33' 1"

Width : 63' 3"

Area

Bonus: 466 sq/ft

First Floor: 2437 sq/ft

Garage: 531 sq/ft

Second Floor: 1100 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone

Framing : Wood - 2x4

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Main Floor Laundry

Unfinished Future Space

Outdoor Spaces

Deck

Rooms

Bedroom 2:

228 sq/ft width 13' 5" x depth 17'

Bedroom 3:

182 sq/ft width 13' 11" x depth 13' 1"

Bonus Room - Finished:

406 sq/ft width 16' 11" x depth 24'

Breakfast:

120 sq/ft width 11' 2" x depth 10' 9"

Garage:

494 sq/ft width 21' 11" x depth 22' 7"

Garage Two:

211 sq/ft width 10' 11" x depth 19' 5"

Grand Room:

229 sq/ft width 15' 8" x depth 14' 8"

Keeping Room:

259 sq/ft width 13' 6" x depth 19' 3"

Kitchen:

278 sq/ft width 19' 9" x depth 14' 1"

Master Suite:

327 sq/ft width 15' 2" x depth 21' 7"

TV Room/Bedroom:

301 sq/ft width 21' 5" x depth 14' 1"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$1504.50

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$2397.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

CAD and PDF Set:
$2477.75

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$297.50

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$297.50

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$297.50

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$212.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$335.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
