Key Specs
3491
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 429-417
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

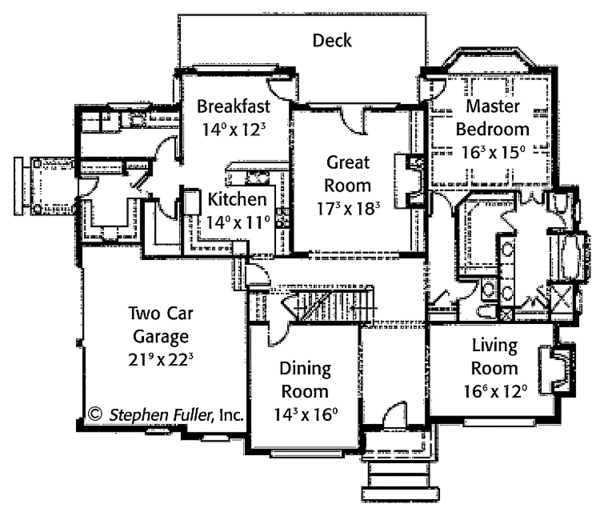

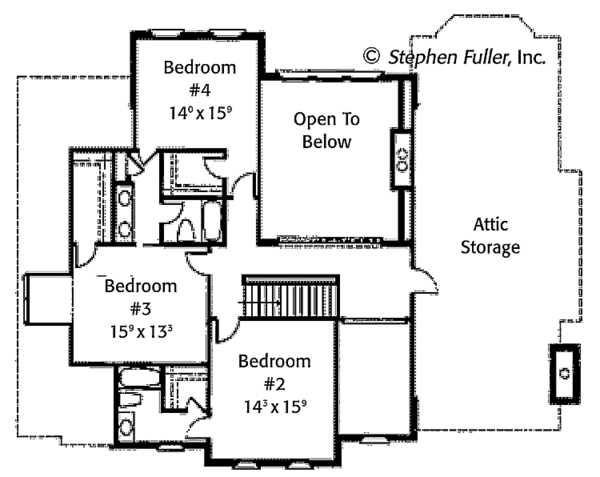

Floor Plans
Full Specs & Features
Dimension
Depth : 52'
Height : 31'
Width : 67'
Area
First Floor: 2314 sq/ft height 9'
Second Floor: 1177 sq/ft height 8'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces
Deck
More
Jack & Jill Bath
Rooms
Bathroom 2:
87 sq/ft width 10' 3" x depth 8' 6"
Bathroom 3:
82 sq/ft width 12' 3" x depth 6' 9"
Bedroom 2:
254 sq/ft width 14' 9" x depth 17' 3"
Bedroom 2 Closet:
28 sq/ft width 5' 6" x depth 5' 3"
Bedroom 3:
274 sq/ft width 20' 9" x depth 13' 3"
Bedroom 3 Closet:
51 sq/ft width 5' 3" x depth 9' 9"
Bedroom 4:
203 sq/ft width 14' 3" x depth 14' 3"
Bedroom 4 Closet:
29 sq/ft width 6' 3" x depth 4' 9"
Breakfast Room:
156 sq/ft width 14' 3" x depth 11'
Butler's Pantry:
8 sq/ft width 2' 3" x depth 3' 9"
Coat Closet:
8 sq/ft width 3' 9" x depth 2' 3"
Deck:
320 sq/ft width 32' x depth 10'
Dining Room:
254 sq/ft width 14' 9" x depth 17' 3"
Foyer:
146 sq/ft width 8' 9" x depth 16' 9"
Garage:
483 sq/ft width 22' 3" x depth 21' 9"
Garage Storage:
18 sq/ft width 8' 3" x depth 2' 3"
Kitchen:
181 sq/ft width 14' 3" x depth 12' 9"
Laundry Room:
82 sq/ft width 13' 3" x depth 6' 3"
Linen Closet:
8 sq/ft width 4' 9" x depth 1' 9"
Living Room:
231 sq/ft width 16' 3" x depth 14' 3"
Master Bathroom:
184 sq/ft width 11' x depth 16' 9"
Master Bedroom:
297 sq/ft width 17' 3" x depth 17' 3"
Master Closet:
77 sq/ft width 7' 3" x depth 10' 9"
Pantry:
38 sq/ft width 5' 3" x depth 7' 3"
Powder Room:
30 sq/ft width 5' 3" x depth 5' 9"
