PLAN 1084-11
3340
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 52'
Height : 18'
Width : 82'
Area
Garage : 1440 sq/ft
Main Floor : 2184 sq/ft
Porch : 1334 sq/ft
Upper Floor : 1156 sq/ft
Ceiling
Garage Ceiling : 18'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Roof Framing : Pre-engineered steel frame per manufacturer
Roof Load : Per Local Code requirements
Roof Type : Pre-engineered steel frame per manufacturer
Exterior Wall Framing
Exterior Wall Finish : Per Owner/Builder
Framing : Pre-engineered Steel Frame per manufacturer w/2x framing inside
Insulation : Per Owner/Builder
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Storage Area
Garage Features
Carport Porte Cochere
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Wrap Around Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

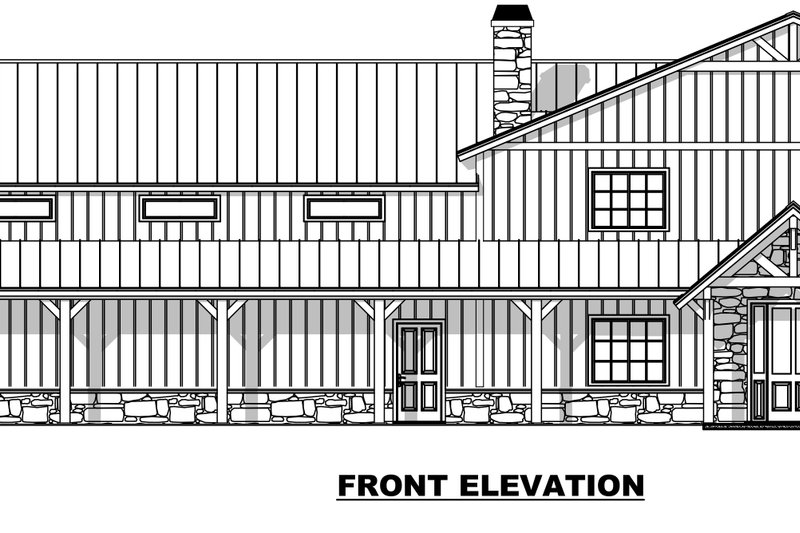

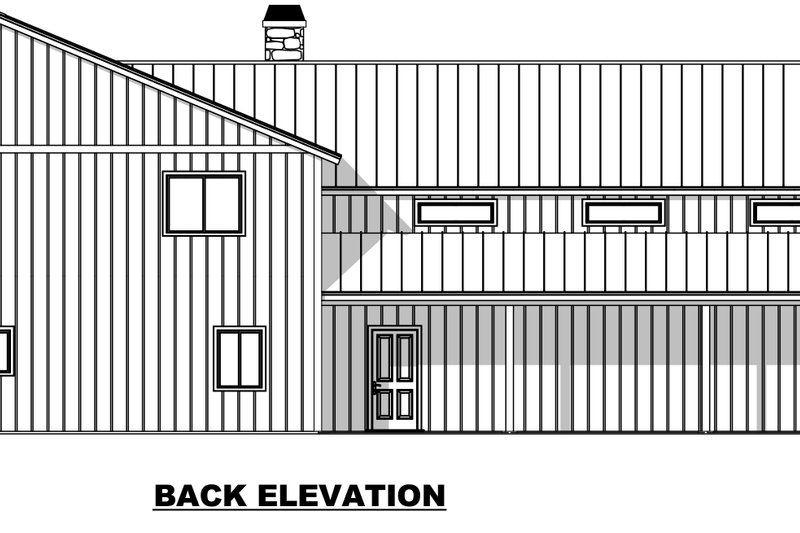

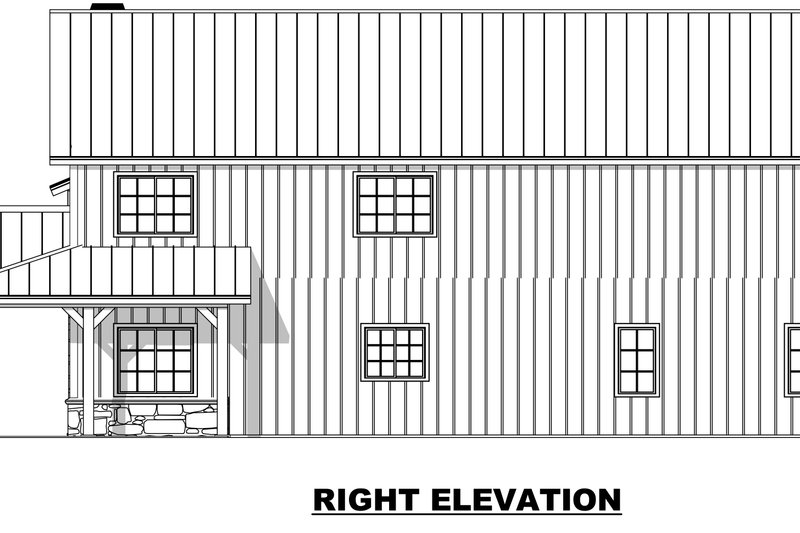

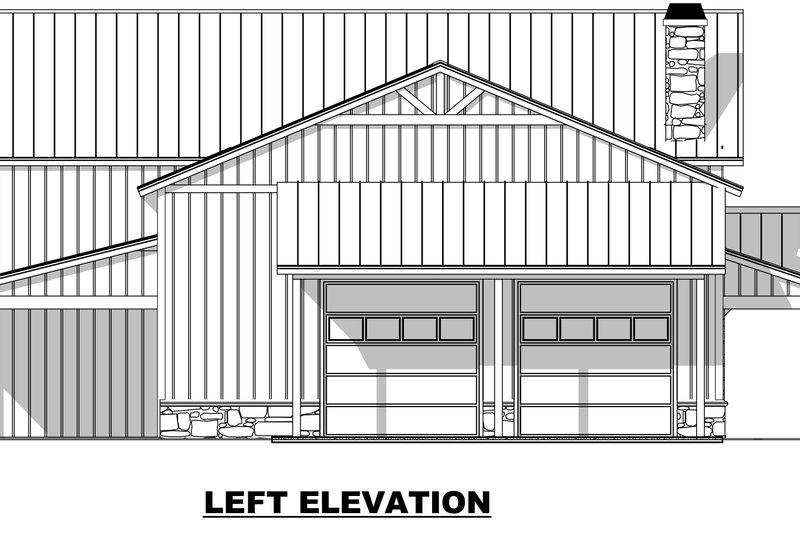

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

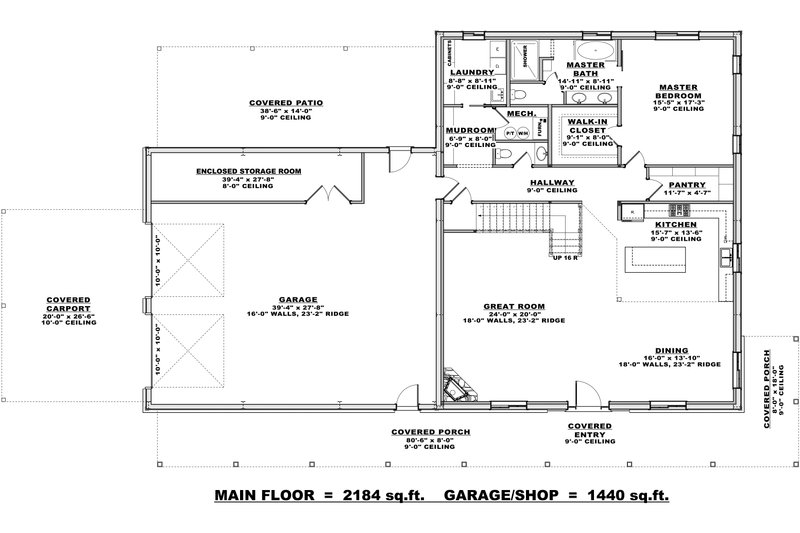

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1349.00
$1349.00
$1649.00
Foundation
$0.00
Framing
$0.00
Additional Options
$250.00
$165.00
$395.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
