PLAN 1084-10
1986
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 40'
Height : 18'
Width : 60'
Area
Garage : 1408 sq/ft
Main Floor : 992 sq/ft
Porch : 592 sq/ft
Upper Floor : 994 sq/ft
Ceiling
Bonus Ceiling : 0"
Garage Ceiling : 18'
Lower Ceiling : 0"
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 4/12
Roof Framing : Pre-engineered Wood Truss
Roof Load : Per Local Code
Roof Type : Pre-engineered Wood Truss
Secondary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : Per Owner/Builder
Framing : 2x6 Wood Framing
Insulation : Per Local Code
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Oversized Garage
RV Garage
Rear Entry Garage
Rear Garage
Outdoor Spaces
Covered Front Porch
Wrap Around Porch
More
Additional Half Bath
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

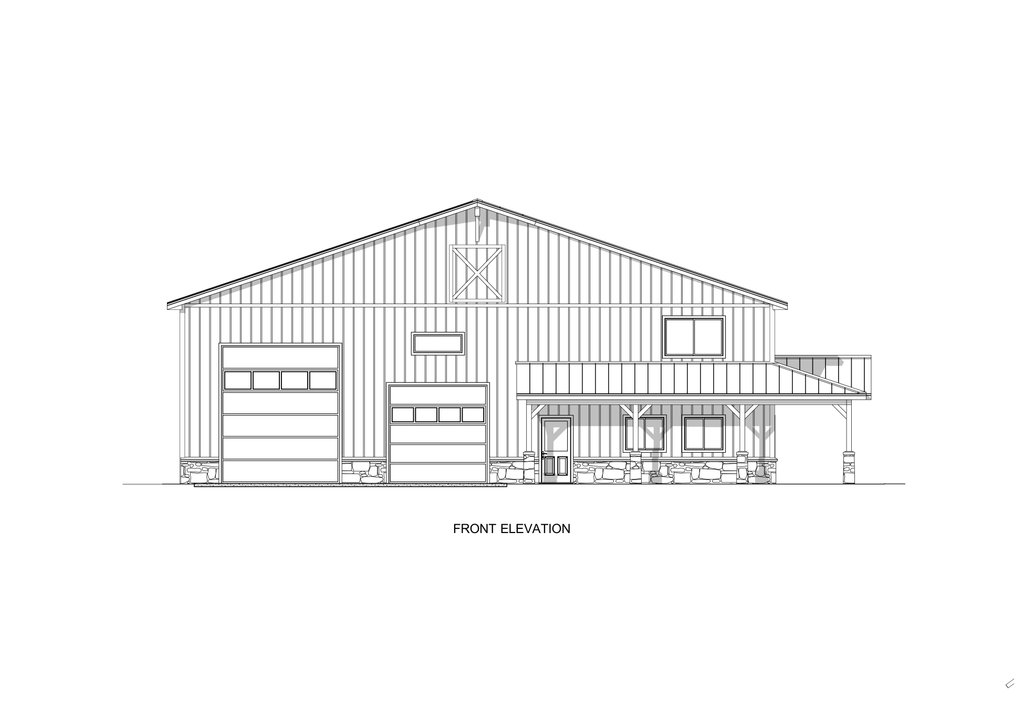

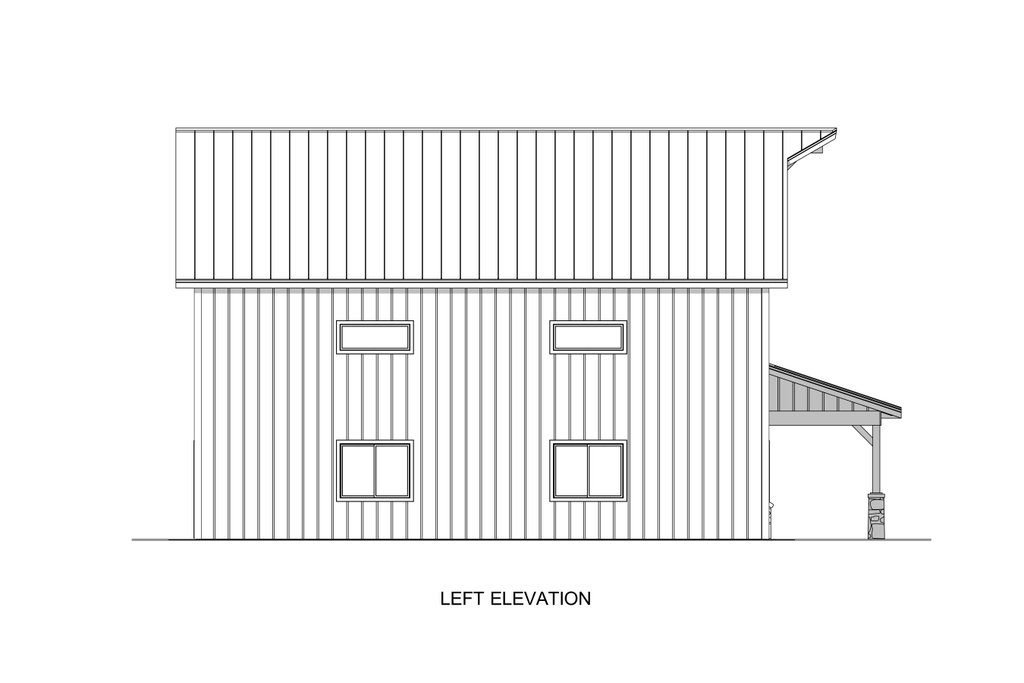

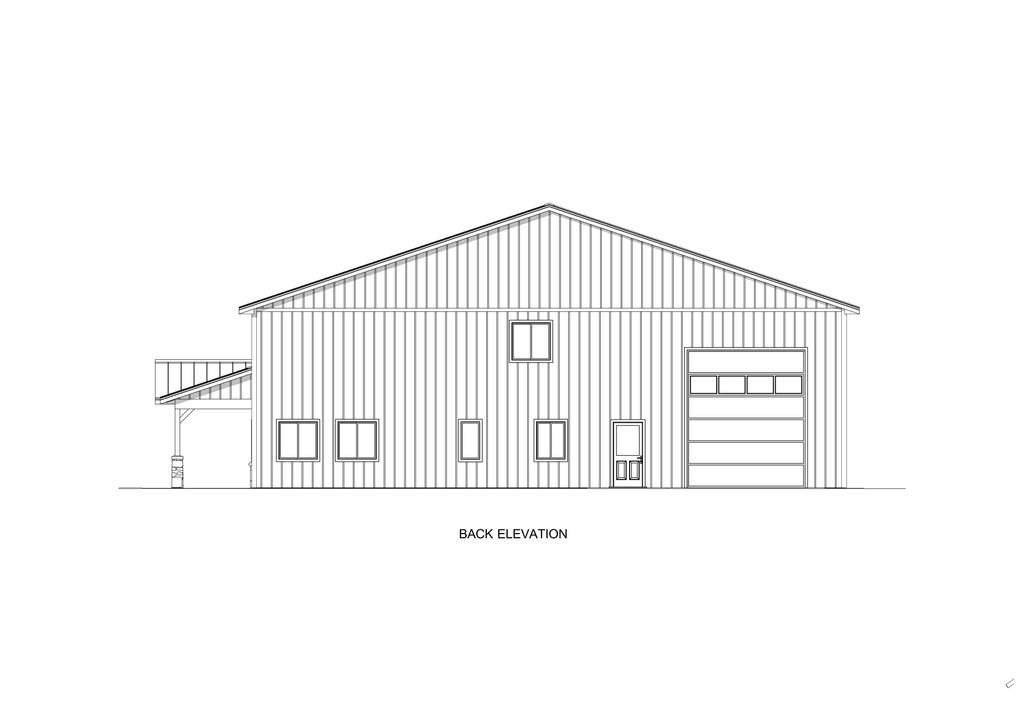

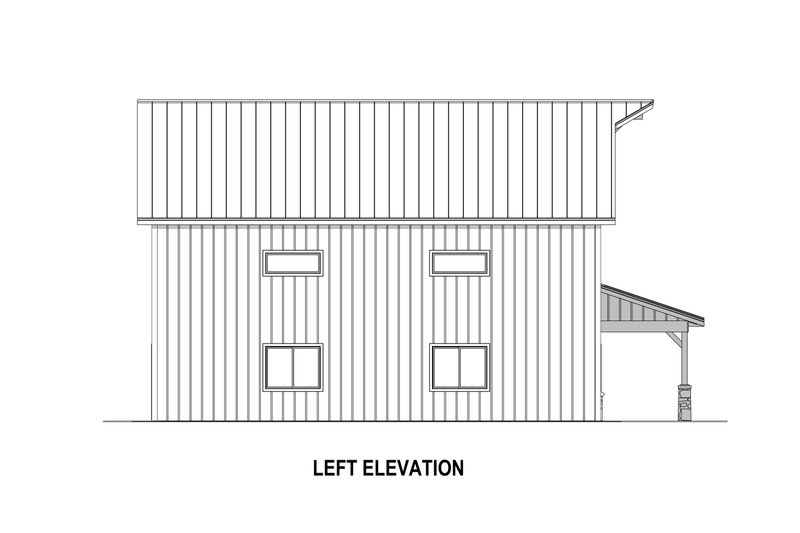

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

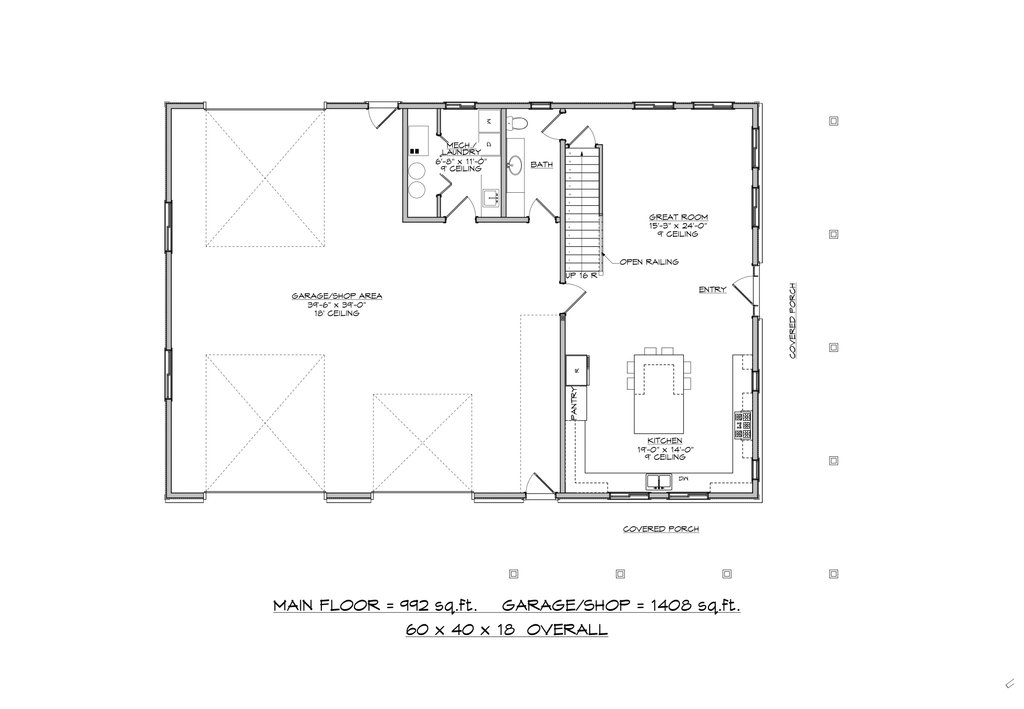

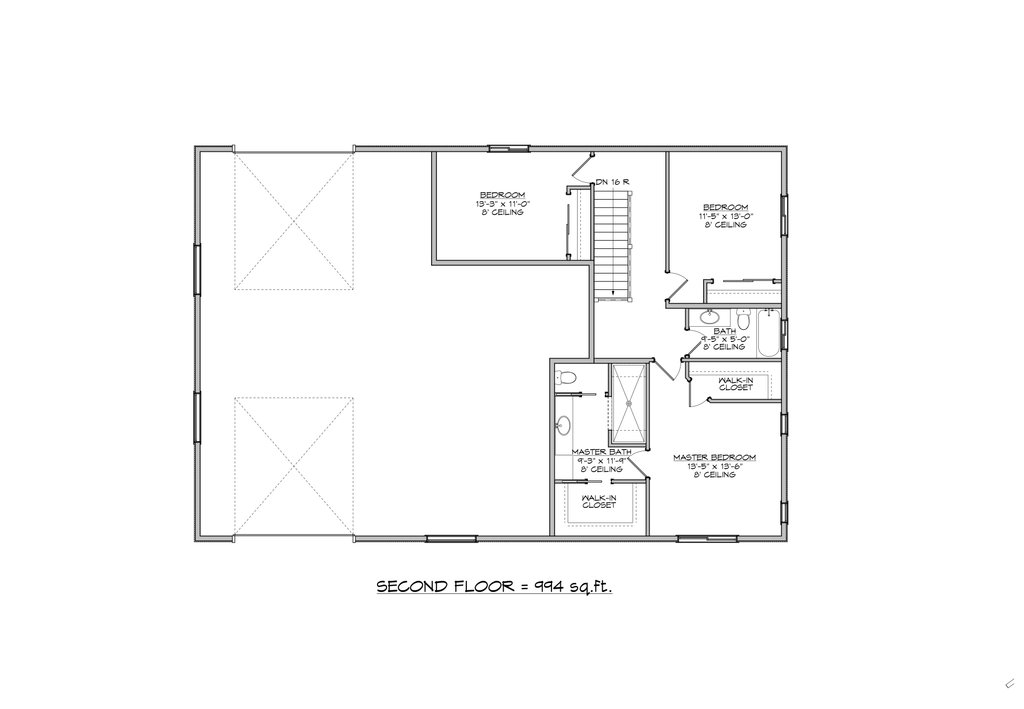

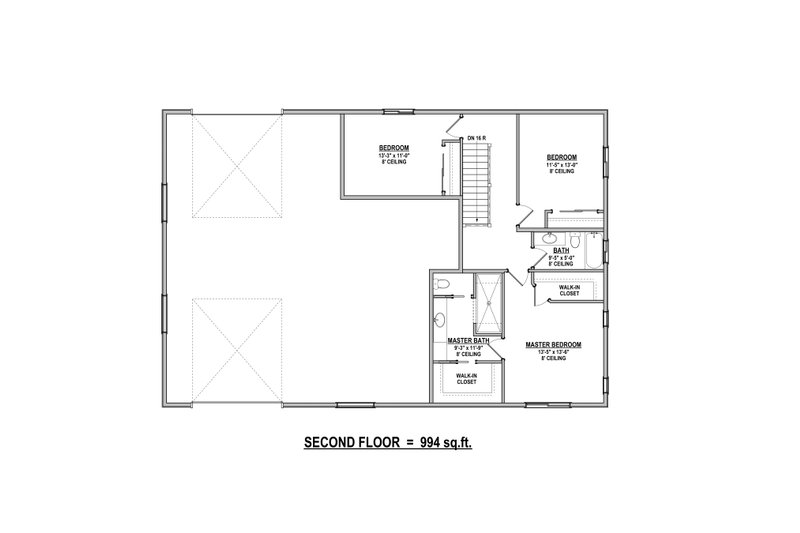

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1149.00
$1149.00
$1449.00
Foundation
$0.00
Framing
$0.00
Additional Options
$250.00
$165.00
$295.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
