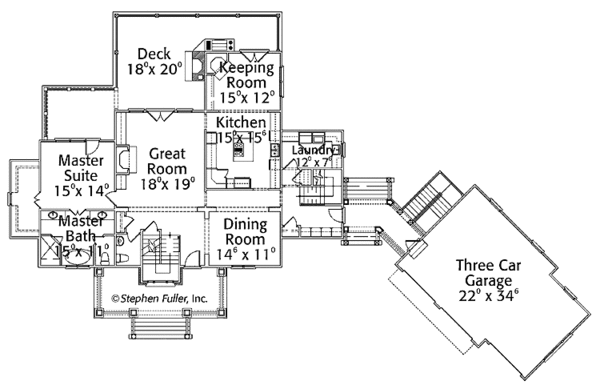

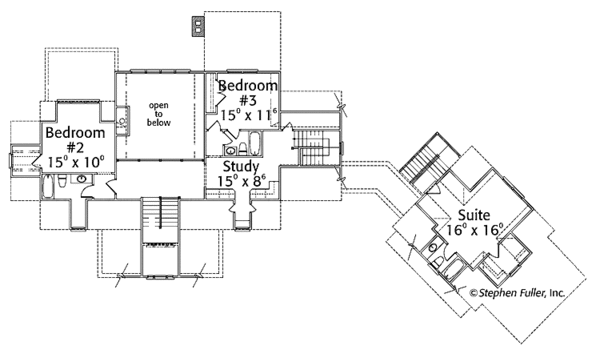

This Craftsman is at home in any location. Notice how the contrasting light and dark tones blend with the surroundings, while vertical siding and columns create height. The entry leads to the great room, with the dining room on the right and stairs on the left. Counters and cabinets border the kitchen walls and surround the working island. A pass-through divides the adjacent keeping room, which--along with the great room--accesses the deck with fireplace and built-in grill. The master suite offers its own deck access and amenities: the bath includes twin vanity sinks and separate shower and spa tub, the walk-in closet stores clothes for every season. Venture upstairs from the foyer, where each of two bedrooms directly accesses a full bath; one shares with the study. Go downstairs near the laundry room, cross the breezeway, and use the exterior stairs to reach the private suite above the garage.
150 sq/ft width 15' x depth 10'
172 sq/ft width 15' x depth 11' 6"
Bonus Room - Unfinished:
256 sq/ft width 16' x depth 16'
360 sq/ft width 18' x depth 20'
159 sq/ft width 14' 6" x depth 11'
855 sq/ft width 36' x depth 23' 9"
342 sq/ft width 18' x depth 19'
180 sq/ft width 15' x depth 12'
232 sq/ft width 15' x depth 15' 6"
90 sq/ft width 12' x depth 7' 6"
165 sq/ft width 15' x depth 11'
210 sq/ft width 15' x depth 14'
127 sq/ft width 15' x depth 8' 6"
All plans are drawn at ¼” scale or larger and include :
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|One printed set for bidding purposes only. Not a legal building set for construction.|
|Ideal for sloping lot, lower level of home partially underground.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
