PLAN 429-412

Photographs may show modified designs.

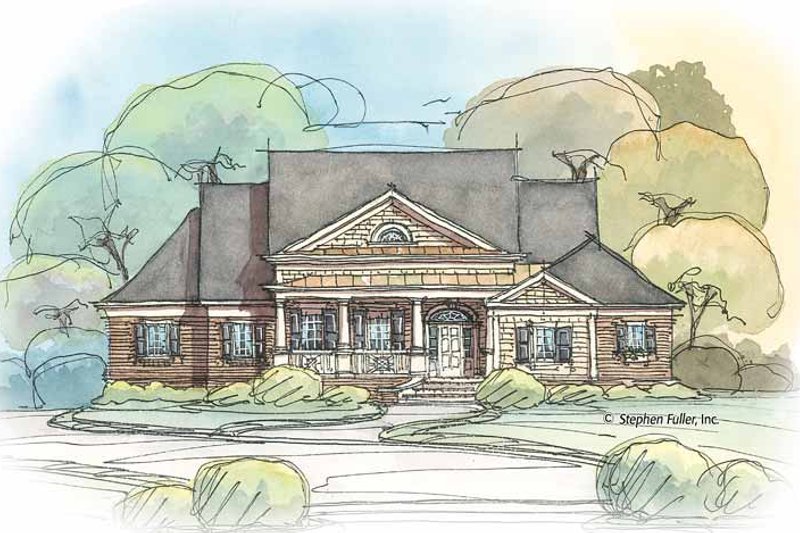

Architectural House Design - Colonial Exterior - Front Elevation Plan #429-412

Architectural House Design - Colonial Floor Plan - Main Floor Plan #429-412

Architectural House Design - Colonial Floor Plan - Upper Floor Plan #429-412

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Colonial House Plans

Key Specs

3232
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$65.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$85.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$900.00

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 429-412

Home > Style > Colonial House Plans

Key Specs

3232
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Stately and charming, this home embraces visitors with a welcoming pediment entry and front porch. Inside the foyer leads to a cozy great room warmed by a fireplace and French doors to the rear covered porch. The kitchen boasts a center island and breakfast bar opening to the keeping/breakfast room. This room is flooded with light and features a sloped ceiling and a fireplace outlined by built-in cabinetry. The master bedroom, occupying the right wing of the home, is dinstinguished by a tray ceiling, dual vanities, garden tub and his-and-her walk-in closets. Two additional bedrooms complete the main level, each with private baths and walk-in closets.

Floor Plans

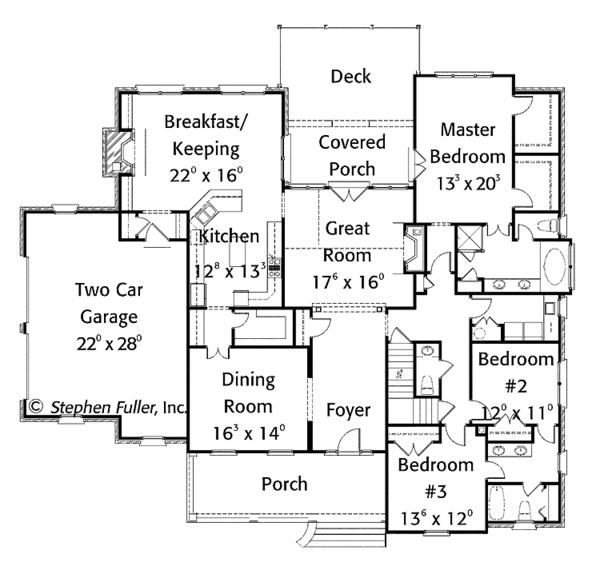

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

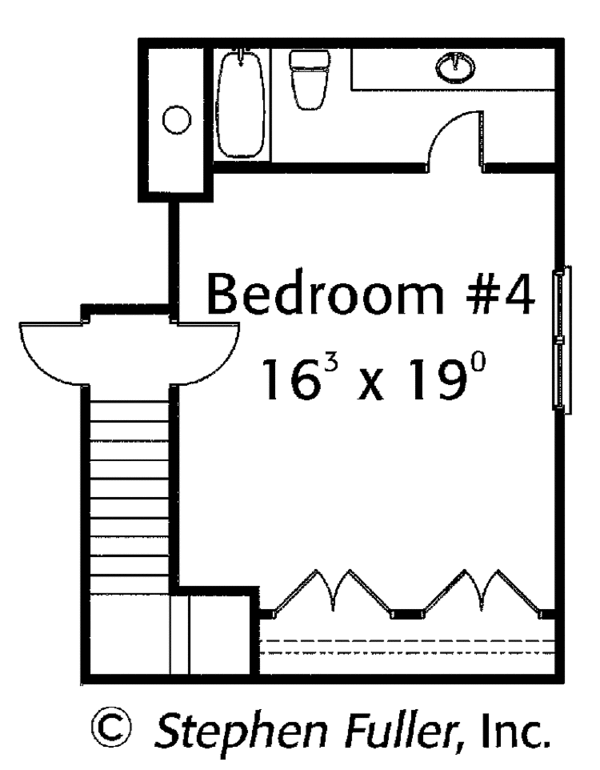

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 63'

Height : 27' 6"

Width : 75'

Area

First Floor: 2785 sq/ft height 9'

Second Floor: 447 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle

Framing : Wood - 2x4

Bedroom Features

Formal Dining Room

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Butler's Pantry

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Vaulted / Cathedral Ceilings

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Deck

Jack & Jill Bath

Rooms

Bathroom 2:

56 sq/ft width 9' 9" x depth 5' 9"

Bathroom 3:

80 sq/ft width 15' 3" x depth 5' 3"

Bedroom 2:

132 sq/ft width 12' x depth 11'

Bedroom 2 Closet:

14 sq/ft width 6' 3" x depth 2' 3"

Bedroom 3:

162 sq/ft width 13' 6" x depth 12'

Bedroom 3 Closet:

16 sq/ft width 7' 3" x depth 2' 3"

Bedroom 4:

308 sq/ft width 16' 3" x depth 19'

Bedroom 4 Closet:

10 sq/ft width 3' 3" x depth 3' 3"

Breakfast Room:

352 sq/ft width 22' x depth 16'

Butler's Pantry:

11 sq/ft width 2' 3" x depth 5' 3"

Coat Closet:

10 sq/ft width 2' 3" x depth 4' 6"

Covered Porch:

161 sq/ft width 17' 6" x depth 9' 3"

Dining Room:

227 sq/ft width 16' 3" x depth 14'

Foyer:

205 sq/ft width 10' 3" x depth 20'

Garage:

616 sq/ft width 22' x depth 28'

Great Room:

280 sq/ft width 17' 6" x depth 16'

Keeping Room:

94 sq/ft width 8' x depth 11' 9"

Kitchen:

167 sq/ft width 12' 8" x depth 13' 3"

Laundry Room:

82 sq/ft width 12' 3" x depth 6' 9"

Linen Closet:

7 sq/ft width 3' 6" x depth 2' 3"

Master Bathroom:

182 sq/ft width 16' 3" x depth 11' 3"

Master Bedroom:

268 sq/ft width 13' 3" x depth 20' 3"

Master Closet:

48 sq/ft width 6' 3" x depth 7' 9"

Master Closet Two:

53 sq/ft width 6' 3" x depth 8' 6"

Pantry:

43 sq/ft width 8' 3" x depth 5' 3"

Porch - Front:

303 sq/ft width 27' x depth 11' 3"

Powder Room:

44 sq/ft width 5' 9" x depth 7' 9"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-222-1762

Plan Set

5 Copy Set:
$900.00

5 printed plan sets mailed to you.

8 Copy Set:
$1000.00

8 printed plan sets mailed to you.

PDF Set:
$1250.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1250.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Single Set:
$800.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Additional Options

Additional Construction Sets:
$65.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$85.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
