PLAN 27-501

Key Specs

3231
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This Olde Florida, coastal style house plan offer traditional elements with unique features. With a modest square footage, there are 3 bedrooms and 3 full baths, a formal study and home office, a large great room open all the living areas of the home and a beautiful outdoor living space with a fireplace and high vaulted ceilings! Take advantage of entertaining year round with this house plan, perfect for any coastal or intracoastal lot. Please note, the plan will need to be engineered by local engineering company and truss drawings must be done as well for most locations. This includes all of Florida. Can only be built in the Florida counties of Collier and Lee with written consent of the designer.

Floor Plans

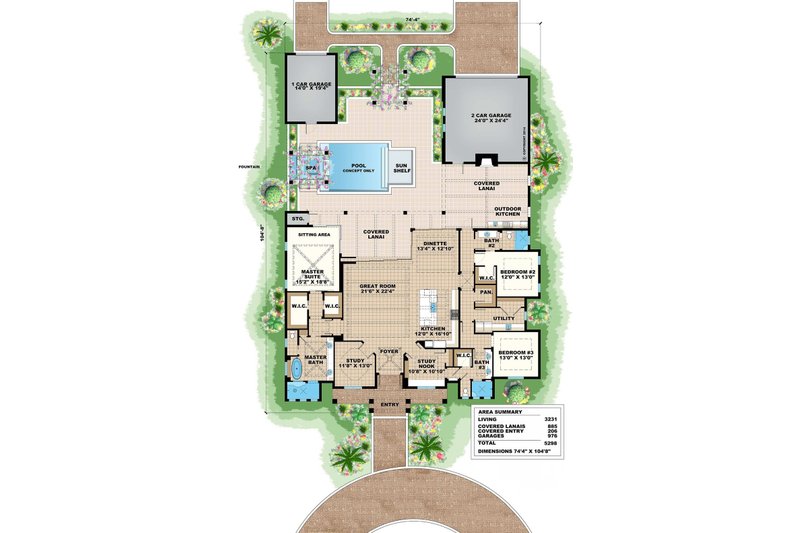

Floor Plan - Main Floor Plan

Reverse

Southern Floor Plan - Main Floor Plan Plan #27-501

Full Specs & Features

Dimension

Depth : 104' 8"
Height : 30'
Width : 74' 4"

Area

First Floor: 2548 sq/ft
Garage: 555 sq/ft
Porch: 449 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vault, Coffer, FLat
Main Ceiling : 12'

Roof

Primary Pitch : 8:12
Roof Framing : Mfg Trusses
Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Hardie Board Siding
Framing : CMU

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Additional Room Features

Den Office Study Computer
Great Room Living Room

Garage Features

Detached Garage
Rear Entry Garage
Split Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill

Empty Nester
Jack & Jill Bath
Suited For Vacation Home
Wheelchair Adaptable

What's Included In This Plan Set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Material Labels
Foor-to-Floor Heights
Roof Slope Indicators

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous General Notes
Stairway details (if applicable)

Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

» See important information before purchasing.

Plan Set

CAD Set : $1930.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set : $1930.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1930.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $200.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $350.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
