PLAN 54-205

Home > Style > Craftsman

Key Specs

3090
sq ft

3
Beds

2.5
Baths

1
Floors

5
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

An eye-catching shed dormer is both lovely and functional, bringing light into the foyer. A mud room is the perfect casual entry off the garage, right next to the main-level laundry and optional third-car garage. The open kitchen works with the keeping, breakfast, and grand rooms. A study--or living room--and formal dining room flank the foyer for entertaining guests.

Floor Plans

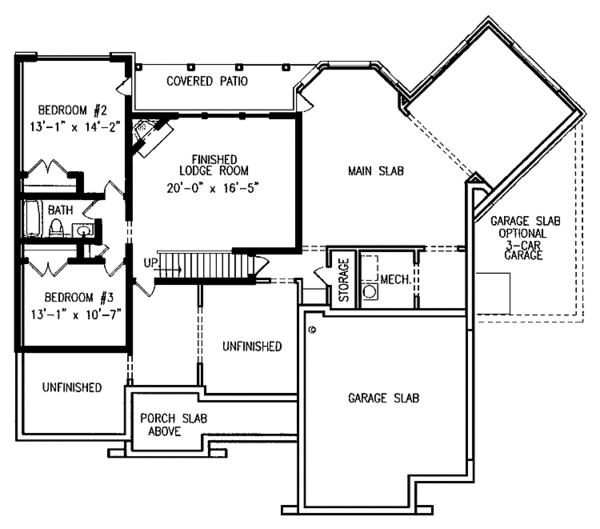

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

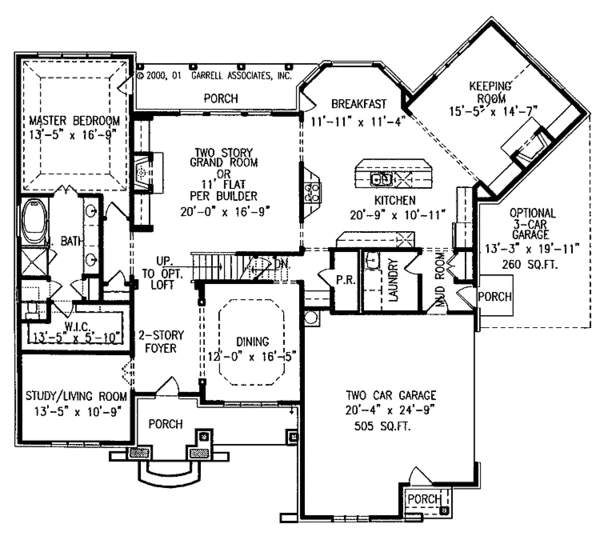

Floor Plan - Main Floor

Reverse

Full Specs & Features

Dimension

Depth : 60' 11"

Height : 27'

Width : 68' 3"

Area

Basement Living: 919 sq/ft

First Floor: 2171 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Main Floor Master Bedroom

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Den Office Study Computer

Main Floor Laundry

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

185 sq/ft width 13' 1" x depth 14' 2"

Bedroom 3:

138 sq/ft width 13' 1" x depth 10' 7"

Breakfast Room:

328 sq/ft width 20' x depth 16' 5"

Den/Office or Bedroom 1:

197 sq/ft width 12' x depth 16' 5"

Dining Room:

197 sq/ft width 12' x depth 16' 5"

Garage:

263 sq/ft width 13' 3" x depth 19' 11"

Grand Room:

335 sq/ft width 20' x depth 16' 9"

Keeping Room:

224 sq/ft width 15' 5" x depth 14' 7"

Kitchen:

226 sq/ft width 20' 9" x depth 10' 11"

Master Bedroom:

224 sq/ft width 13' 5" x depth 16' 9"

Study:

144 sq/ft width 13' 5" x depth 10' 9"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$1050.60

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$1858.10

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

CAD and PDF Set:
$1938.85

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Crawlspace:
$297.50

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$297.50

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$297.50

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$212.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$59.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$335.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$46.75

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
