PLAN 23-2242

Architectural House Design - Mediterranean Exterior - Rear Elevation Plan #23-2242

Architectural House Design - Mediterranean Floor Plan - Main Floor Plan #23-2242

Architectural House Design - Mediterranean Floor Plan - Upper Floor Plan #23-2242

Key Specs

2849
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

	Right-Reading Reverse $127.50 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $42.50/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $85.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $33.15 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $85.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $1402.50

You save $247.50

(15% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 23-2242

Key Specs

2849
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Floor Plans

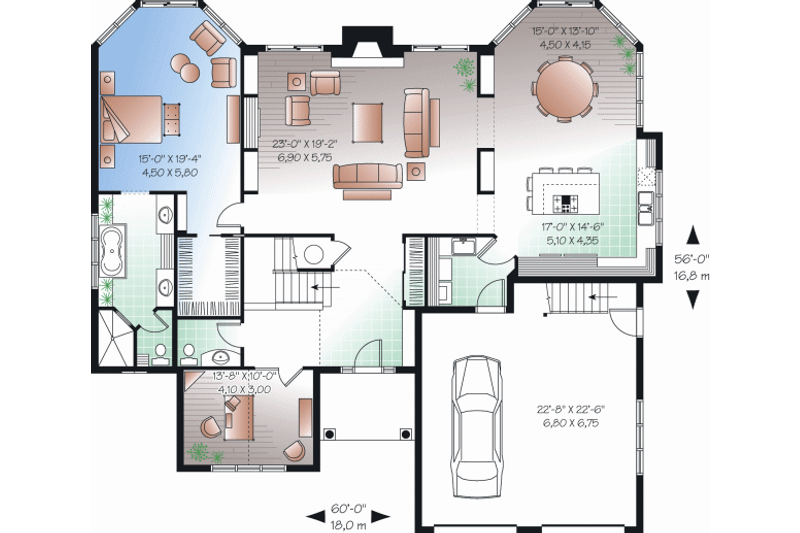

Floor Plan - Main Floor

Reverse

Builder Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

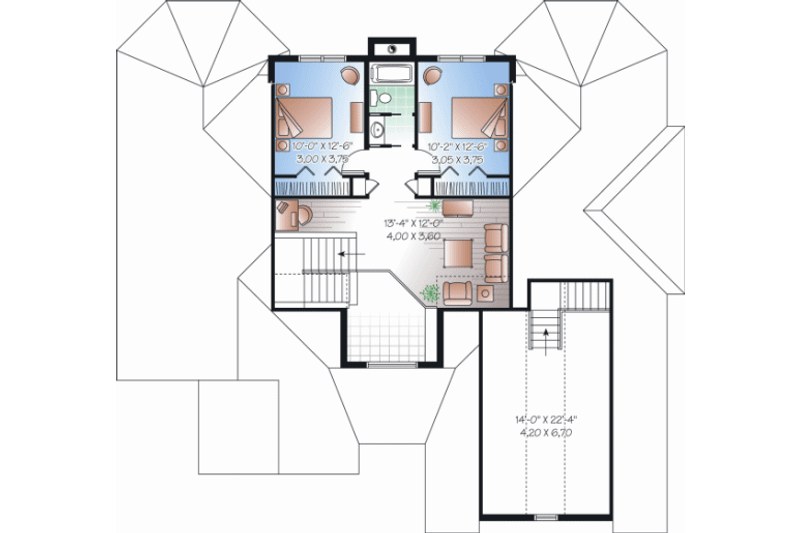

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 56'
Height : 26'
Width : 60'

Area

Bonus: 373 sq/ft
First Floor: 2106 sq/ft height 9'
Garage: 595 sq/ft
Second Floor: 743 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : 2"x6"

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar

Additional Room Features

Den Office Study Computer
Loft
Play Flex Room
Storage Area

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Balcony
Covered Front Porch

Rooms

Bedroom 1:

125 sq/ft width 10' x depth 12' 6"

Bedroom 2:

127 sq/ft width 10' 2" x depth 12' 6"

Bonus Room - Unfinished:

312 sq/ft width 14' x depth 22' 4"

Breakfast Area:

207 sq/ft width 15' x depth 13' 10"

Garage:

510 sq/ft width 22' 8" x depth 22' 6"

Gathering Room:

440 sq/ft width 23' x depth 19' 2"

Kitchen:

246 sq/ft width 17' x depth 14' 6"

Loft:

159 sq/ft width 13' 4" x depth 12'

Master Bedroom:

289 sq/ft width 15' x depth 19' 4"

Office:

136 sq/ft width 13' 8" x depth 10'

What's Included In This Plan Set

See a sample plan set

Floor and ceiling heights
Dimensions of standard windows
Dimensions of roof overhangs
Location of all needed flashings (mention of “typical” in most cases)
Height and location of foundation indicated in dashed lines
Type of finishing and textures (we write siding, horizontal or vertical but not the company)
Dimension and height of chimney (dimensions yes but the height is determined by the local building code)

All exterior and interior dimensions
Thickness of foundation walls (if variable)
All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
Location of stairwell
Location and sizes of windows
Location and dimensions of footings (where applicable and required)

All interior and exterior dimensions (included but not as a schedule)
Location and sizes of doors and windows
Indication of the structure above (second floor or roof)
Indication of details that are available on other pages

Location of all the different trusses needed
The general overcharge of the roof compared to the floor footprint underneath

All the different floor and ceiling heights
Dimensions and design of trusses
Dimensions and details of overhand
Roof pitch on all truss sections

Roof sections
Sections of concrete wall with wood connection
Section of walls with particulars called out
Section of concrete porch and connection with wood frame
Foundation particulars in the garage entrance
Components of certain types of walls (ex: between garage and living quarters)

All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
Note: This plan does not include HVAC, electrical and plumbing.

» See important information before purchasing.

Questions? Call 1-877-222-1762

Plan Set

PDF Set : $1402.50	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set : $1508.75	5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1508.75	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $1912.50	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Monolithic Slab: $0.00	A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Crawlspace: $263.50	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Floating Slab: $263.50	A concrete slab that covers the ground with no anchoring, it simply floats. Typical for garages and workshop plans.

Additional Options

Right-Reading Reverse : $127.50	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $42.50	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $85.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $33.15	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $85.00	Receive an overlay sheet with suggested placement of lighting fixtures.
