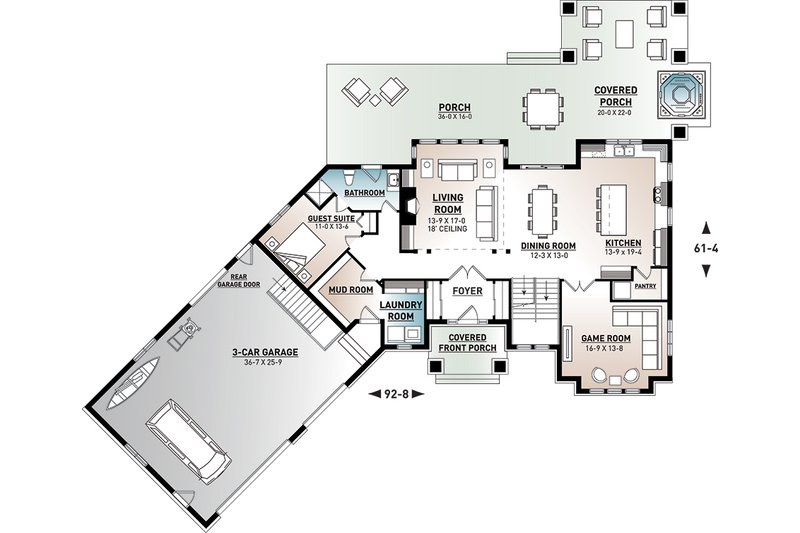

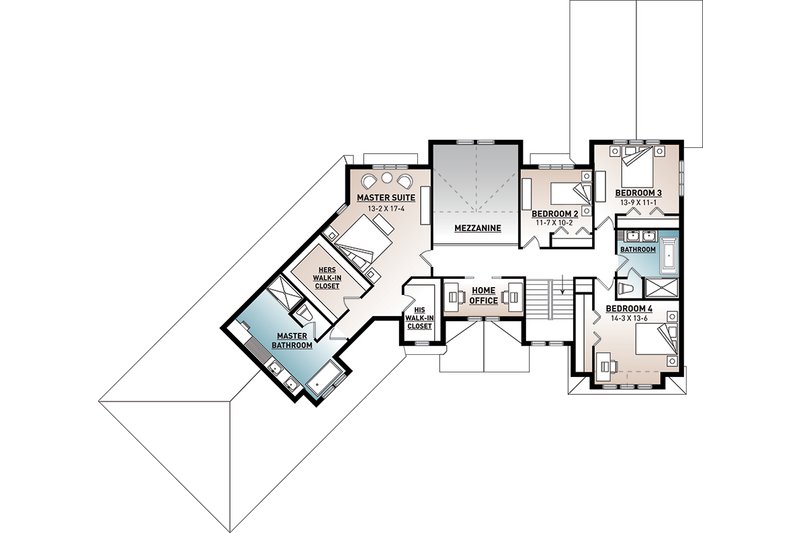

Main Floor: 9' ceiling everywhere, but approx. 18' ceiling in family room. Foyer with 2 coat closets, media room, kitchen, dining room, family room, shower room, bedroom no. 5 (or home office), laundry room and mud room. Second Floor: Master suite, computer room, 3 secondary bedrooms, full bathroom. Triple car garage with access to full unfinished basement. Many foundation options available. Cape Cod style home with panoramic view and a very large covered deck. 9' ceiling througout the main floor, but family room with 18' ceiling. Foyer with 2 coat closets. Media room (or play room) next to kitchen. Kitchen with pantry and large kitchen island. Dining room with patio-doors leading to large covered terrasse (large deck). Family room with fireplace and built-ins. Practical access to shower room from deck and bedroom 5 (or home office). Laundry room next to mud room. 3-car garage with access to full unfinished basement.
Full Specs & Features
Depth : 61' 4"
Height : 28' 10"
Width : 92' 8"
Main Floor : 1873 sq/ft
Upper Floor : 1880 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Framing : 2X6
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
Exterior Elevations (front, rear, left & right sides) typically include:
- Floor and ceiling heights
- Dimensions of standard windows
- Dimensions of roof overhangs
- Location of all needed flashings
- Height and location of foundation indicated in dashed lines
- Type of finishing and textures
- Dimension and height of chimney
Foundation plans typically include:
- All exterior and interior dimensions
- Thickness of foundation walls (if variable)
- All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
- Location of stairwell
- Location and sizes of windows
- Location and dimensions of footings (where applicable and required)
Floor plan(s) typically include:
- All interior and exterior dimensions
- Location and sizes of doors and windows
- Types of interior doors that correspond to a schedule
- Indication of the structure above (second floor or roof)
- Location of columns, beams and floor joists, including dimensions
- Indication of details that are available on other pages
Roof plans typically include:
- Location of all the different trusses needed
- The general overcharge of the roof compared to the floor footprint underneath
- Location of ridges and valleys
Building cross-section(s) and truss details typically include:
- All the different floor and ceiling heights
- Dimensions and design of trusses
- Dimensions and details of overhand
- Roof pitch on all truss sections
Construction details typically include:
- Roof sections
- Sections of concrete wall with wood connection
- Section of walls with particulars called out
- Section of concrete porch and connection with wood frame
- Foundation particulars in the garage entrance
- Components of certain types of walls (ex: between garage and living quarters)
Typical wall sections typically include;
» See important
information before purchasing.
- All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
- Note: This plan does not include an electrical layout.
