PLAN 54-415

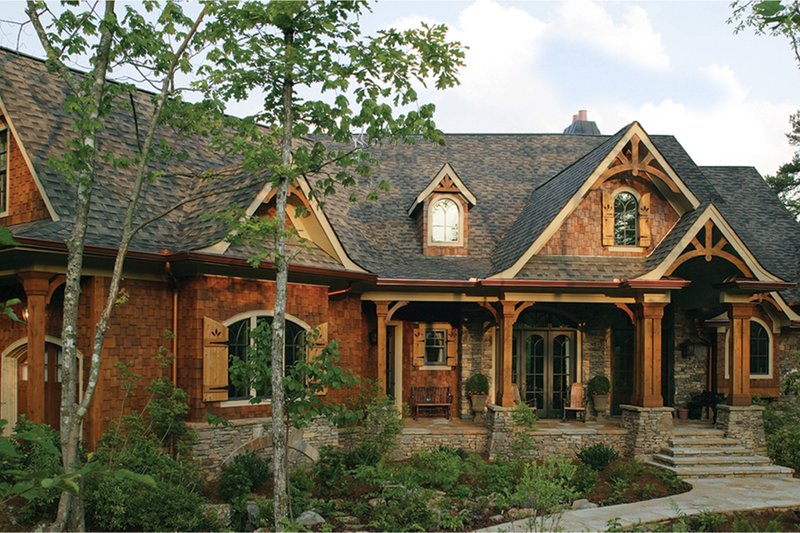

Craftsman Exterior - Front Elevation Plan #54-415
Craftsman Interior - Entry Plan #54-415
Craftsman Interior - Family Room Plan #54-415
Craftsman Interior - Family Room Plan #54-415
Craftsman Interior - Family Room Plan #54-415
Craftsman Interior - Master Bathroom Plan #54-415

Select Plan Set Options

What's included?
Subtotal
NOW $2245.50
You save $249.50
(10% savings)
Sale ends soon!
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 54-415

Key Specs


2707
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description


This rustic house plan promotes open living spaces elegantly blending the outdoors with the indoors. An inviting front covered porch welcomes you into this tranquil living space. The vaulted lodge room is highlighted with a window of walls for the unbelievable outdoor scenery.The master suite is designed a little differently in this plan allowing the master bath to share the rear views. Another feature that is different on this mountain home design is the angled casual dining area as opposed to the rounded one seen on many of the other similar home plans. The large kitchen is open to the casual dining area and keeping room. Two additional bedrooms round out this main floor. The optional second floor plan has a loft area and guest room with full bath and walk-in closet. The basement floor plan has additional bedrooms and a social area great for entertaining.

Floor Plans

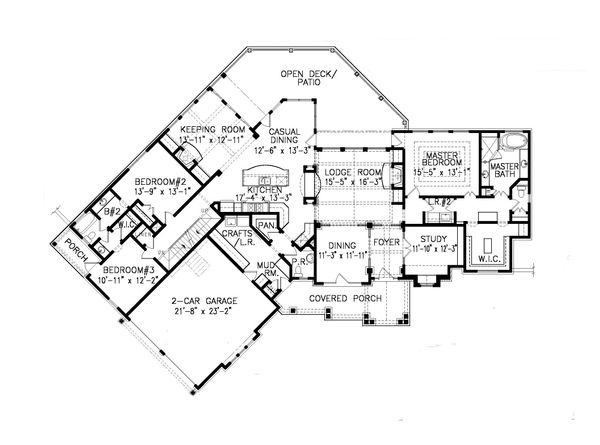

Floor Plan - Main Floor Plan
Reverse
Save

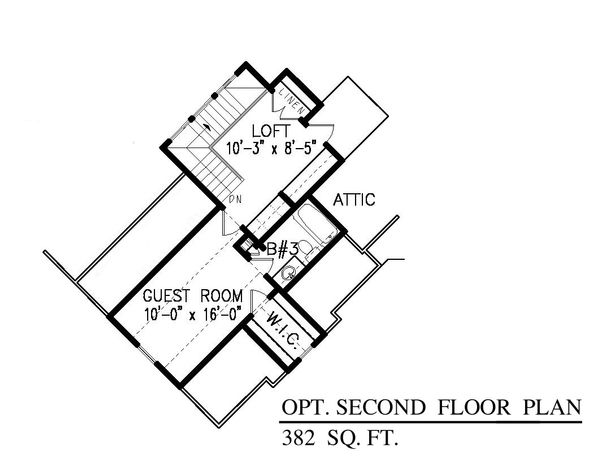

Floor Plan - Upper Floor Plan
Reverse
Save

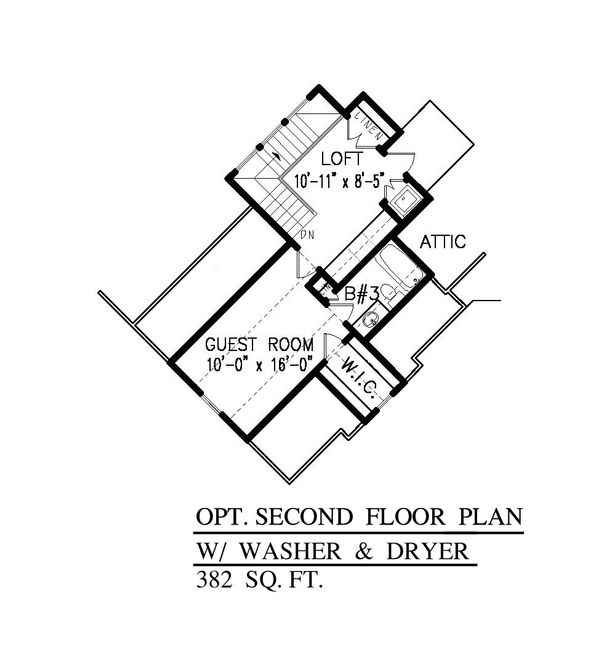

Floor Plan - Upper Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 70'
Height : 24'
Width : 98' 1"
Area
Garage : 504 sq/ft
Main Floor : 2707 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 10'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Roof Type : Gable
Exterior Wall Framing
Exterior Wall Finish : Shake-Stone
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
More
Jack & Jill Bath

What's Included In This Plan Set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
$2245.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$2358.00
5 printed plan sets mailed to you.
CAD Set :
$3100.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$315.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$315.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4
Wood 2x6:
$765.00
Wood 2x6

Additional Options

Right-Reading Reverse :
$315.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design :
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$90.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
