Full Specs & Features
Depth : 72' 3"
Height : 33'
Width : 46' 3"

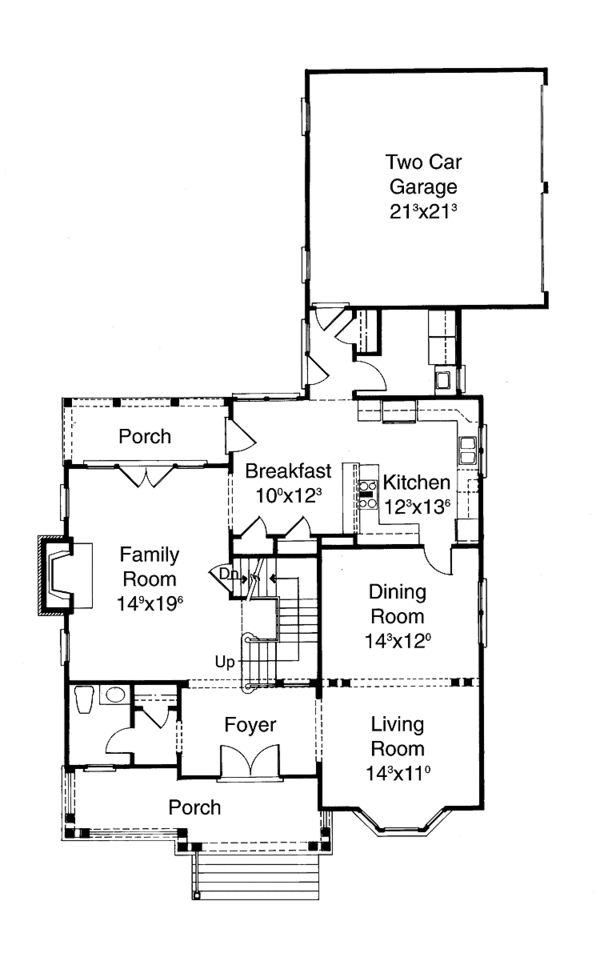

First Floor: 1407 sq/ft height 9'

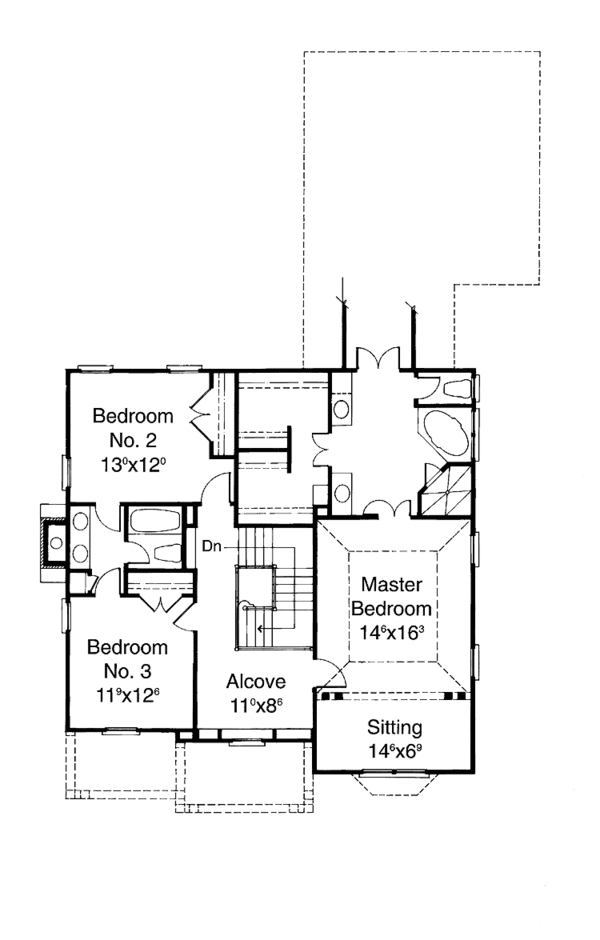

Second Floor: 1298 sq/ft height 8'
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Additional Room Features
Family Room Keeping Room
Covered Front Porch
451 sq/ft width 21' 3" x depth 21' 3"
175 sq/ft width 13' x depth 13' 6"
49 sq/ft width 7' x depth 7'
41 sq/ft width 5' 6" x depth 7' 6"
56 sq/ft width 7' x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

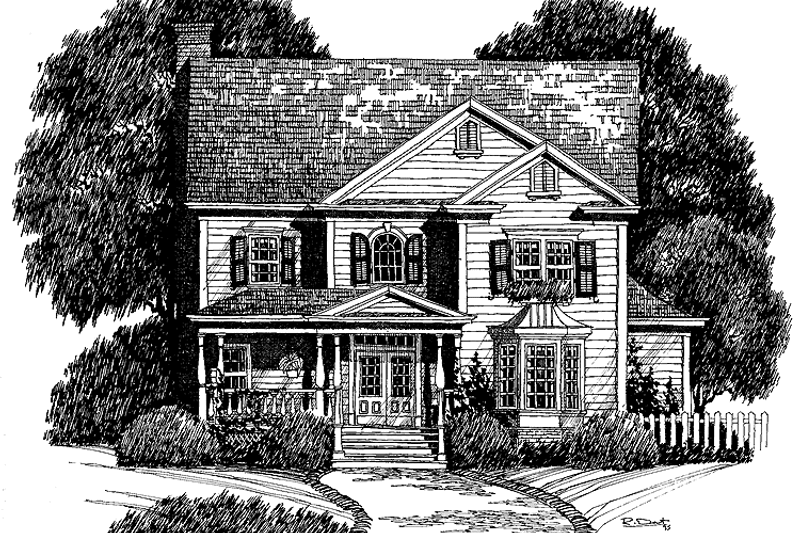

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
