PLAN 17-3371

Key Specs


2647
sq ft

4
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description

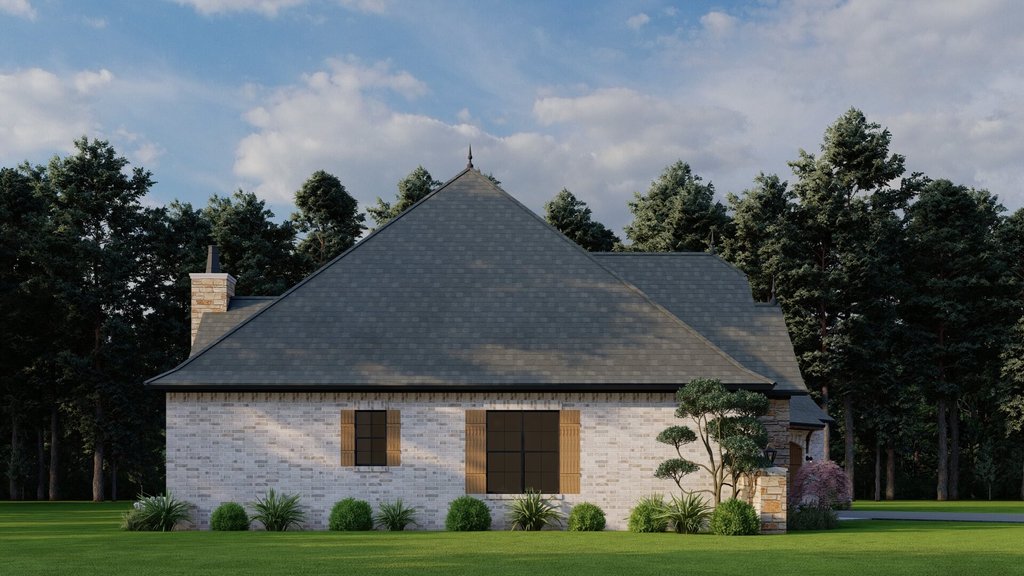

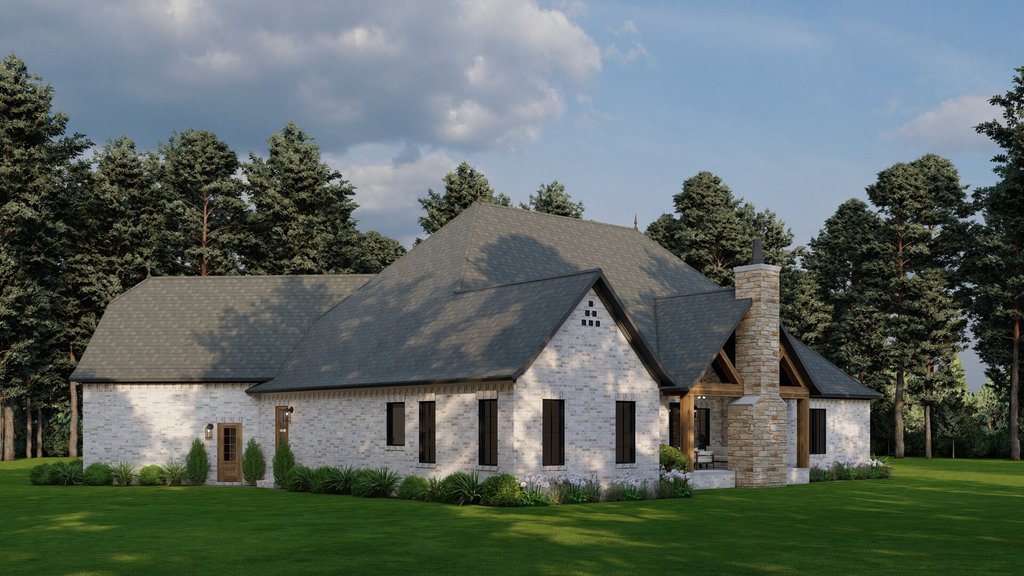

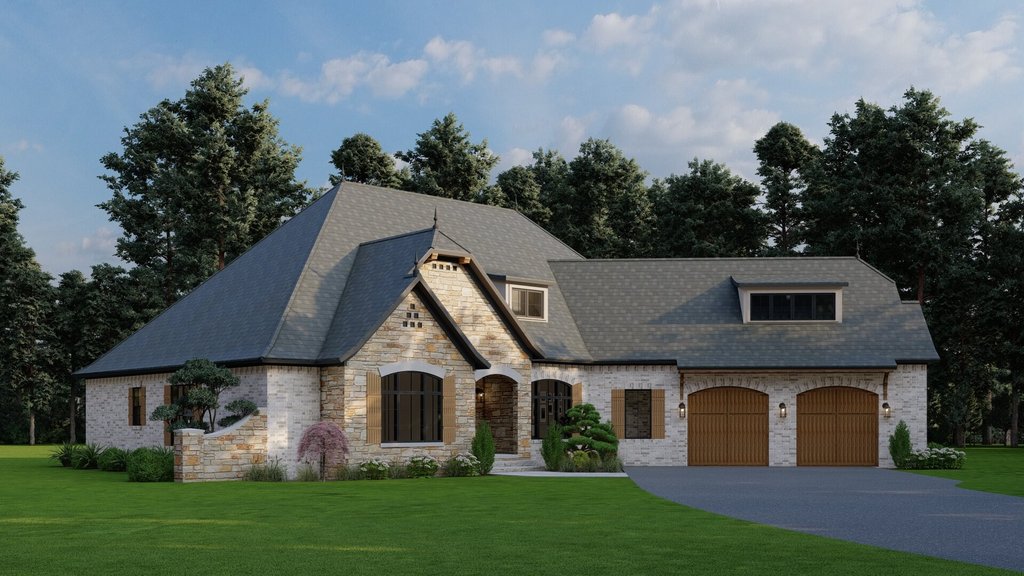

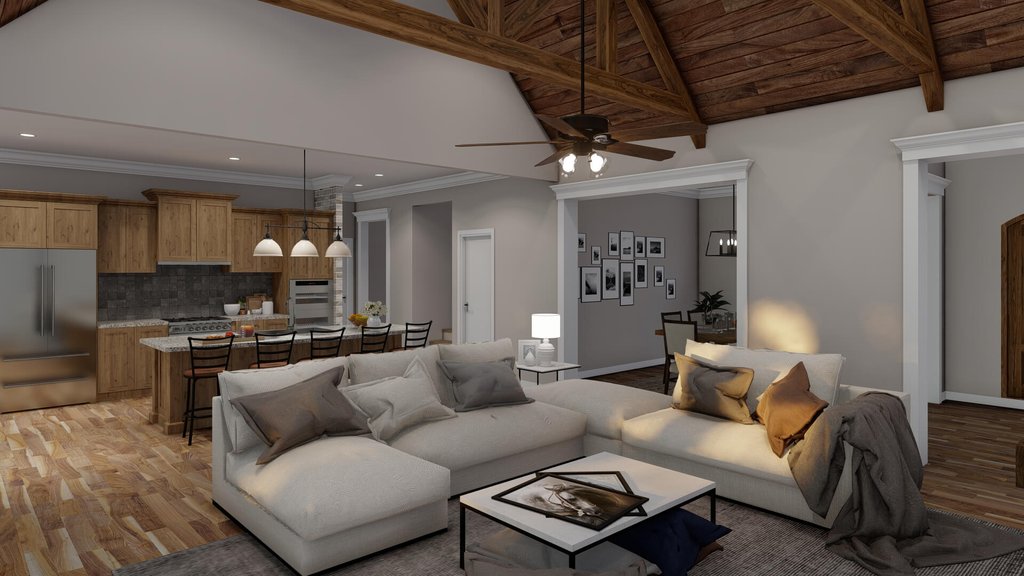

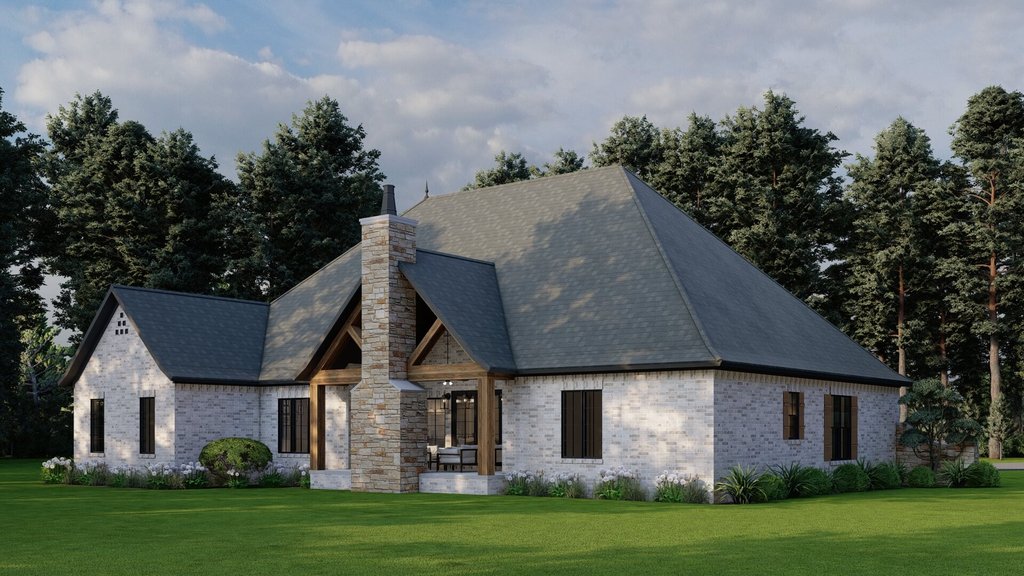

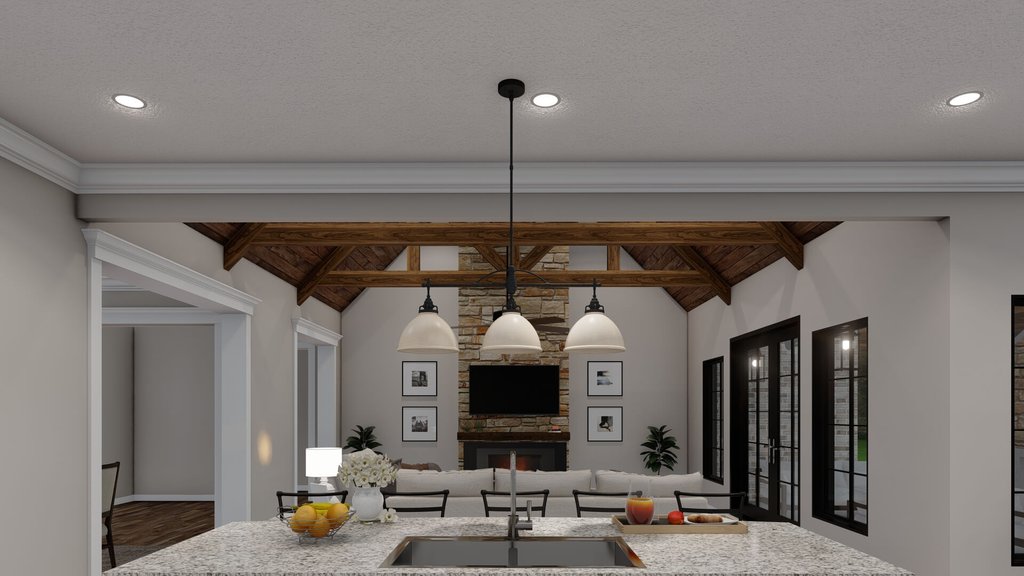

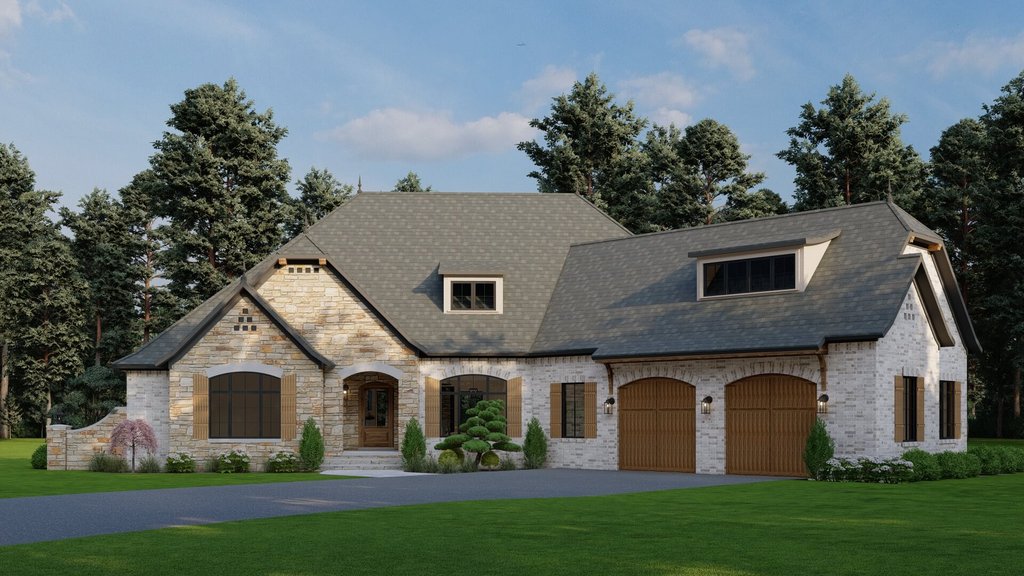

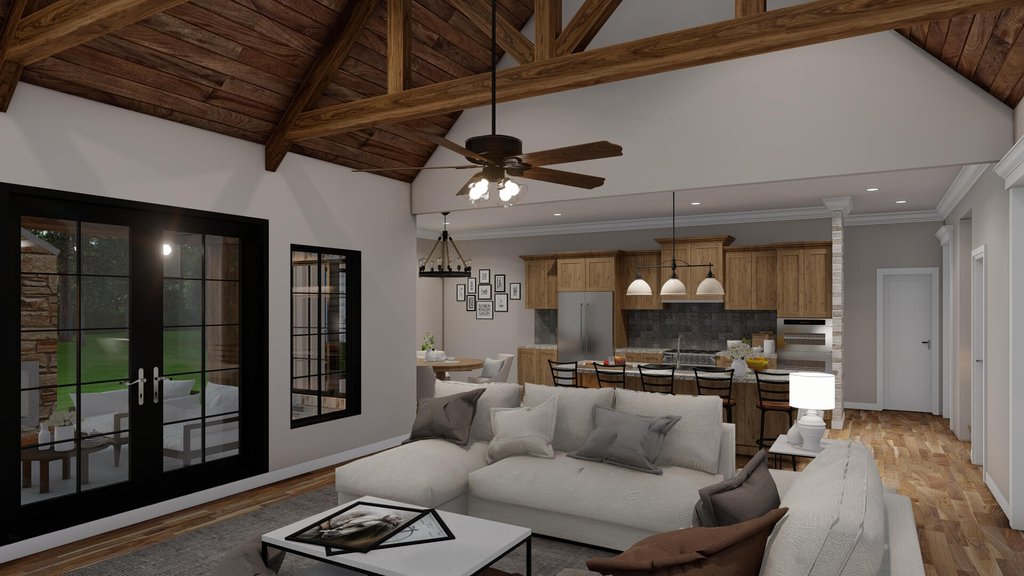

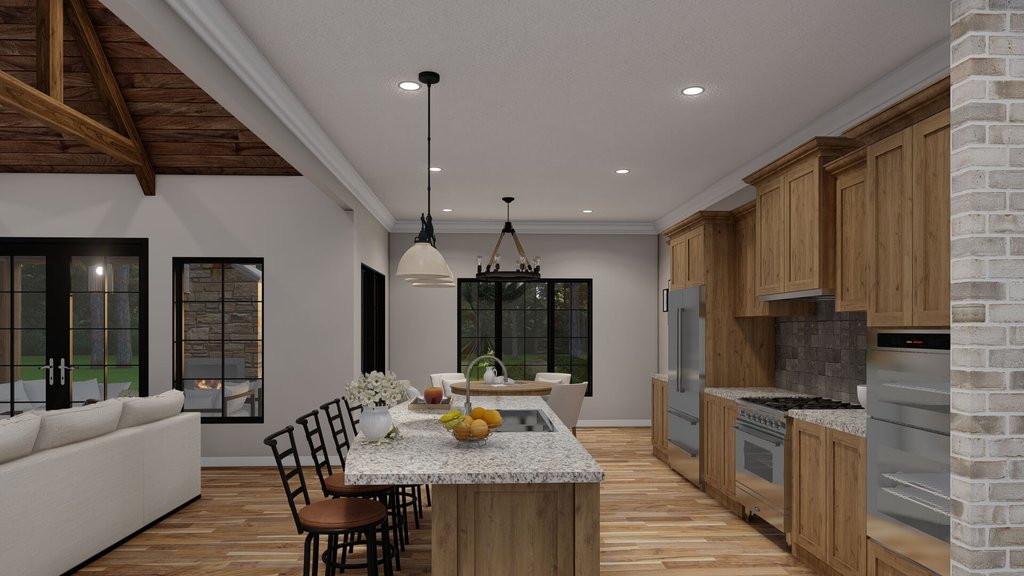

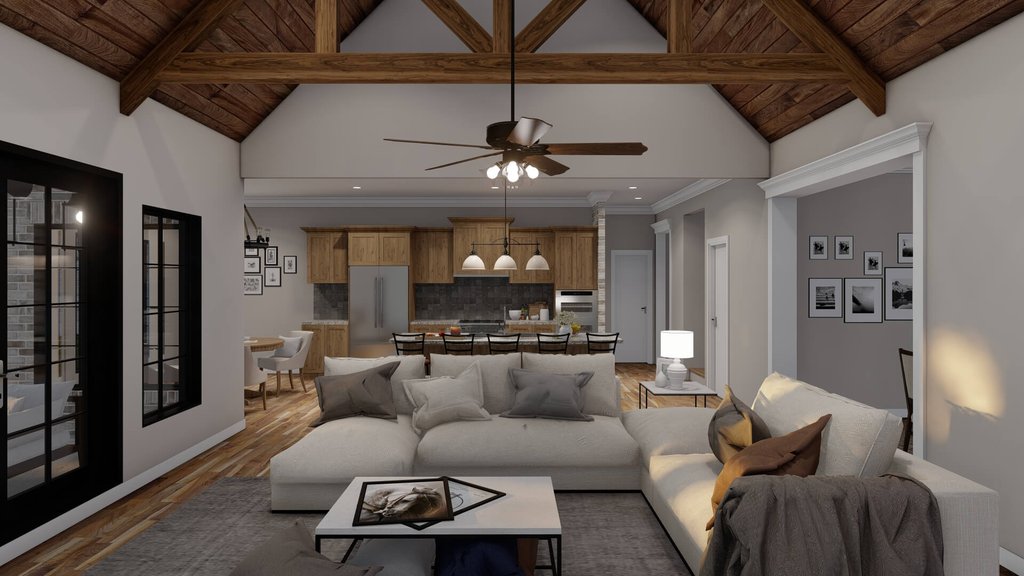

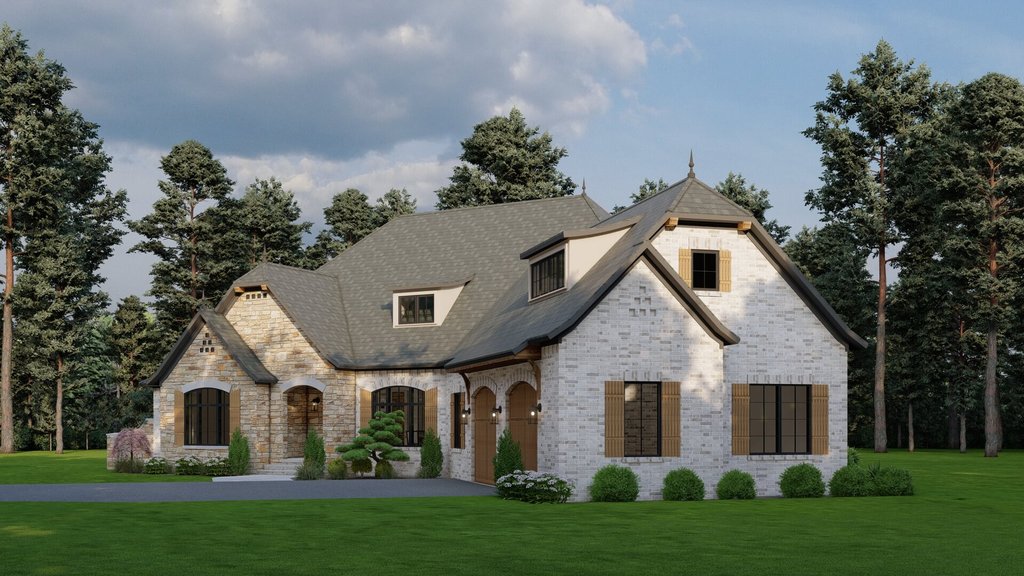

This new gorgeous European style home includes an abundance of details that will enrich and simplify your lifestyle. Arches are prominent on the exterior, from the windows and garage doors to the stone front entrance, as well as arched brackets of the garage roof. The spacious great room features a fireplace and vaulted ceiling with exposed timber beams. The kitchen provides a large eat-at island bar and plenty of counter space plus a walk-in pantry. The Master Suite has a vaulted ceiling and a master bath with dual vanities, a free standing tub, a glass shower with a seat, and a huge walk-in closet. Three more bedrooms are located on the left side of the home, each with a walk-in closet. Above the garage, there is a large bonus room with possibilities.

Floor Plans


Floor Plan - Main Floor Plan
Reverse
Country Floor Plan - Main Floor Plan Plan #17-3371
Floor Plan - Other Floor Plan
Reverse
Country Floor Plan - Other Floor Plan Plan #17-3371

Full Specs & Features


Area
Bonus : 514 sq/ft
Garage : 800 sq/ft
Main Floor : 2647 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Fireplace

What's Included In This Plan Set


  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
» See important information before purchasing.

Plan Set

PDF Set :
$750.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$850.00
5 printed plan sets mailed to you.
CAD Set :
$1545.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$250.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$250.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Right-Reading Reverse :
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Roof Framing Detail :
$100.00
Get a detailed plan for your roof framing.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
