Key Specs
2471
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 54-210
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

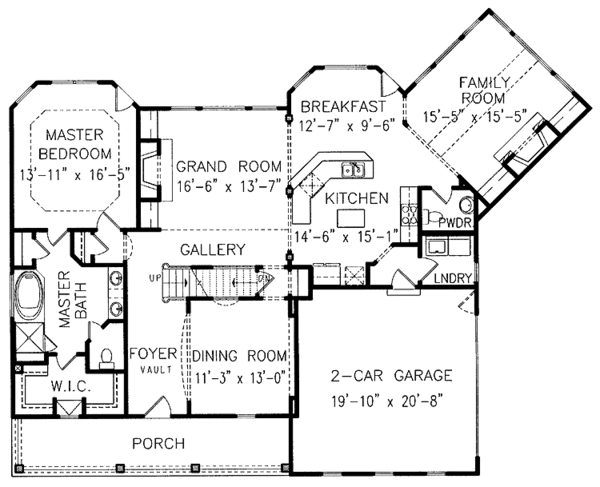

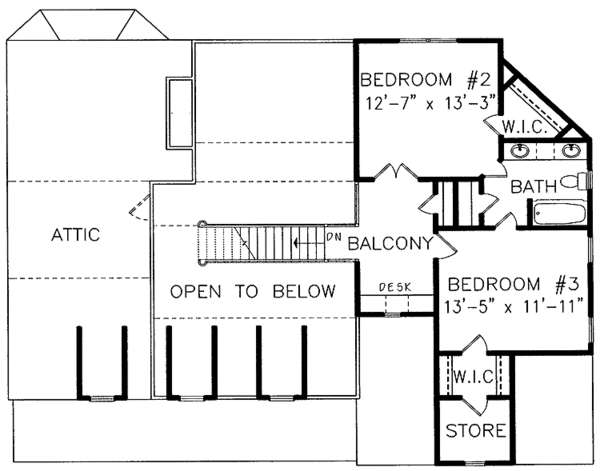

Floor Plans
Full Specs & Features
Dimension
Depth : 52' 7"
Height : 25'
Width : 64' 9"
Area
First Floor: 1822 sq/ft height 9'
Second Floor: 649 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Additional Room Features
Main Floor Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Deck
Rooms
Breakfast Room:
119 sq/ft width 12' 7" x depth 9' 6"
Dining Room:
146 sq/ft width 11' 3" x depth 13'
Family Room:
237 sq/ft width 15' 5" x depth 15' 5"
Garage:
409 sq/ft width 19' 10" x depth 20' 8"
Grand Room:
224 sq/ft width 16' 6" x depth 13' 7"
Kitchen:
218 sq/ft width 14' 6" x depth 15' 1"
Master Bedroom:
228 sq/ft width 13' 11" x depth 16' 5"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1195.00
$2145.00
$2240.00
Foundation
$0.00
$350.00
$350.00
Framing
$0.00
$350.00
Additional Options
$250.00
$70.00
$165.00
$295.00
$39.00
$165.00
$55.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
