This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Modify This Plan
Full Specs & Features
Depth : 58'
Height : 18'
Width : 51'
Garage : 455 sq/ft

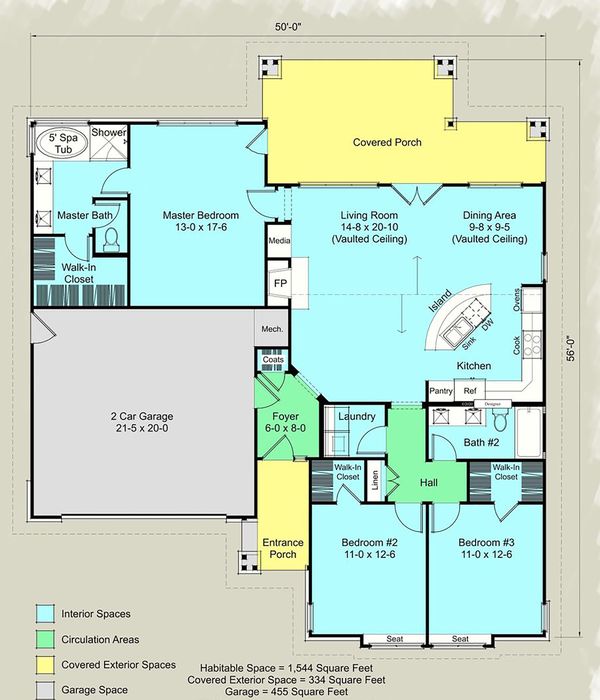

Main Floor : 1544 sq/ft
Porch : 334 sq/ft
Ceiling Details : Living Room Vaulted
Garage Ceiling : 9'
Main Ceiling : 9'
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stone Stucco Fiberboard
Framing : 2x4
Walk In Closet
Additional Room Features
Great Room Living Room
Main Floor Laundry
Vaulted / Cathedral Ceilings
Front Entry Garage
Suited For Narrow Lot
Covered Front Porch
Covered Rear Porch
Economical To Build
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
