PLAN 53-663
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

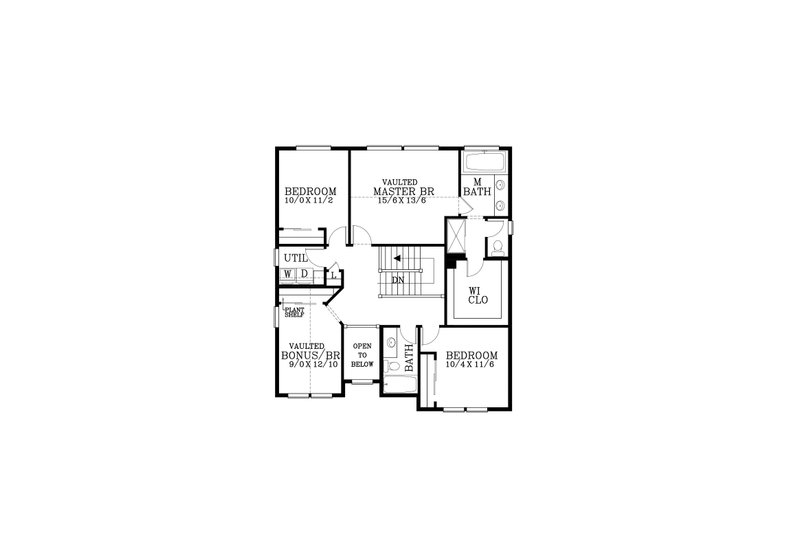

Floor Plans
Full Specs & Features
Dimension
Depth : 42'
Height : 32'
Width : 34'
Area
Bonus : 108 sq/ft
Garage : 351 sq/ft
Main Floor : 883 sq/ft
Patios : 100 sq/ft
Porch : 125 sq/ft
Storage : 63 sq/ft
Upper Floor : 1131 sq/ft
Ceiling
Ceiling Details : Vaulted M. Bedroom and Bonus Room
Lower Ceiling : 9'
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 12/10
Roof Framing : Trusses
Roof Load : 30
Roof Type : Composition Roofing
Secondary Pitch : 12/8
Exterior Wall Framing
Exterior Wall Finish : Hardiplank Lap Siding
Framing : 2x6
Insulation : R-21
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Play Flex Room
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Rear Porch
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

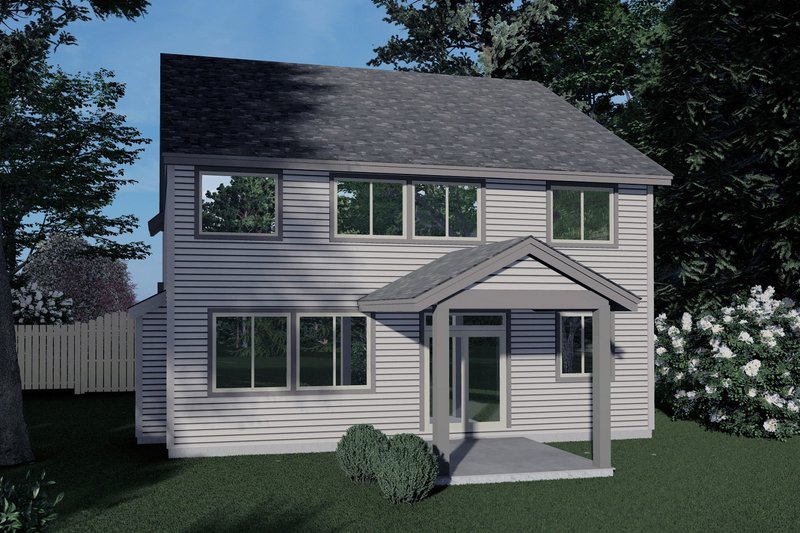

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Plan Set
$1276.00
$1596.00
$1996.00
Foundation
$0.00
$220.00
Framing
$0.00
Additional Options
$200.00
$760.00
$132.00
$236.00
$31.20
$132.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
