PLAN 1116-5
Photographs may show modified designs.
- Jump to:
- All (3)
- Floor plans (2)
Get Personalized Help
Key Specs
1943
sq ft
3
Beds
2.5
Baths
2
Floors
0
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Phone: 1-877-222-1762
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTBFALL
Use Code CTBFALL
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1116-5
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
- This Transitional Tudor home plan provides a fresh exterior with over 1,900 square feet of living space. - The formal entry directs you into the open living space that combines the family room, kitchen, and dining area. - Enjoy the convenience of a main-level primary bedroom that includes a 4-fixture bathroom and walk-in closet. Across the hall, the laundry room closet neighbors a back door that opens to a patio. - Upstairs, two bedrooms share a full bathroom and a sizable rec area provides the perfect media / play room. - GIVING BACK: Please note the plan designer gives 10% of their profits on all sales to charities focused on helping children and families in foster care.
Floor Plans

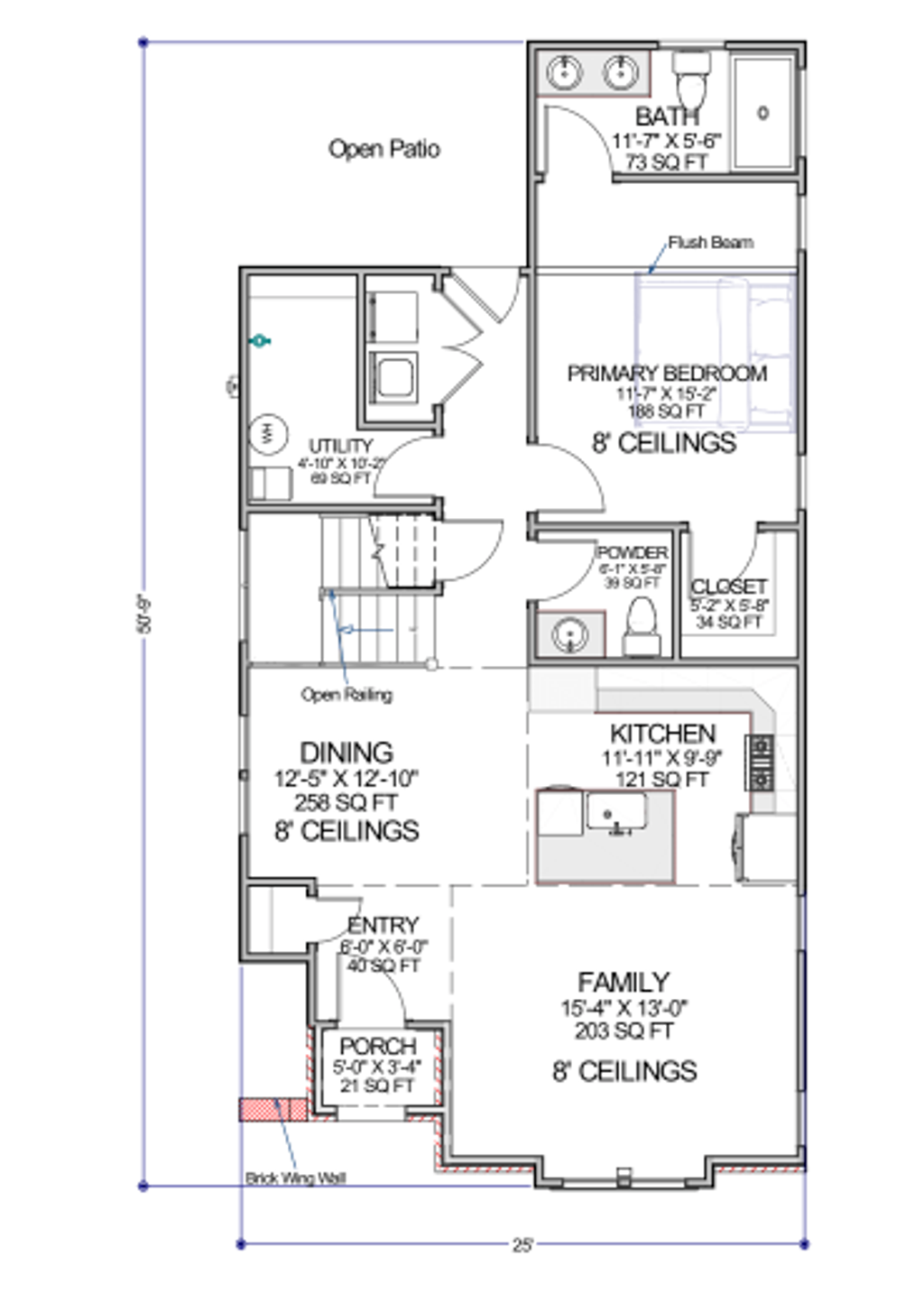

Floor Plan - Main Floor

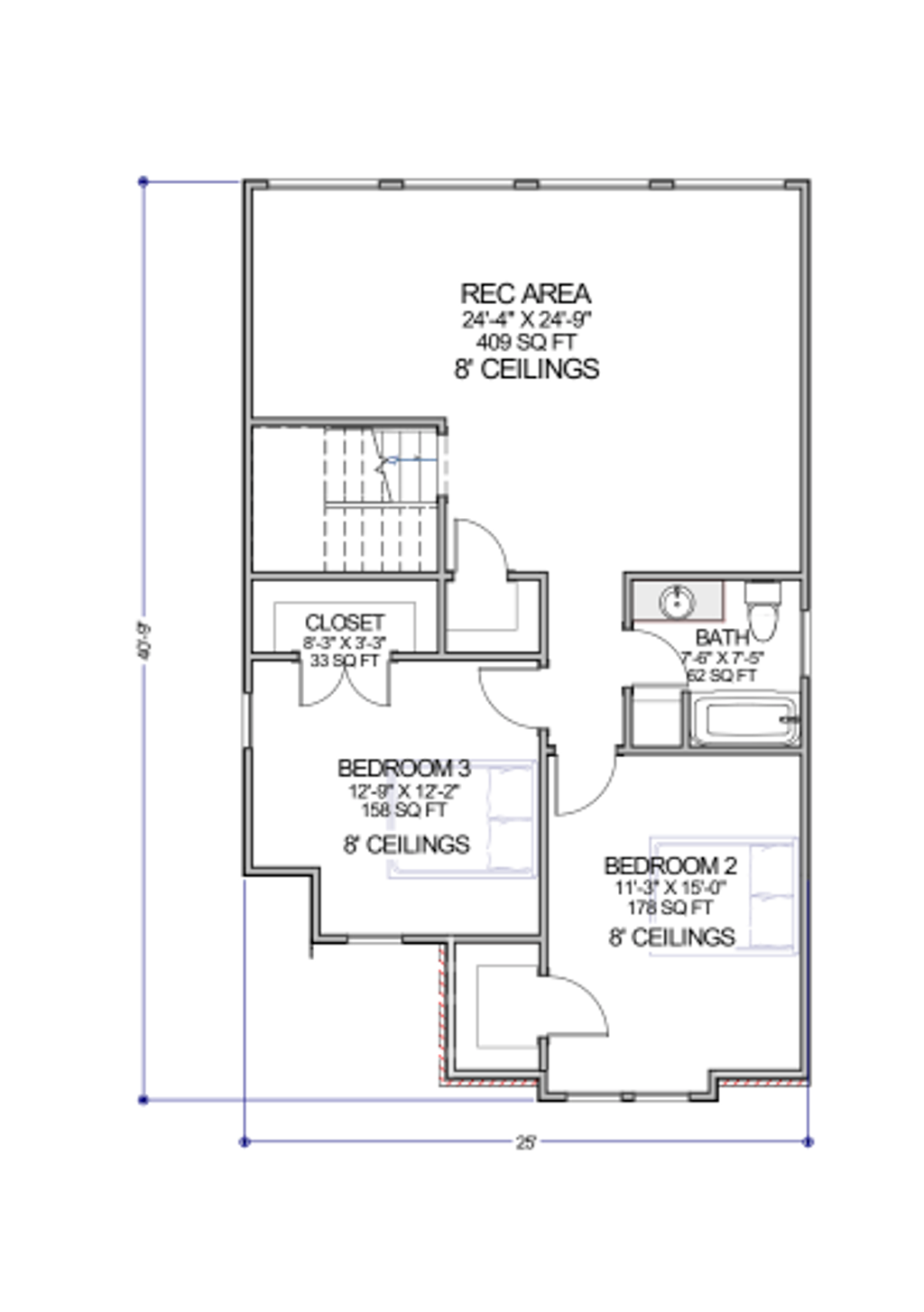

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 50' 9"
Height : 32'
Width : 65'
Area
Main Floor : 1061 sq/ft
Porch : 21 sq/ft
Upper Floor : 882 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
