Key Specs
1871
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 90-103
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

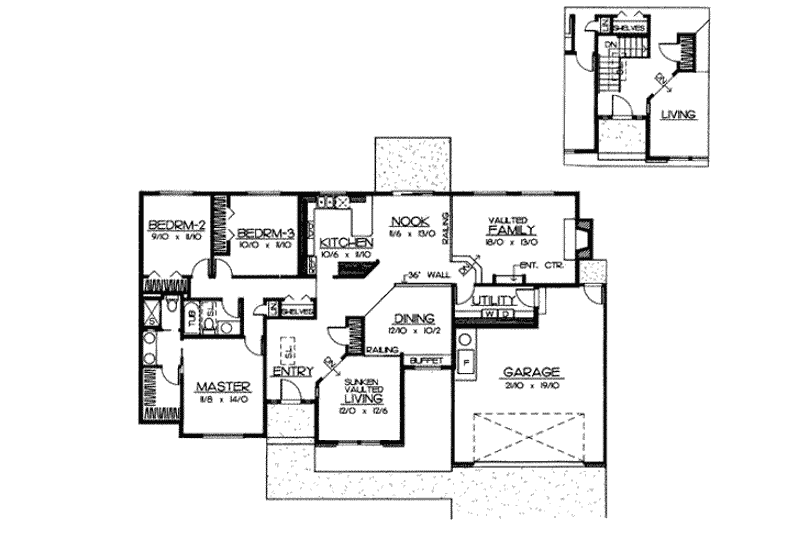

Floor Plans
Full Specs & Features
Dimension
Depth : 40'
Height : 20'
Width : 68'
Area
First Floor: 1871 sq/ft
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x6"
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Family Room Keeping Room
Rooms
3rd BR Closet:
13 sq/ft width 2' x depth 6' 6"
Bedroom 3:
117 sq/ft width 11' 10" x depth 9' 11"
Bedroom 4:
118 sq/ft width 11' 10" x depth 10'
Bedroom 4 Closet:
17 sq/ft width 2' x depth 8' 6"
Breakfast Room:
126 sq/ft width 10' x depth 12' 8"
Dining Room:
126 sq/ft width 10' x depth 12' 8"
Foyer:
84 sq/ft width 12' x depth 7'
Garage:
425 sq/ft width 19' 6" x depth 21' 10"
Gathering Room:
234 sq/ft width 13' x depth 18'
Hall:
width 3' 1" x depth 0"
Hall Bathroom:
41 sq/ft width 5' x depth 8' 4"
Hall Closet:
11 sq/ft width 2' 4" x depth 4' 10"
Kitchen:
112 sq/ft width 11' 10" x depth 9' 6"
Laundry Room:
63 sq/ft width 5' 6" x depth 11' 6"
Living Room:
150 sq/ft width 12' 6" x depth 12'
Master Bathroom:
55 sq/ft width 5' 4" x depth 10' 6"
Master Bedroom:
163 sq/ft width 14' x depth 11' 8"
Master Closet:
40 sq/ft width 7' 8" x depth 5' 4"
What's Included In This Plan Set
- Foundation Plan(s): Foundation or Basement Plan drawn at 1/4" = 1'-0" scale, and includes: All post and beam locations, door and window sizes, complete and accurate dimensions, all foundation wall and footing sizes, code-related notes, building section markers, floor and deck joist type, spacing and direction, mechanical equipment location, electrical layouts.
- Floor Plan(s): Floor Plans drawn at 1/4" = 1'-0" scale, and includes all post and beam locations, door and window sizes, complete and accurate dimensions, room labels and interior room sizes, electrical layouts, code-related notes, building section markers, floor joist type, spacing and direction

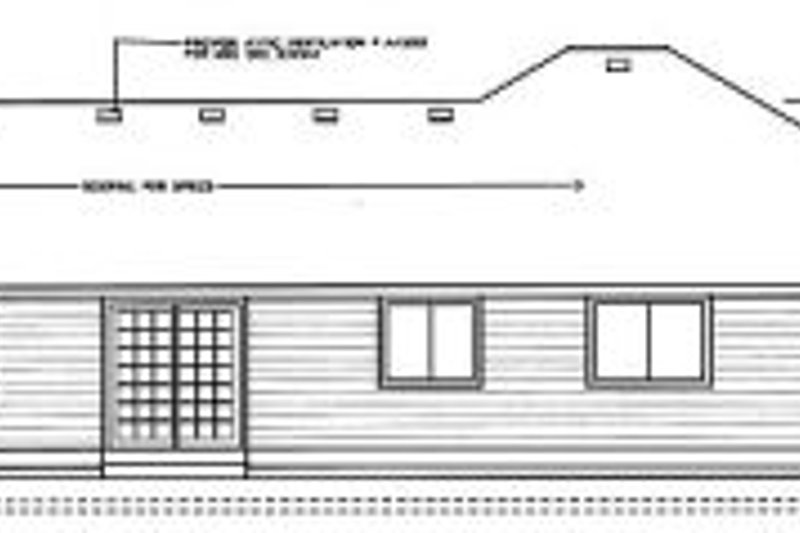

- Exterior Elevations: Elevations drawn at 1/4" = 1'-0" scale, and includes material labels, floor-to-floor heights, roof slope indicators, attic ventilation notes
- Overhead Roof Plan(s): Roof Plan drawn at 1/4" = 1'-0", and includes all beam and header locations, building section markers, code-related notes, all necessary notes pertaining to the structural system
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Building Sections drawn at 1/4" = 1'-0" scale, and includes beam connections and locations, floor joist type and spacing, floor-to-floor heights, non-typical plate heights indicated
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Other Note(s): Including miscellaneous framing details, stairway details and general notes covering code requirements for residential construction
Plan Set
$1045.00
$1195.00
$1295.00
$2045.00
Foundation
$0.00
$150.00
$250.00
$350.00
Additional Options
$150.00
$50.00
$165.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
