PLAN 47-654

Architectural House Design - Contemporary Exterior - Front Elevation Plan #47-654

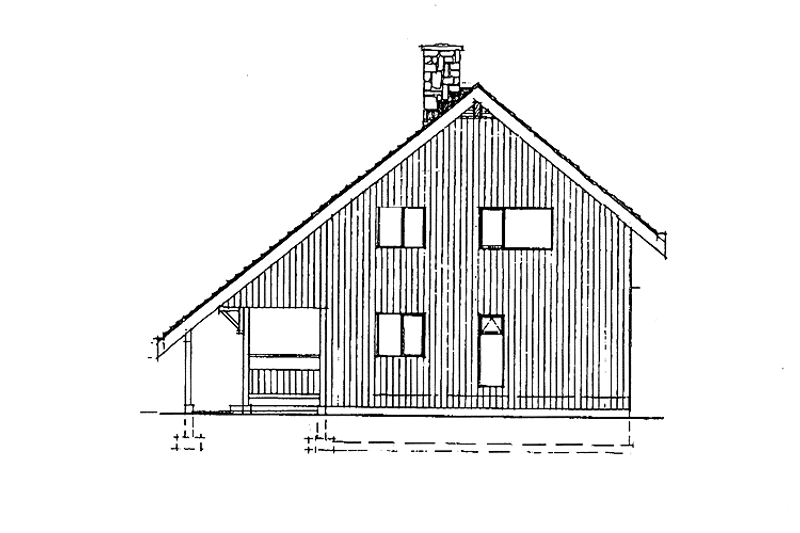

Architectural House Design - Contemporary Exterior - Rear Elevation Plan #47-654

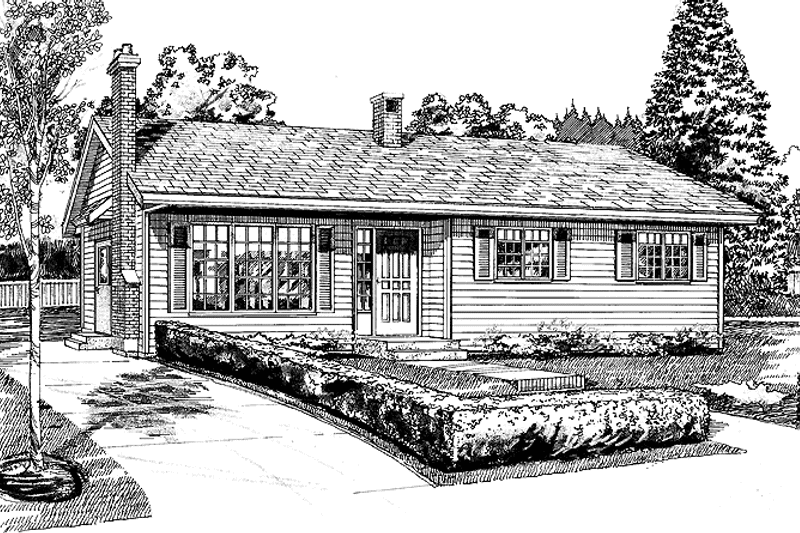

Architectural House Design - Contemporary Exterior - Front Elevation Plan #47-654

Key Specs


Plan Sq Ft

1708
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

1
Baths

Plan Floors

2
Floors

Plan Garages

1
Garages

Select Plan Set Options

What's included?
Right-Reading Reverse
$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$60.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License
$420.00
Additional Use License.
Audio Video Design
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Material List
$85.00
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Mirror Reversed Sets
$60.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Unlimited Use License
$840.00
Unlimited Use License.
Subtotal
$880.00
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Get Personalized Help
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 47-654

Key Specs


Plan Sq Ft

1708
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

1
Baths

Plan Floors

2
Floors

Plan Garages

1
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description


This charming four-bedroom home is dramatic on the outside and comfortable on the inside. Large glass sliding doors and floor-to-ceiling windows flood the interior with natural light. A vaulted living room features an oversized fireplace and connects to the dining area. A galley kitchen features a sink overlooking the deck. The master bedroom and a secondary bedroom to the rear share the use of a full bath. The second floor holds two additional bedrooms and a gallery area with front and side decks. Use this area as a playroom or studio.


Full Specs & Features


Dimension
Depth : 53' 6"
Height : 28'
Width : 36' 6"
Area
First Floor: 986 sq/ft height 8'
Second Floor: 722 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Kitchen Features
Walk In Pantry Cabinet Pantry
Additional Room Features
Loft
Garage Features
Carport Porte Cochere
Outdoor Spaces
Balcony
Covered Front Porch
Deck
Wrap Around Porch
Rooms

3rd BR Closet:

13 sq/ft width 6' 9" x depth 2'

Bedroom 2:

99 sq/ft width 11' x depth 9'

Bedroom 2 Closet:

11 sq/ft width 2' x depth 5' 9"

Bedroom 3:

130 sq/ft width 10' x depth 13'

Bedroom 3 Closet:

11 sq/ft width 2' x depth 5' 9"

Bedroom 4:

99 sq/ft width 11' x depth 9'

Bedroom 4 Closet:

11 sq/ft width 2' x depth 5' 9"

Crawlspace Foundation:

986 sq/ft width 38' 8" x depth 25' 6"

Deck:

158 sq/ft width 18' x depth 8' 10"

Dining Room:

84 sq/ft width 7' 8" x depth 11'

Hall:

29 sq/ft width 3' 8" x depth 8'

Hall Bathroom:

47 sq/ft width 9' 6" x depth 5'

Hall Closet:

12 sq/ft width 2' x depth 6'

Kitchen:

78 sq/ft width 9' 10" x depth 8'

Laundry Room:

15 sq/ft width 6' x depth 2' 7"

Living Room:

239 sq/ft width 17' 6" x depth 13' 8"

Master Bedroom:

130 sq/ft width 10' x depth 13'

Master Closet:

13 sq/ft width 6' 9" x depth 2'

Porch - Front:

176 sq/ft width 6' 4" x depth 27' 10"

Porch - Left:

247 sq/ft width 9' 6" x depth 26'

Porch - Right:

165 sq/ft width 6' 4" x depth 26' 2"

Storage:

22 sq/ft width 3' 8" x depth 6'

Utility Room:

15 sq/ft width 2' 7" x depth 6'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

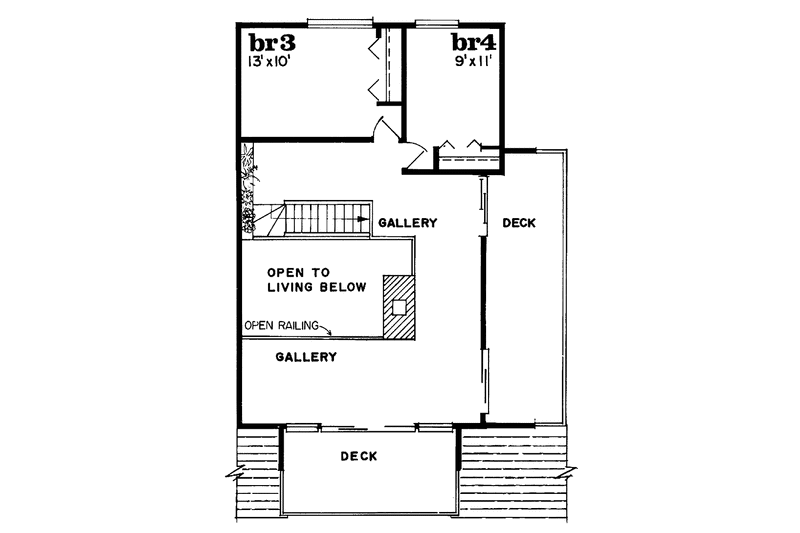

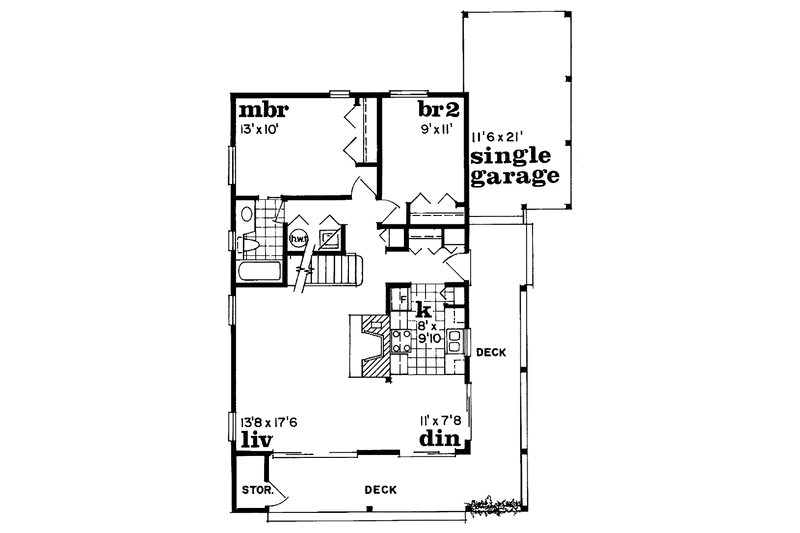

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
