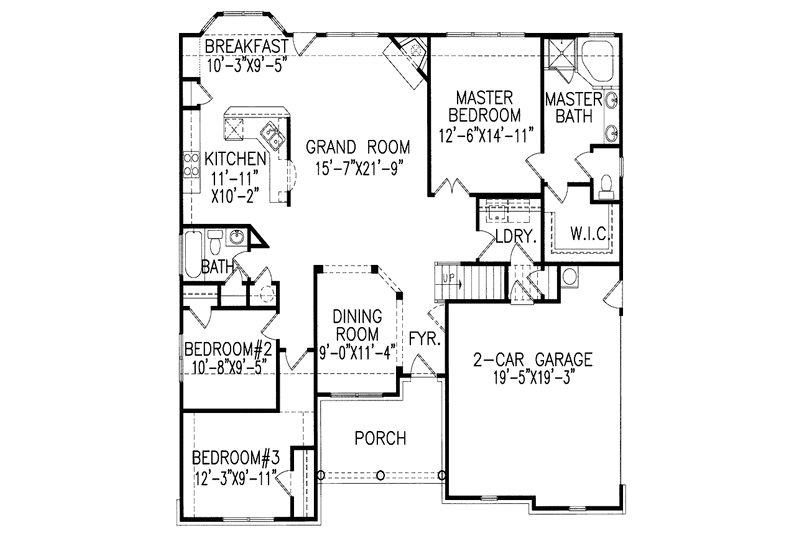

Small Arts and Crafts details enhance this Ranch-style home. Designed using open space and natural traffic flow for an unobstructed layout that includes: split bedrooms, an efficient yet spacious kitchen with bumped-out breakfast nook, and dining room oriented to take advantage of the corner fireplace in the grand room. The master suite introduces itself with double doors and enjoys a private bath and walk-in closet.
108 sq/ft width 11' 2" x depth 9' 9"
121 sq/ft width 12' 3" x depth 9' 11"
86 sq/ft width 9' 11" x depth 8' 9"
114 sq/ft width 9' 6" x depth 12'
429 sq/ft width 19' 9" x depth 21' 9"
253 sq/ft width 15' 7" x depth 16' 3"
153 sq/ft width 11' 11" x depth 12' 11"
179 sq/ft width 12' 11" x depth 13' 11"
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
