PLAN 47-688
Key Specs
1548
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-877-222-1762
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Phone: 1-877-222-1762
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 47-688
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Plan Description

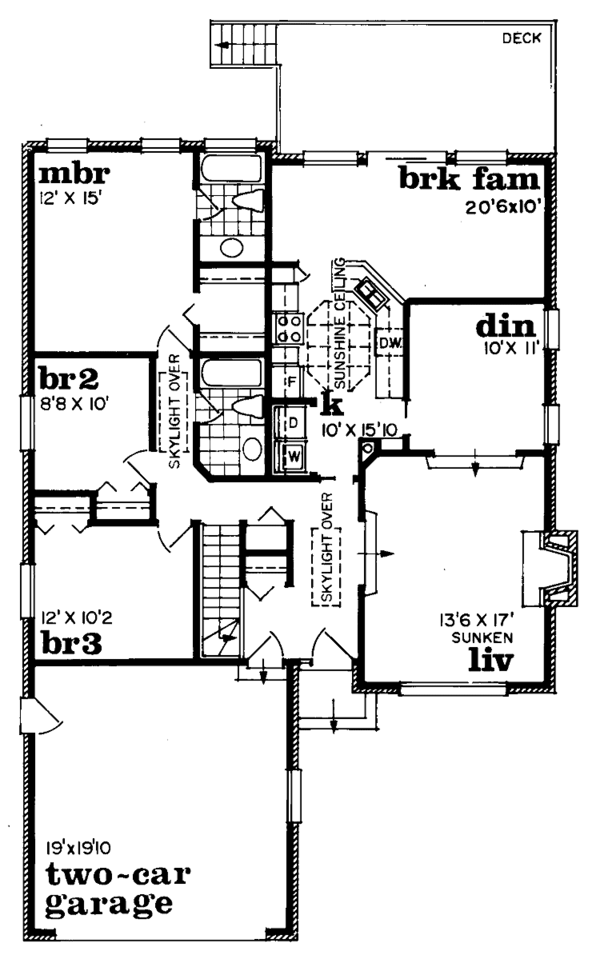

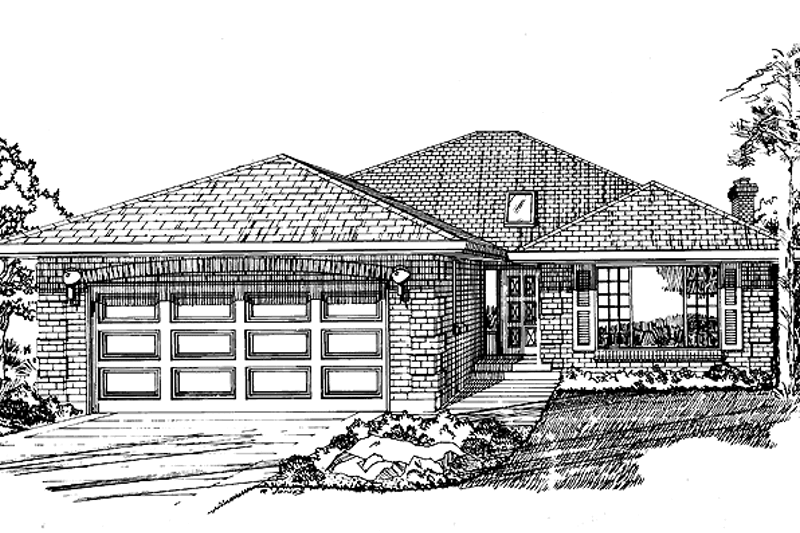

A low-maintenance brick exterior with quoining and shutters adorns this compact
home. The skylit foyer opens to a sunken living room with fireplace and entry
to the formal dining room. The kitchen has a sunshine ceiling, spacious
counters and is convenient to both the dining room and breakfast/family room
area (look for sliding glass doors to the rear deck). A laundry area is located
in an alcove in the kitchen. The bedroom hallway is brightened by a skylight
and leads to two family bedrooms with shared bath and the master suite.
Appointments in the master suite include a walk-in closet and full, private
bath. The two-car garage sits to the front of the plan and protects the
bedrooms from street noise.
Full Specs & Features
Dimension
Depth : 60' 4"
Height : 23'
Width : 40'
Height : 23'
Width : 40'
Area
First Floor: 1548 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Living Room / Parlor
Formal Living Room / Parlor
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
8 sq/ft width 2' x depth 4'
Basement Foundation:
1600 sq/ft width 40' x depth 40'
Bedroom 2:
86 sq/ft width 10' x depth 8' 8"
Bedroom 2 Closet:
8 sq/ft width 2' x depth 4' 2"
Bedroom 3:
122 sq/ft width 10' 2" x depth 12'
Bedroom 3 Closet:
8 sq/ft width 2' x depth 4' 2"
Deck:
213 sq/ft width 10' x depth 21' 4"
Foyer:
42 sq/ft width 5' 6" x depth 7' 8"
Garage:
383 sq/ft width 20' x depth 19' 2"
Gathering Room:
146 sq/ft width 7' 2" x depth 20' 6"
Hall Bathroom:
45 sq/ft width 9' x depth 5'
Hall Closet:
width 3' 4" x depth 2"
Kitchen:
158 sq/ft width 15' 10" x depth 10'
Living Room:
229 sq/ft width 17' x depth 13' 6"
Master Bathroom:
42 sq/ft width 8' 5" x depth 5'
Master Bedroom:
180 sq/ft width 15' x depth 12'
Master Closet:
31 sq/ft width 6' 4" x depth 5'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-877-222-1762
Plan Set
| PDF Set : $792.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $891.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $990.00 |
8 printed plan sets mailed to you. |
| Reproducible Set : $990.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $1584.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $247.50 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Daylight Basement: $247.50 |
Ideal for sloping lot, lower level of home partially underground. |
| Slab: $247.50 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $157.50 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $54.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Additional Use License : $378.00 |
Additional Use License. |
| Audio Video Design : $90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $35.10 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Material List : $76.50 |
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options. |
| Mirror Reversed Sets : $54.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
| Unlimited Use License : $756.00 |
Unlimited Use License. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
