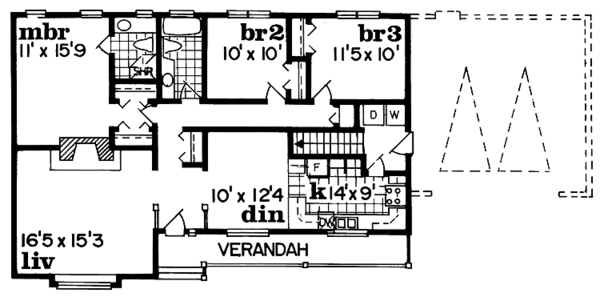

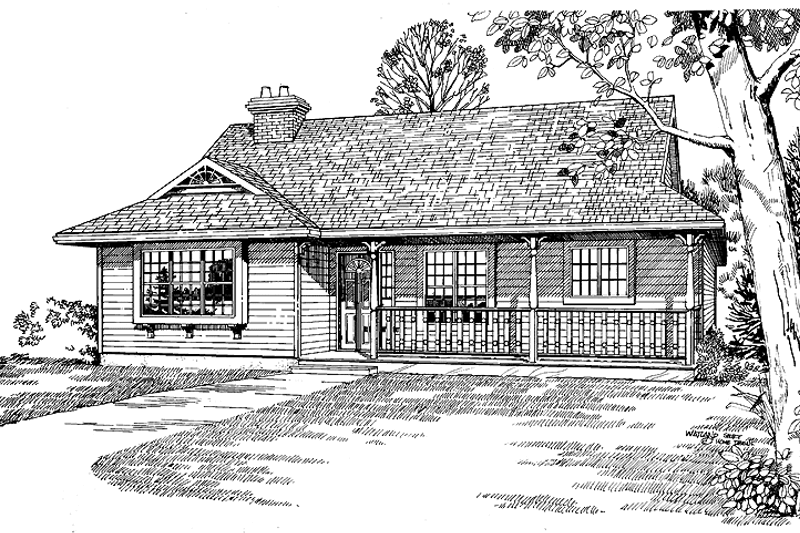

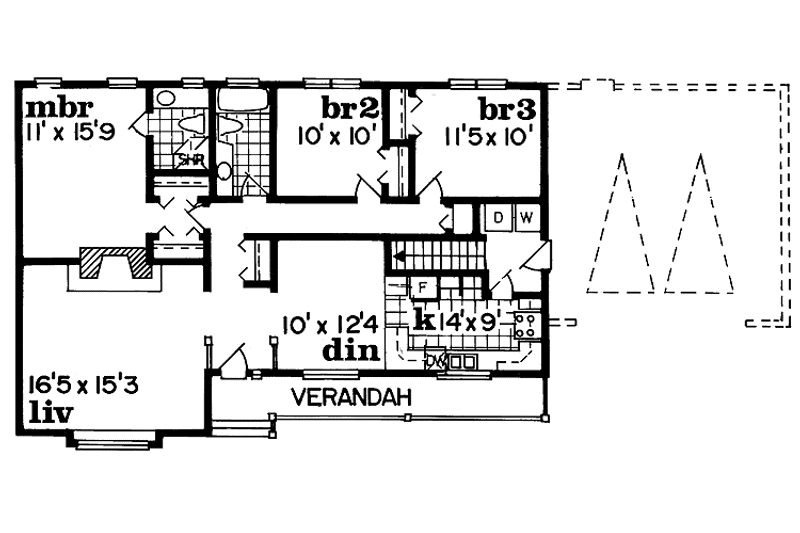

Enhanced by farmhouse details--turned spindles on a covered porch and gable trim this compact home is as pleasing as it is affordable. The entry opens to a center hall with a living room on one side and dining room on the other. The living room features a box-bay window and warming fireplace. The dining room attaches to the U-shaped kitchen. A handy laundry area with access to the optional two-car garage is nearby. The three bedrooms stretch out along the rear width of the home. The master suite has a private bath and two wall closets. Two family bedrooms share a full bath.
3rd BR Closet:
8 sq/ft width 4' 4" x depth 2'
1549 sq/ft width 32' 6" x depth 47' 8"
100 sq/ft width 10' x depth 10'
Bedroom 2 Closet:
10 sq/ft width 5' 4" x depth 2'
114 sq/ft width 10' x depth 11' 5"
Bedroom 3 Closet:
10 sq/ft width 5' 4" x depth 2'
123 sq/ft width 12' 4" x depth 10'
49 sq/ft width 9' x depth 5' 6"
50 sq/ft width 10' x depth 5'
8 sq/ft width 4' x depth 2'
126 sq/ft width 9' x depth 14'
250 sq/ft width 15' 3" x depth 16' 5"
40 sq/ft width 7' 8" x depth 5' 3"
173 sq/ft width 15' 9" x depth 11'
10 sq/ft width 2' x depth 5' 3"
Porch - Front:
121 sq/ft width 4' x depth 30' 3"
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Additional Use License
|Additional Use License.|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
|Unlimited Use License
|Unlimited Use License.|
*Alternate Foundations may take time to prepare.
