This plan can be customized
Full Specs & Features
Depth : 46'
Height : 19'
Width : 52'
Basement Unfinished: 1046 sq/ft

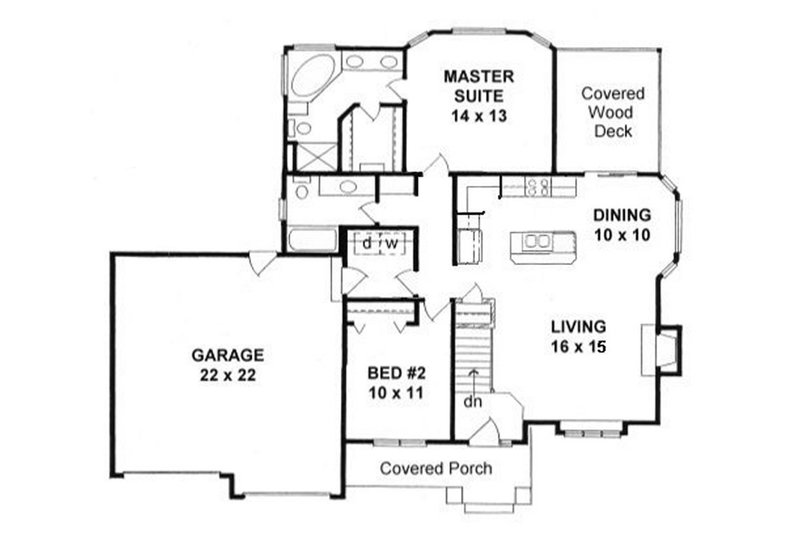

First Floor: 1150 sq/ft
Garage: 505 sq/ft
Primary Pitch : 6:12
Roof Framing : Trusses
Secondary Pitch : 9:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Family Room Keeping Room
Front Entry Garage
Suited For Corner Lot
Suited For Narrow Lot
Covered Front Porch
Covered Rear Porch
67 sq/ft width 8' 9" x depth 7' 8"
120 sq/ft width 10' x depth 12'
132 sq/ft width 11' x depth 12'
33 sq/ft width 5' 3" x depth 6' 4"
What's Included In This Plan Set
- 1/4" scale fully dimensioned Foundation/Basement Plan - Also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. Extra Items like fireplaces and wet bars are indicated as "optional".
- 1/4" scale fully dimensioned Floor Plan - In order to simplify construction, We use the most comprehensive dimensioning method in the industry.
- 1/4" scale Front, Side and Rear Elevations - 1/4 inch scale elevations all the way around clarifies construction and helps with estimating materials and costs.
- Roof plan - An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
- Electrical - Shown right on the floor plan, switches and outlets are located using standards of the National Electrical Code.
- Kitchen Cabinet Details, Wall section, Stair and Fireplace Details - All drawn 1/2" scale provide easy viewing of the specific area's.
- Building Cross Section - Complete front to back cross section with basic framing details.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
