PLAN 417-447

Key Specs

6405
sq ft

5
Beds

6.5
Baths

2
Floors

4
Garages

Select Plan Set Options

What's included?

	Audio Video Design $85.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $33.15 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $170.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $2677.50

You save $472.50

(15% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-447

Key Specs

6405
sq ft

5
Beds

6.5
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Floor Plans

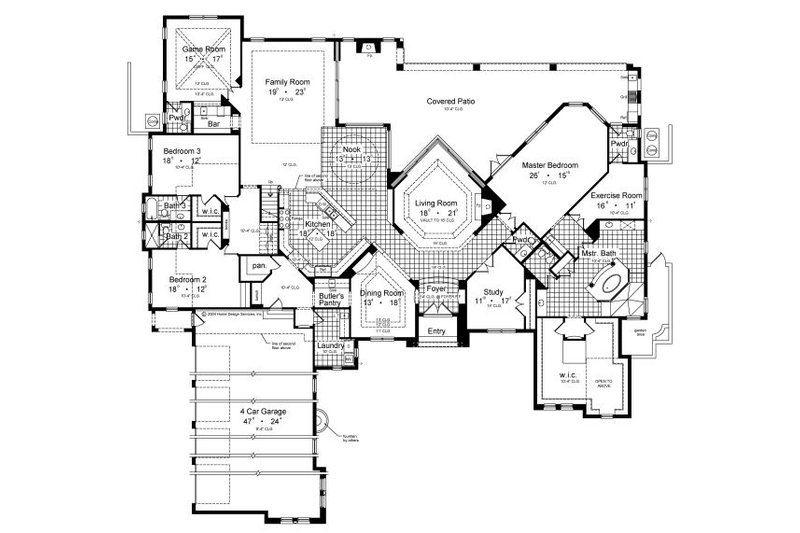

Floor Plan - Main Floor

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 113'
Width : 104' 6"

Area

First Floor: 5251 sq/ft
Garage: 1314 sq/ft
Second Floor: 1154 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 12'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 6:12
Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Concrete block

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Media Room
Storage Area

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Rear Porch

Jack & Jill Bath

Rooms

Bedroom 2:

216 sq/ft width 18' x depth 12'

Bedroom 3:

221 sq/ft width 18' x depth 12' 4"

Bedroom 4:

204 sq/ft width 17' x depth 12'

Bedroom 5:

260 sq/ft width 15' 4" x depth 17'

Den:

204 sq/ft width 11' 10" x depth 17' 3"

Dining Room:

239 sq/ft width 13' 4" x depth 18'

Exercise Room:

186 sq/ft width 16' 6" x depth 11' 4"

Family Room:

437 sq/ft width 19' x depth 23'

Garage:

1159 sq/ft width 47' 8" x depth 24' 4"

Kitchen:

336 sq/ft width 18' x depth 18' 8"

Laundry Room:

98 sq/ft width 8' 4" x depth 11' 10"

Living Room:

378 sq/ft width 18' x depth 21'

Master Bathroom:

439 sq/ft width 22' 2" x depth 19' 10"

Master Bedroom:

412 sq/ft width 26' 1" x depth 15' 10"

Media Room:

334 sq/ft width 19' 8" x depth 17'

Sitting Area:

81 sq/ft width 9' x depth 9'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Questions? Call 1-877-222-1762

Plan Set

PDF Set : $2677.50	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build : $5355.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set : $850.00	One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Audio Video Design : $85.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $33.15	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $170.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
