PLAN 48-642

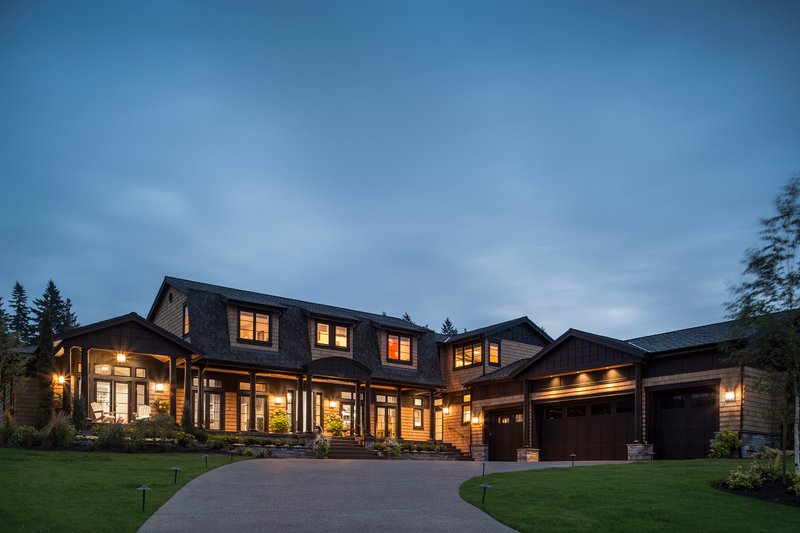

Colonial Style Home, Front elevation photo

Front View - 4900 square foot Colonial home

Outdoor Kitchen - 4900 square foot Colonial home

Rear View - 4900 square foot Colonial home

Great Room - 4900 square foot Colonial home

Kitchen - 4900 square foot Colonial home

Dining Room - 4900 square foot Colonial home

Utility - 4900 square foot Colonial home

Pantry/Bath - 4900 square foot Colonial home

Hall Bath - 4900 square foot Colonial home

Master Bedroom - 4900 square foot Colonial home

Master Bathroom - 4900 square foot Colonial home

Master WIC - 4900 square foot Colonial home

Upstairs - 4900 square foot Colonial home

Bonus Room - 4900 square foot Colonial home

Bathroom - 4900 square foot Colonial home

Upstairs Bedroom - 4900 square foot Colonial home

Upstairs Bathroom - 4900 square foot Colonial home

Key Specs

4903
sq ft

4
Beds

5
Baths

2
Floors

4
Garages

Select Plan Set Options

What's included?

	Right-Reading Reverse $175.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $45.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $100.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $39.00 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $200.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$2431.00

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 48-642

Key Specs

4903
sq ft

4
Beds

5
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Floor Plans

Floor Plan - Main Floor

Reverse

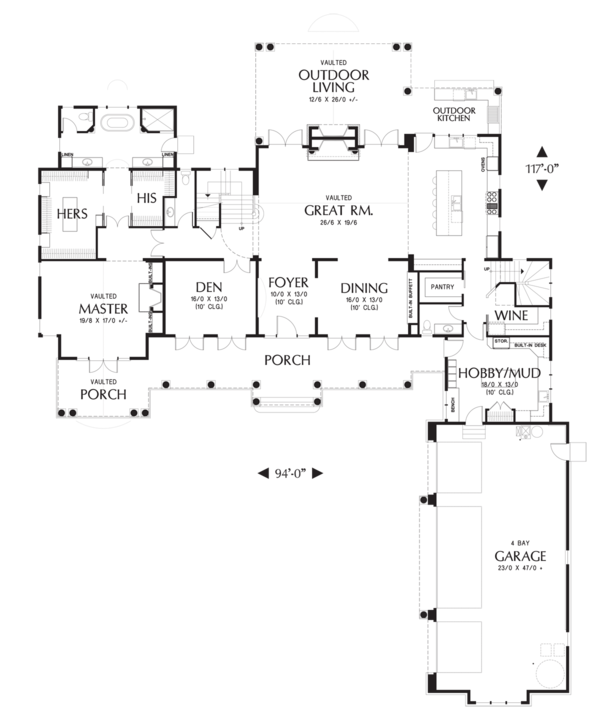

Colonial style house plan, main level floor plan

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

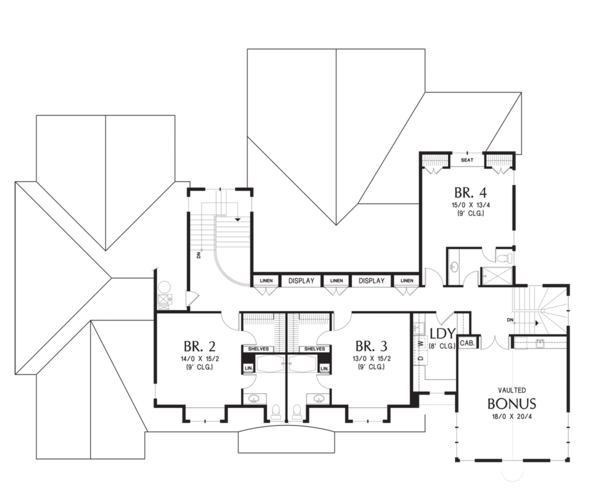

Upper Level Flloor Plan - 4900 square foot Colonial

Full Specs & Features

Dimension

Depth : 117'
Height : 25'
Width : 94'

Area

Bonus: 394 sq/ft
First Floor: 3382 sq/ft
Garage: 1165 sq/ft
Second Floor: 1521 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12
Roof Framing : Stick frame
Roof Type : Shake

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone
Framing : 2x6

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Mud Room
Play Flex Room
Upstairs Laundry
Wine Cellar

Garage Features

Side Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill

Rooms

Bedroom 2:

width 14' x depth 15' 2"

Bedroom 3:

width 13' x depth 15' 2"

Bedroom 4:

width 15' x depth 13' 4"

Bonus:

394 sq/ft width 18' x depth 20' 4"

Den:

width 16' x depth 13'

Dining Room:

width 16' x depth 13'

Foyer:

width 10' x depth 13'

Garage:

1165 sq/ft width 23' x depth 47'

Great Room:

width 26' 6" x depth 19' 6"

Hobby/Mud Room:

width 18' x depth 13'

Kitchen:

width 15' x depth 21' 6"

Master Suite:

width 19' 8" x depth 17'

Rear Porch:

width 12' 6" x depth 26'

What's Included In This Plan Set

See a sample plan set

Exterior Elevations

In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan

The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

Floor Plan(s)

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Roof Plan

Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)

Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.

» See important information before purchasing.

Questions? Call 1-877-222-1762

Plan Set

PDF Set : $2431.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $2606.00	5 printed plan sets mailed to you.
5 Copy and PDF Set : $2656.00	5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $4862.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set : $2081.00	One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $348.00	Ideal for level lot, single layer concrete poured directly on grade.
Basement: $566.00	Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Right-Reading Reverse : $175.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $45.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $200.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
