PLAN 455-762
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

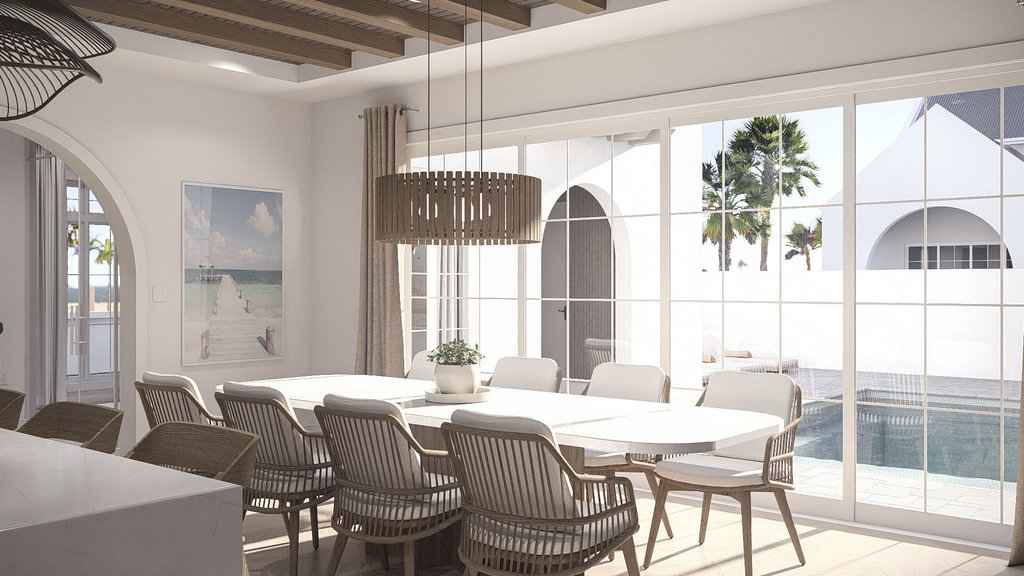

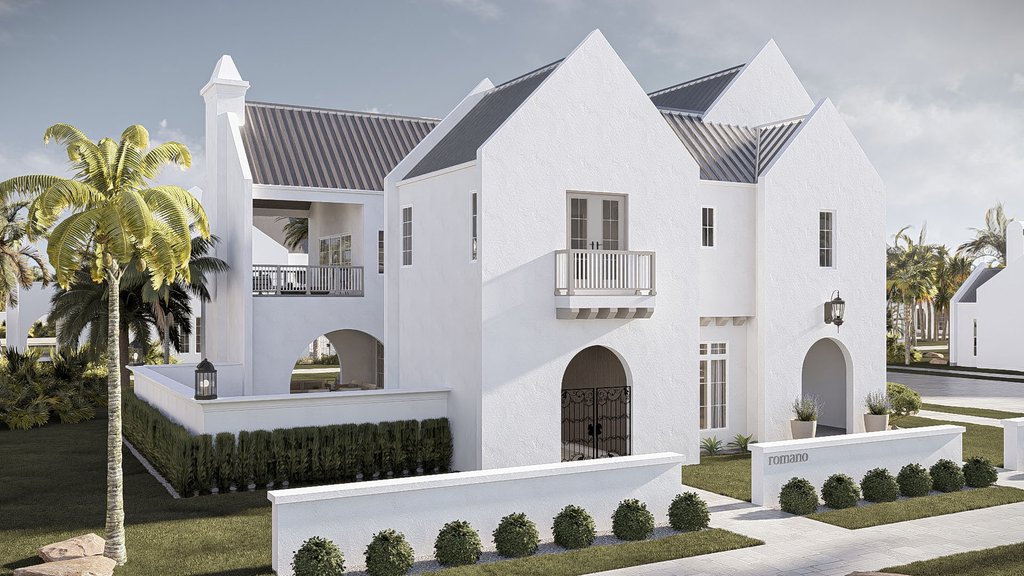

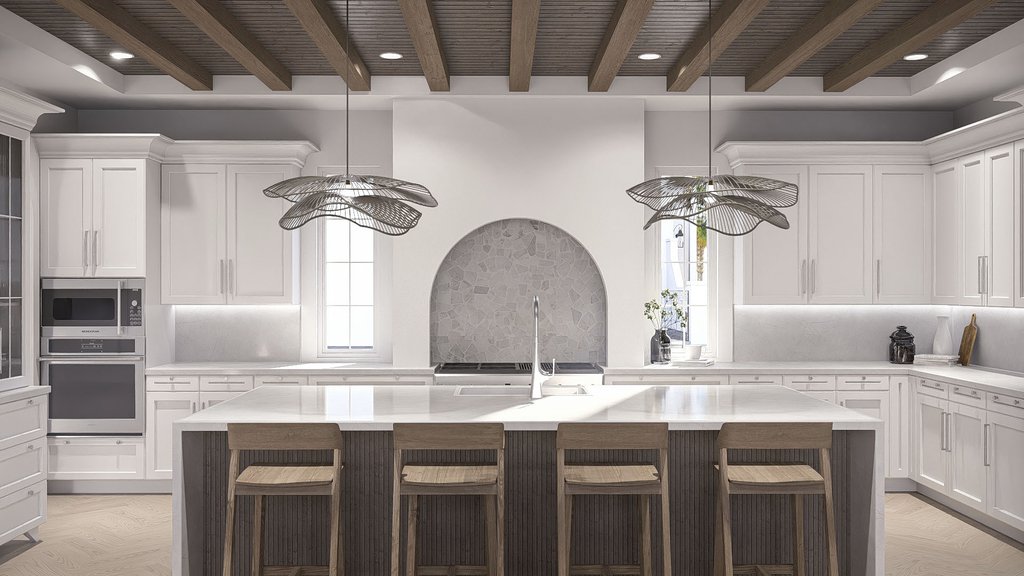

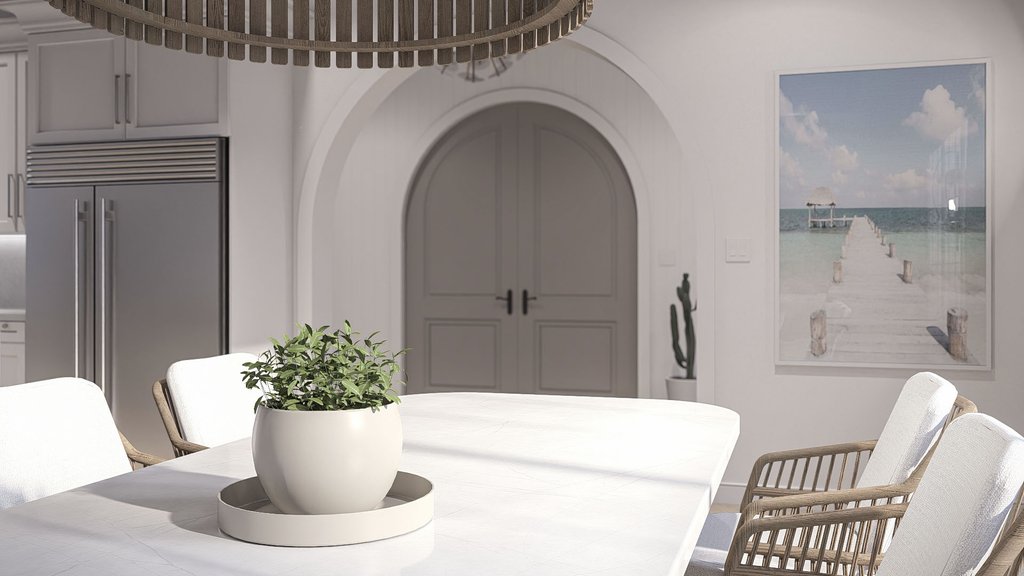

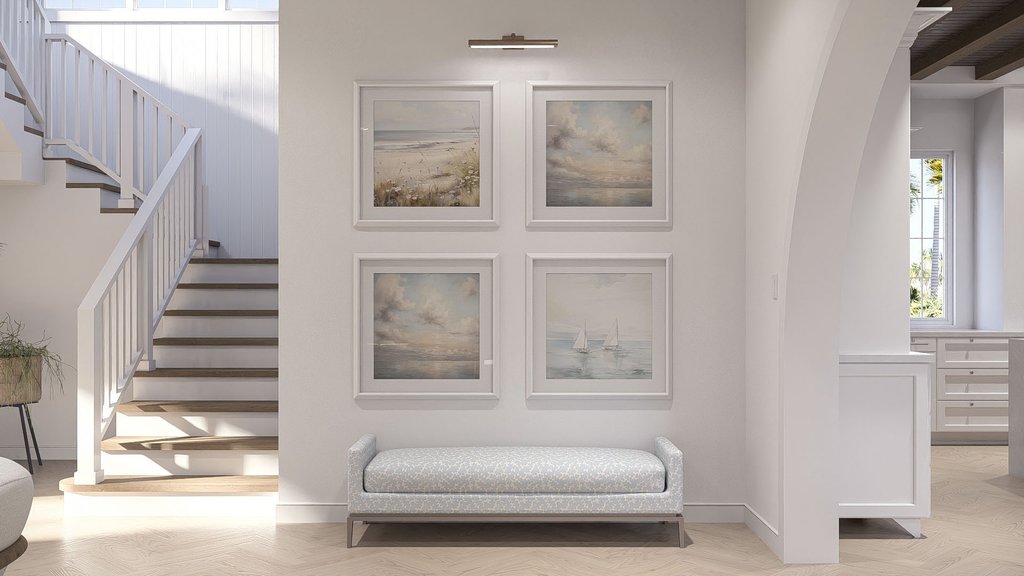

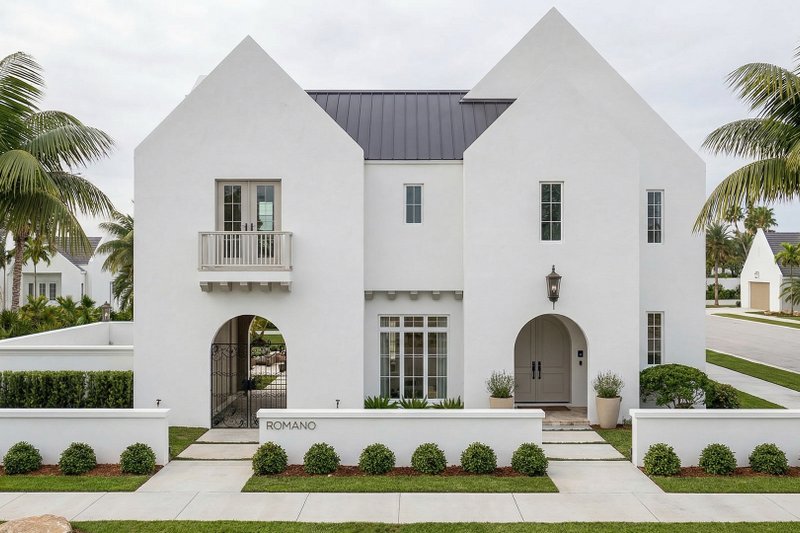

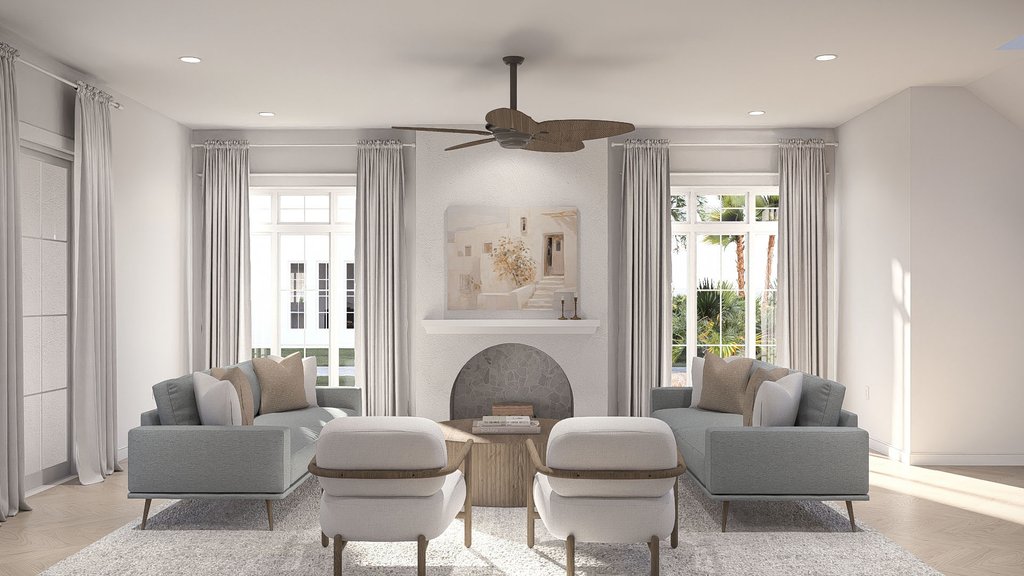

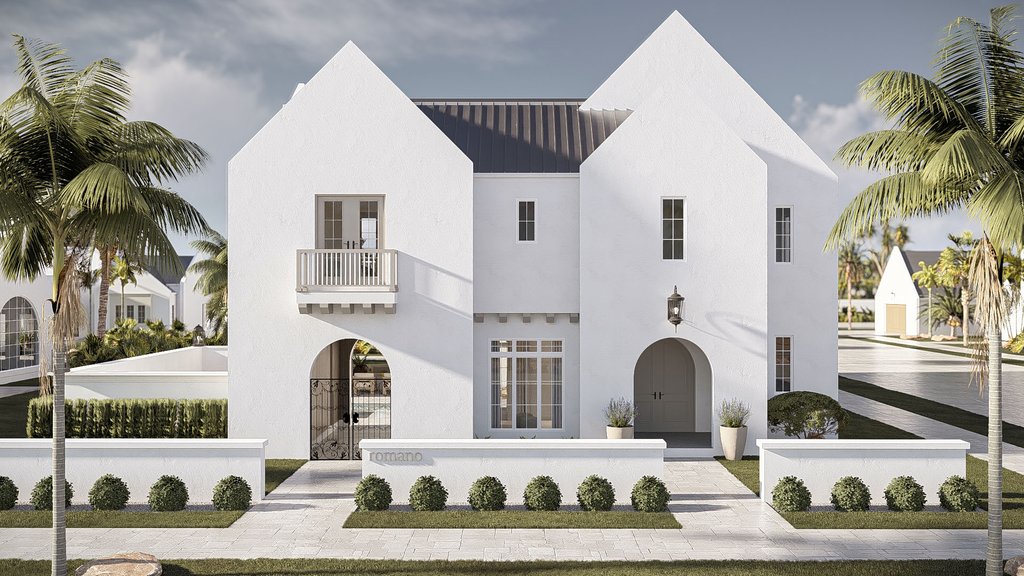

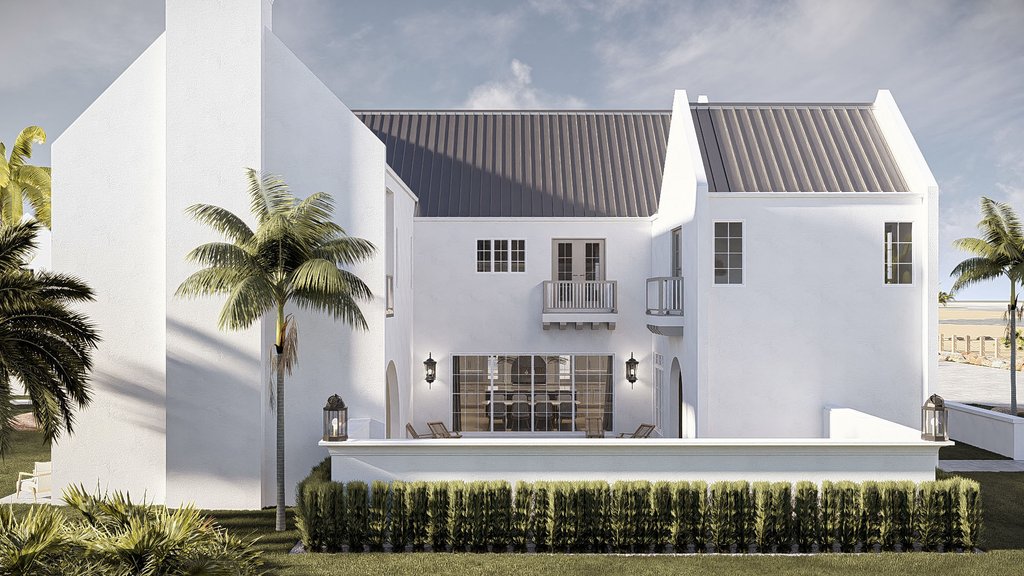

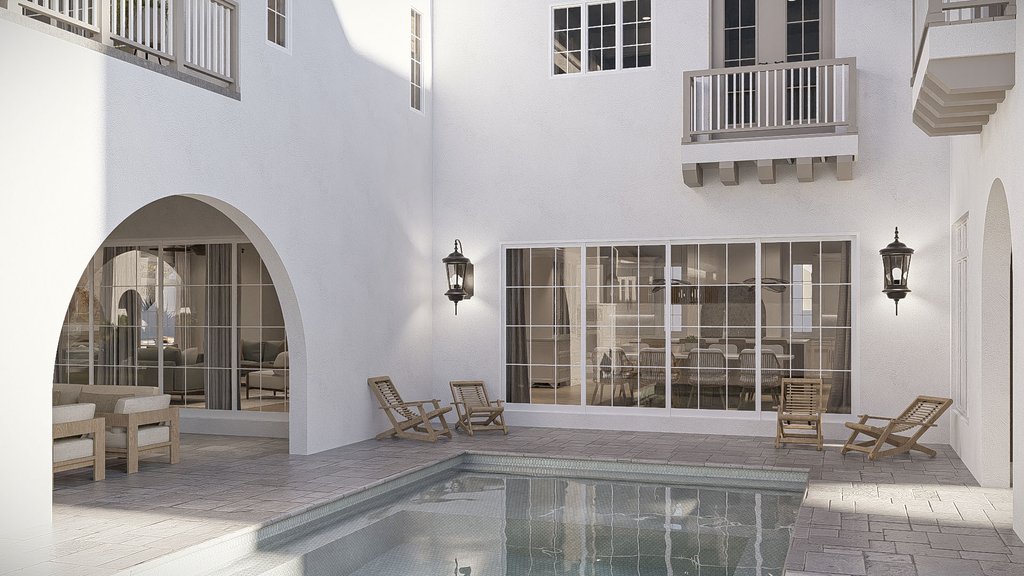

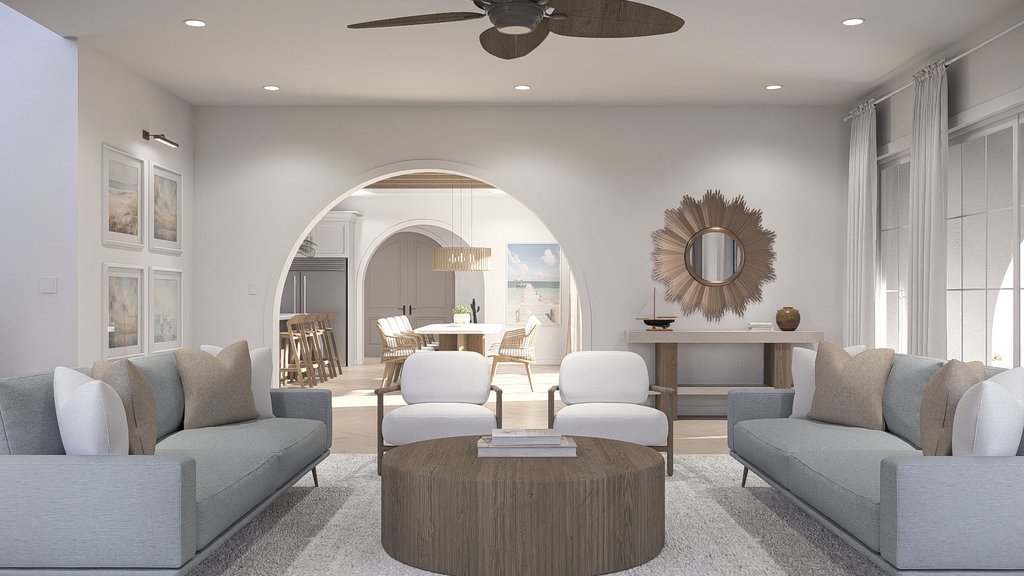

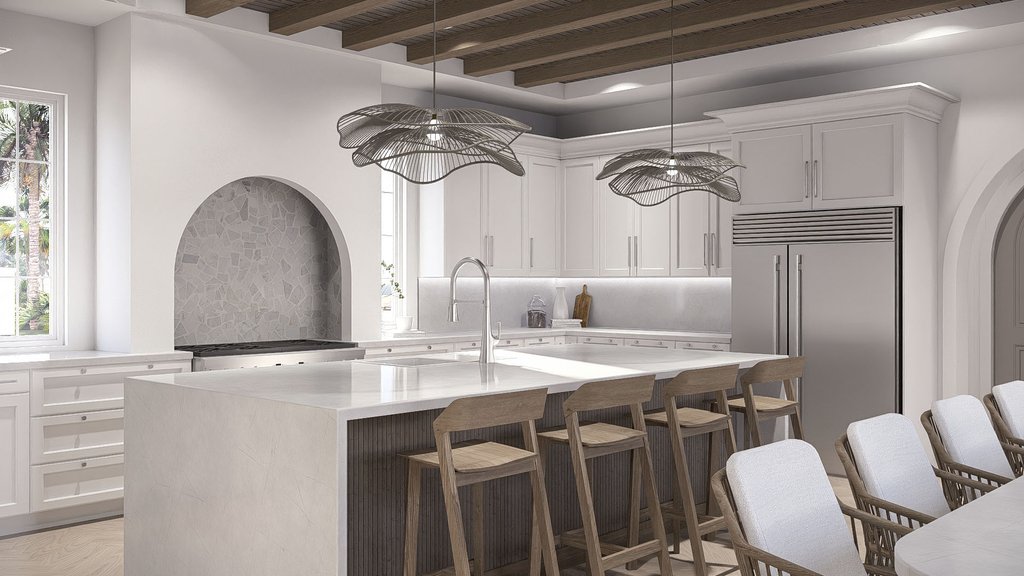

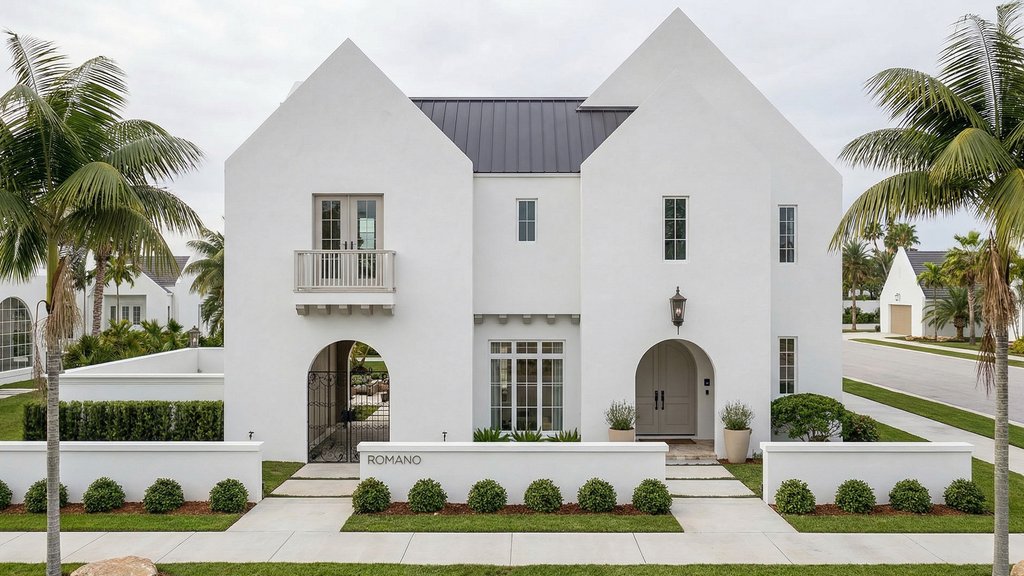

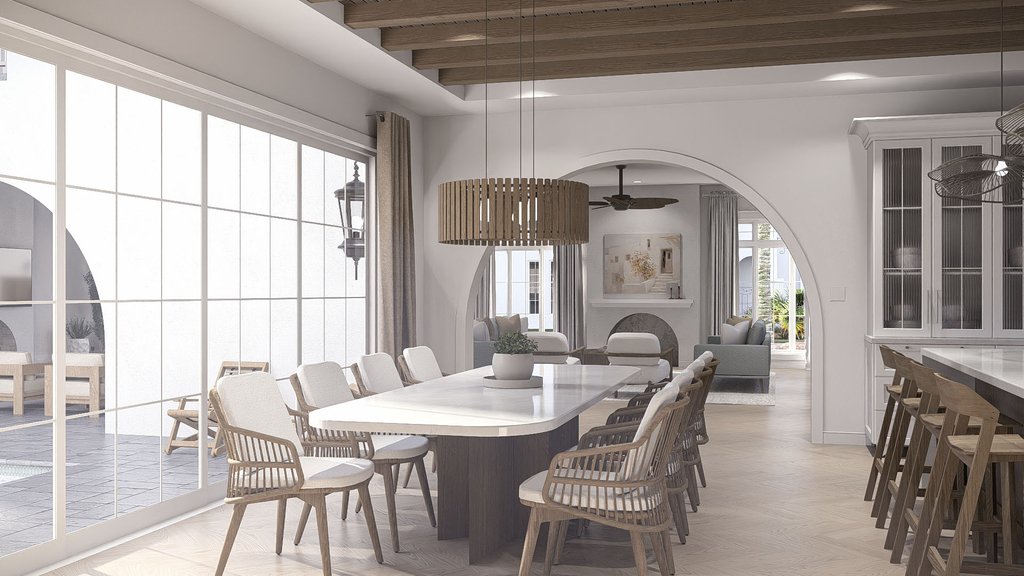

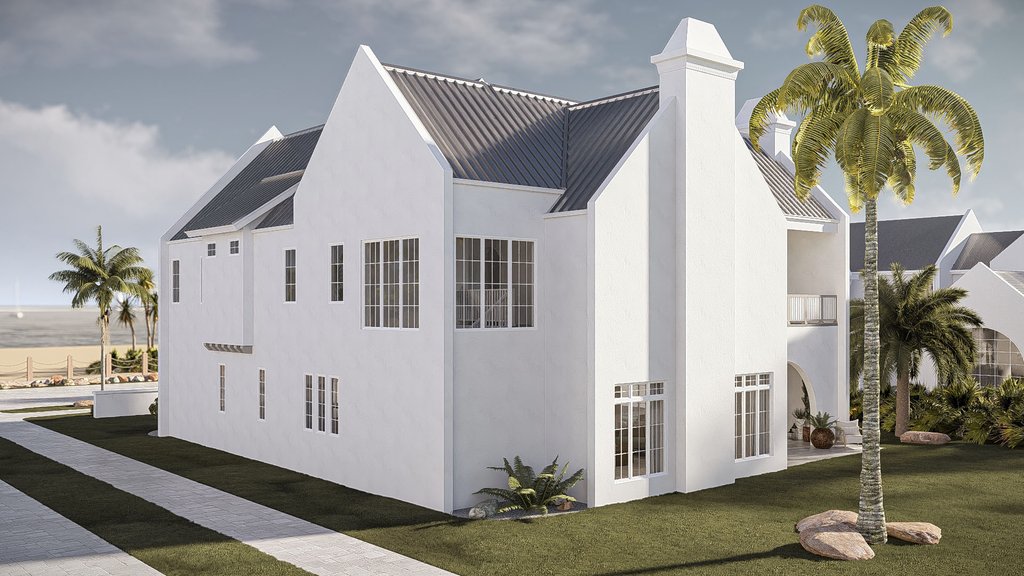

This 2-story Bermuda-style home offers 3,827 sq. ft., with 4 bedrooms and 5 bathrooms, combining a clean coastal look with a layout centered around privacy and courtyard living. A covered front porch leads into the entry, where a private office is positioned just off to the left—ideal for a quiet workspace near the front of the home. Moving further in, the layout opens into a combined dining room and kitchen, with a pantry set off to the side for convenient storage. At the rear, a spacious great room serves as the main gathering area. From here, a covered patio extends off to the left and connects directly to the courtyard, creating a strong indoor-outdoor relationship. The courtyard itself is also accessible from a breezeway along the front of the home, offering multiple points of entry and a more private outdoor setting. Upstairs, a central loft features a Juliet balcony overlooking the courtyard, adding light and openness to the second level. Bedrooms 3 and 4 are located nearby and share a bathroom. At the rear of the home, the master suite is positioned for privacy and includes a covered deck overlooking the courtyard. At the front, a separate suite provides flexibility for guests or extended stays, complete with its own Juliet balcony facing the courtyard. With its simple rooflines, bright exterior, and a layout organized around connected outdoor spaces, this design offers a practical and well-balanced approach to Bermuda-style living.
Floor Plans

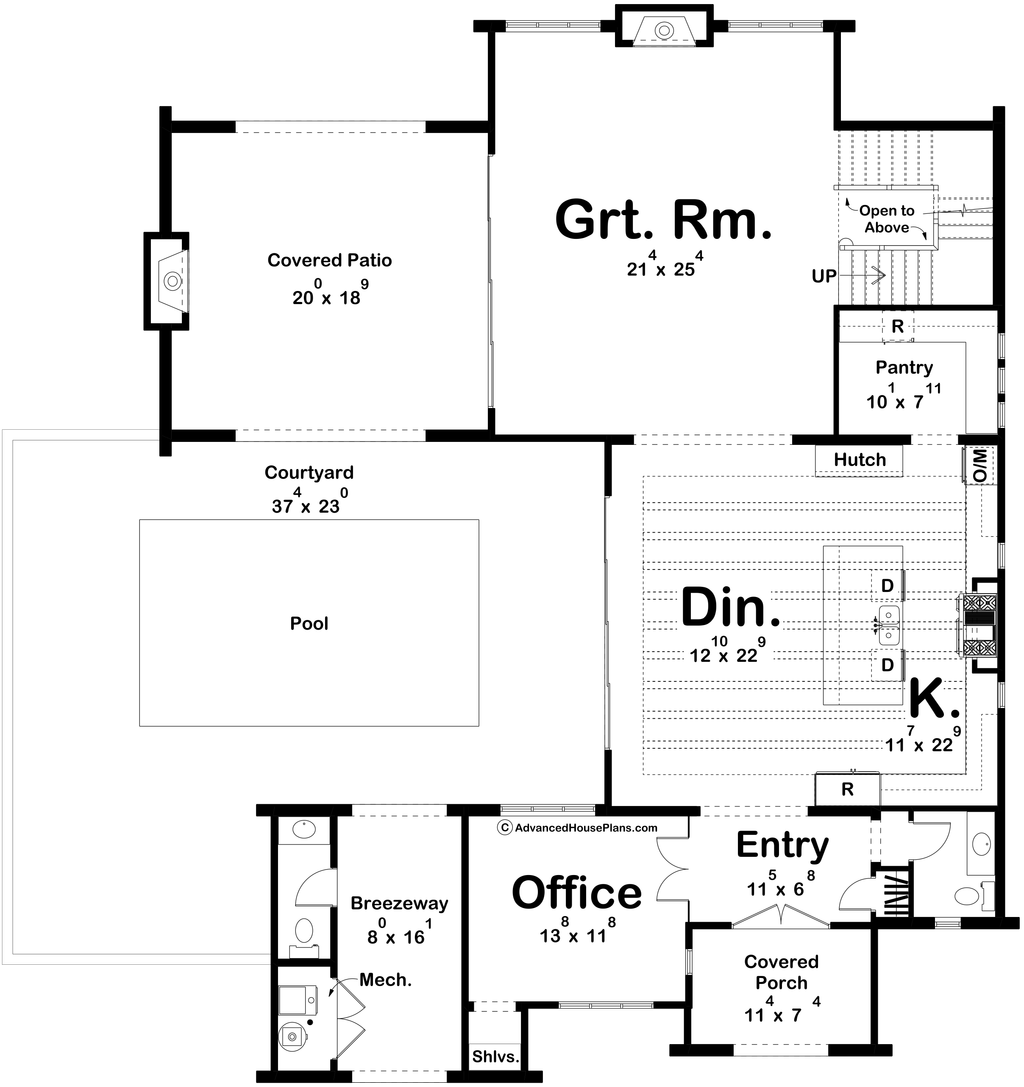

Floor Plan - Main Floor

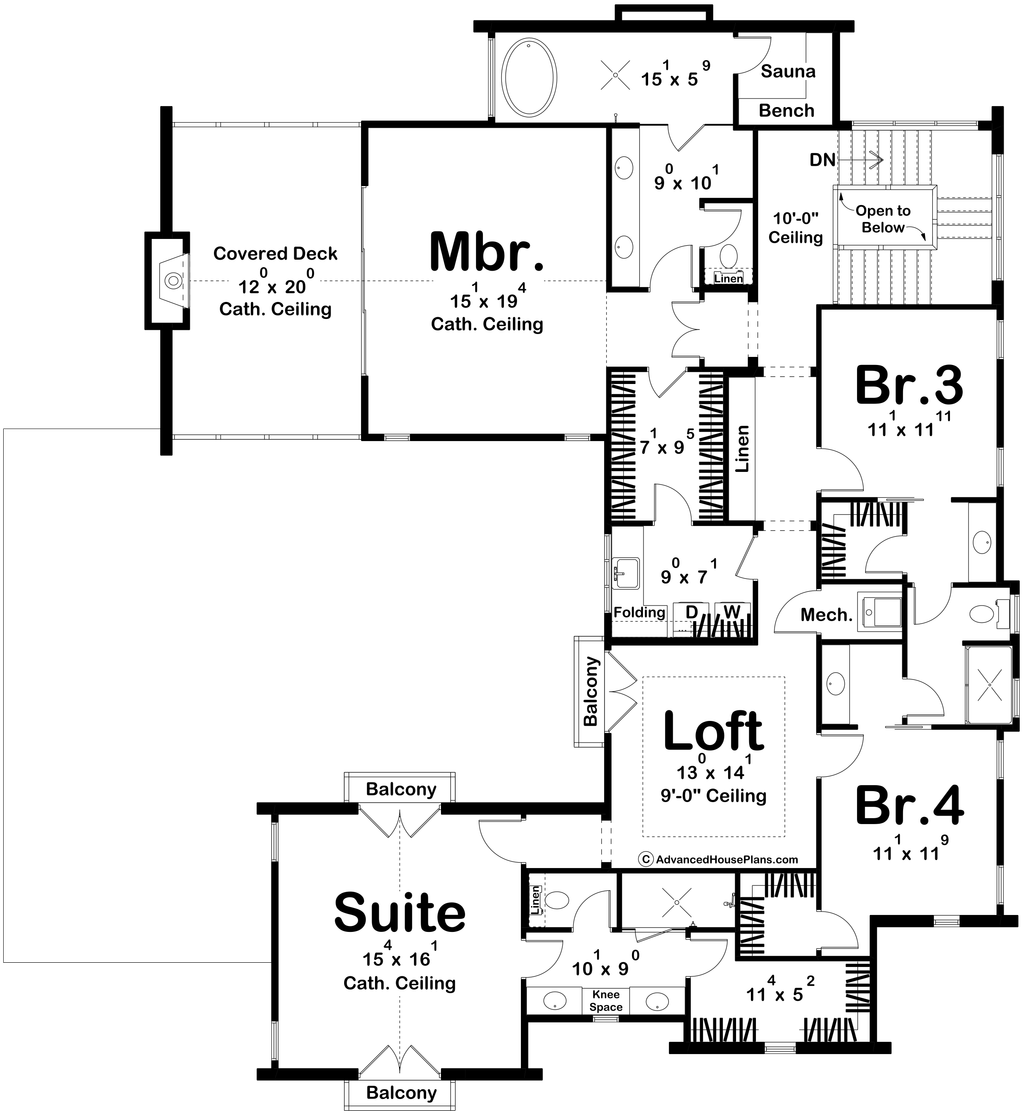

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 67' 8"
Height: 35' 3"
Width: 64'
Area
Decks: 253 sq/ft
Main Floor: 1758 sq/ft
Patios: 1564 sq/ft
Upper Floor: 2069 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details: The kitchen and dining room have a tray ceiling. The loft has a 9'-0" tray ceilings. The master bedroom, covered deck, and suite have cathedral ceilings.
Main Ceiling: 10'
Upper Ceiling Ft: 8'
Roof
Primary Pitch: 12/12
Roof Framing: Truss
Secondary Pitch: 8/12
Exterior Wall Framing
Framing: 2x4
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Upstairs Laundry
Outdoor Spaces
Balcony
Breezeway
Courtyard
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
More
Additional Half Bath
Jack & Jill Bath
Suited For Vacation Home
Unusual Shape
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Questions? Call 1-877-222-1762
Plan Set
PDF Set:
$1999.00
$1999.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$2294.00
$2294.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$2598.00
$2598.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$2998.00
$2998.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$299.00
$299.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$299.00
$299.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Walk Out Basement:
$299.00
$299.00
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$299.00
$299.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$299.00
$299.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$59.00
$59.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$299.00
$299.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
