PLAN 413-114

Home > Style > Tudor House Plans

Key Specs

3797
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This tudor design floor plan is 3797 sq ft and has 4 bedrooms and 3 bathrooms.

Floor Plans

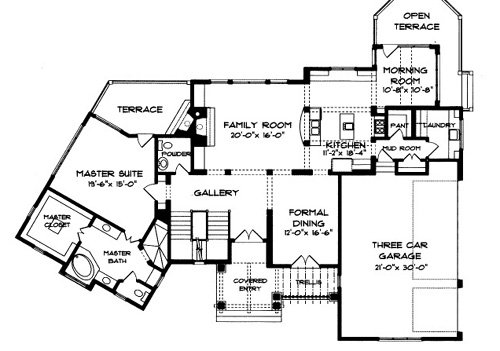

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

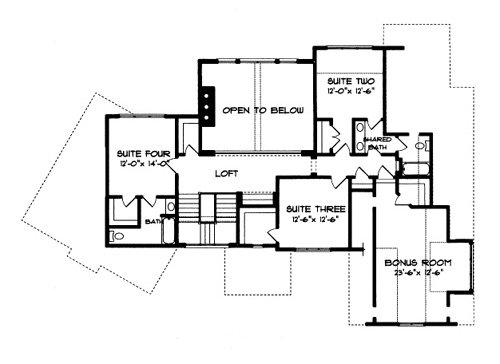

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 64'

Height : 33'

Width : 80' 2"

Area

First Floor: 2052 sq/ft

Second Floor: 1745 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Loft

Master Sitting Area

Play Flex Room

Sunroom

Garage Features

Oversized Garage

Side Entry Garage

Outdoor Spaces

Balcony

Covered Front Porch

Screened Porch

Rooms

Bedroom 2:

150 sq/ft width 12' x depth 12' 6"

Bedroom 3:

156 sq/ft width 12' 6" x depth 12' 6"

Bedroom 4:

168 sq/ft width 12' x depth 14'

Dining Room:

198 sq/ft width 12' x depth 16' 6"

Family Room:

320 sq/ft width 20' x depth 16'

Garage:

630 sq/ft width 21' x depth 30'

Kitchen:

204 sq/ft width 11' 2" x depth 18' 4"

Master Suite:

292 sq/ft width 19' 6" x depth 15'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

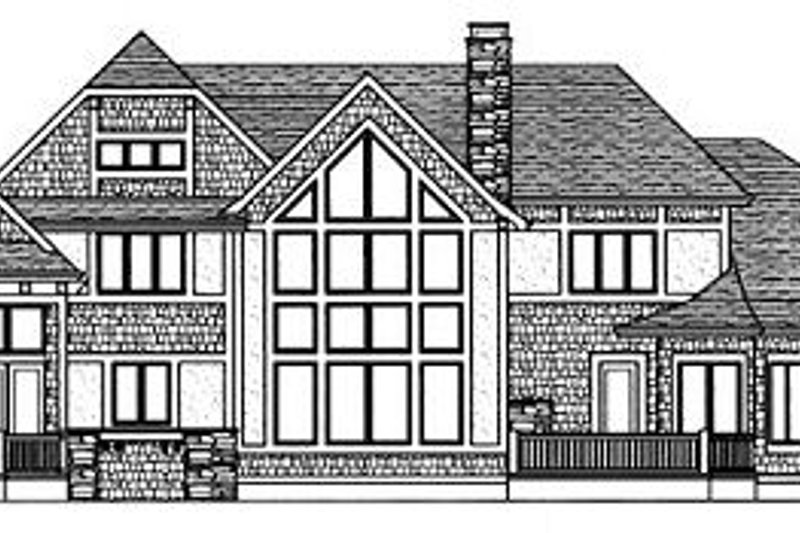

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$1700.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$2431.00

5 printed plan sets mailed to you.

CAD Set:
$2431.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$170.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$340.00

Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement:
$510.00

Ideal for sloping lot, lower level of home partially underground.

Additional Options

Additional Construction Sets:
$85.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$170.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
