PLAN 930-331

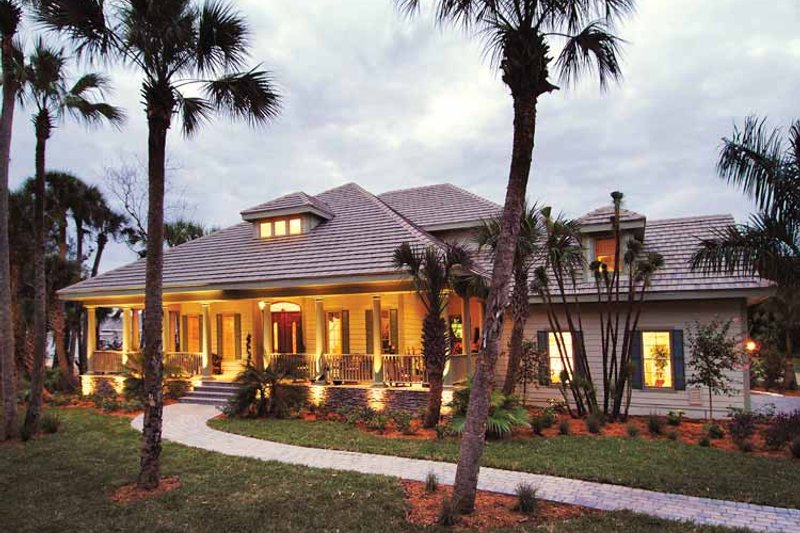

Country Exterior - Front Elevation Plan #930-331
Country Exterior - Front Elevation Plan #930-331
Country Exterior - Rear Elevation Plan #930-331
Country Exterior - Front Elevation Plan #930-331
Country Exterior - Rear Elevation Plan #930-331
Country Exterior - Front Elevation Plan #930-331
Country Exterior - Front Elevation Plan #930-331
Country Exterior - Rear Elevation Plan #930-331
Country Exterior - Rear Elevation Plan #930-331
Country Interior - Bathroom Plan #930-331
Country Interior - Bedroom Plan #930-331
Country Interior - Dining Room Plan #930-331
Country Interior - Kitchen Plan #930-331
Country Interior - Kitchen Plan #930-331
Country Interior - Family Room Plan #930-331
Country Interior - Family Room Plan #930-331
Country Interior - Master Bedroom Plan #930-331
Country Interior - Other Plan #930-331
Country Interior - Other Plan #930-331

Key Specs

sq ft





Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
NOW $2303.10
You save $255.90
(10% savings)
Sale ends soon!
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 930-331

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description

One of the defining characteristics of Cadenwood is its front porch. A few rocking chairs, a table or two, and the porch serves as a summer home where evenings can be spent enjoying a cool drink and good friends. The theme of casual comfort continues once you enter the home as well.

As you pass through the foyer and under the second floor bridge, you're greeted by the spectacularly inviting great room. The soaring stepped ceiling, carved coffers, hardwood floors, and sky-high windows of the great room epitomize the casual, comfortable elegance that makes Cadenwood the perfect entertainment home. Tucked away in the rear corner of the first floor is a spacious master suite. With its limited access, it is extremely private. On the opposite side of the plan, the kitchen and nook form a generous family zone while above, two additional bedrooms and a spacious bonus room provide houseguests, or younger family members as the case may be, with their own private retreat.

Full Specs & Features

Depth : 64'
Height : 31' 4"
Width : 77' 2"

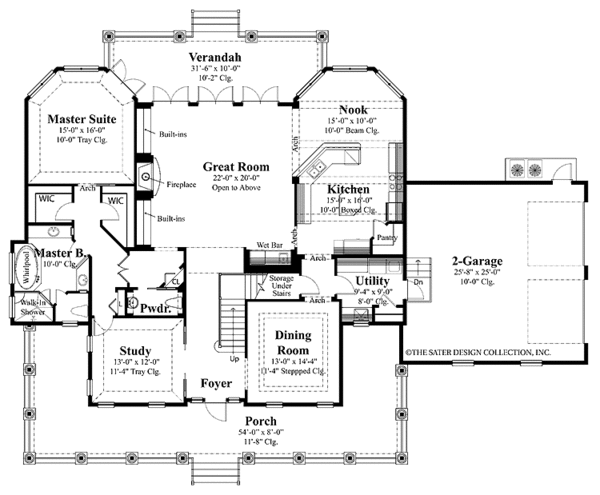

First Floor: 2253 sq/ft

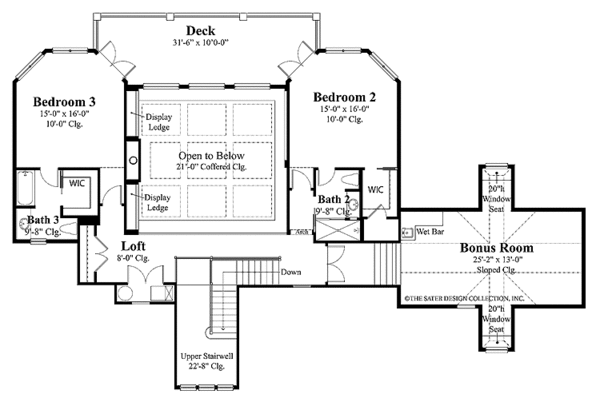

Second Floor: 1510 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 7:12
Exterior Wall Framing
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Unfinished Future Space
Outdoor Spaces
Covered Front Porch

Bedroom 2:

240 sq/ft width 15' x depth 16'

Bedroom 2 Closet:

31 sq/ft width 4' 10" x depth 6' 6"

Bedroom 3:

240 sq/ft width 15' x depth 16'

Bedroom 3 Closet:

30 sq/ft width 4' 10" x depth 6' 4"

Bonus Room - Finished:

484 sq/ft width 25' 2" x depth 13'


639 sq/ft


641 sq/ft width 25' 8" x depth 25'

Great Room:

440 sq/ft width 22' x depth 20'


240 sq/ft width 15' x depth 16'

Master Bathroom:

145 sq/ft width 13' 8" x depth 10' 8"

Master Closet:

31 sq/ft width 6' x depth 5' 2"

Master Closet Two:

39 sq/ft width 4' 6" x depth 8' 8"

Master Suite:

240 sq/ft width 15' x depth 16'


150 sq/ft width 15' x depth 10'


156 sq/ft width 13' x depth 12'


288 sq/ft

What's Included In This Plan Set

Sater Design Collection charges $50.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please call if you would like to order a Plan Modification quote from the Sater Design Collection.

Some of Sater Design Collection's ready-made house plans are not for sale in Lee and Collier Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.

Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable).

Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location.

Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

Reflected Ceiling Plan: One of Sater home’s most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.

Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings.

Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.

Building Section & Details: This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.

Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.

Electrical Plan: This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.

» See important information before purchasing.
Questions? Call 1-877-222-1762
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, lower level of home partially or fully underground.


Wood 2x6:
Wood 2x6

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
A list of building supplies needed to construct the infrastructure of your new house.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
