PLAN 137-328
Photographs may show modified designs.
- Jump to:
- All (8)
- Floor plans (3)
Get Personalized Help
Key Specs
3618
sq ft
4
Beds
4
Baths
2
Floors
3
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 137-328
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans

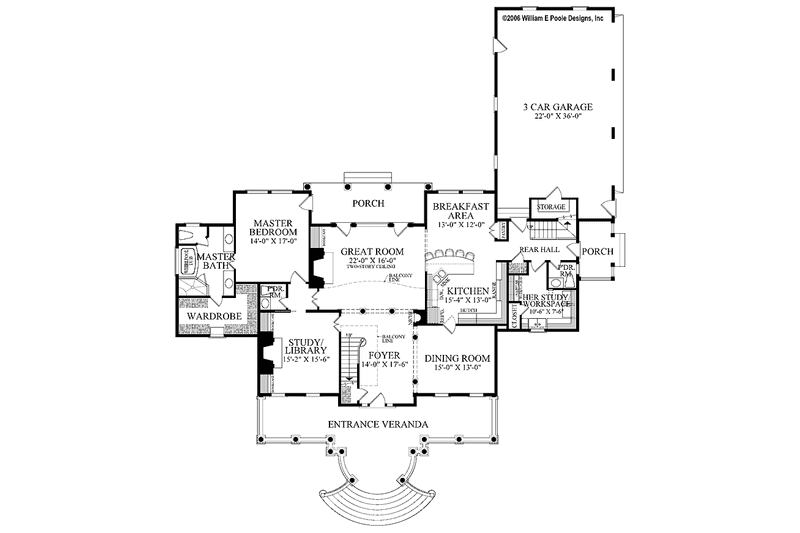

Floor Plan - Main Floor

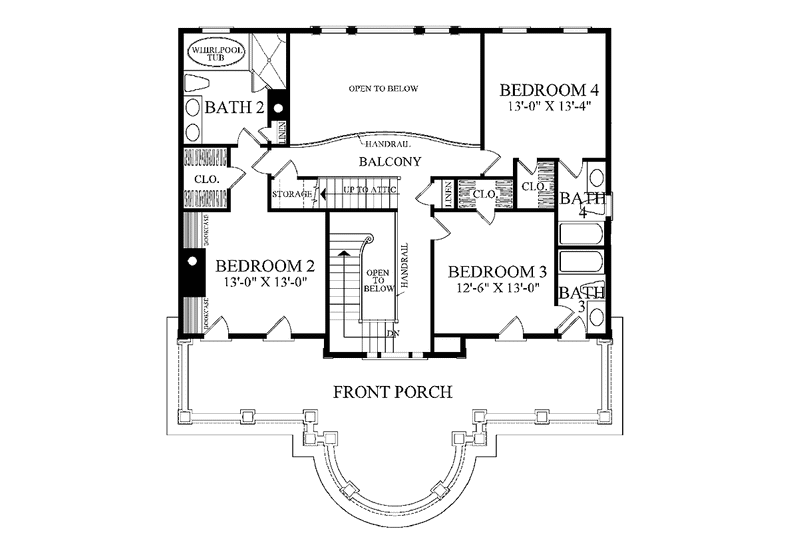

Floor Plan - Upper Floor

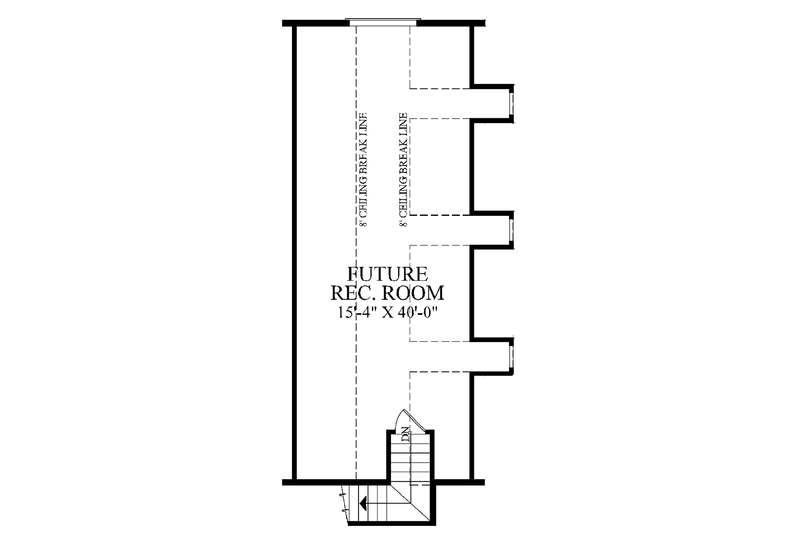

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 93' 4"
Height : 32'
Width : 84' 2"
Area
Bonus: 691 sq/ft height 10'
First Floor: 2411 sq/ft height 10'
Second Floor: 1207 sq/ft height 10'
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
More
Wheelchair Adaptable
Rooms
Bedroom 2:
169 sq/ft width 13' x depth 13'
Bedroom 3:
162 sq/ft width 12' 6" x depth 13'
Bedroom 4:
173 sq/ft width 13' x depth 13' 4"
Bonus Room - Finished:
613 sq/ft width 15' 4" x depth 40'
Breakfast Area:
156 sq/ft width 13' x depth 12'
Dining Room:
195 sq/ft width 15' x depth 13'
Foyer:
70 sq/ft width 4' x depth 17' 6"
Garage:
792 sq/ft width 22' x depth 36'
Great Room:
352 sq/ft width 22' x depth 16'
Kitchen:
199 sq/ft width 15' 4" x depth 13'
Master Bedroom:
238 sq/ft width 14' x depth 17'
Study:
235 sq/ft width 15' 2" x depth 15' 6"
Work Area:
78 sq/ft width 10' 6" x depth 7' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

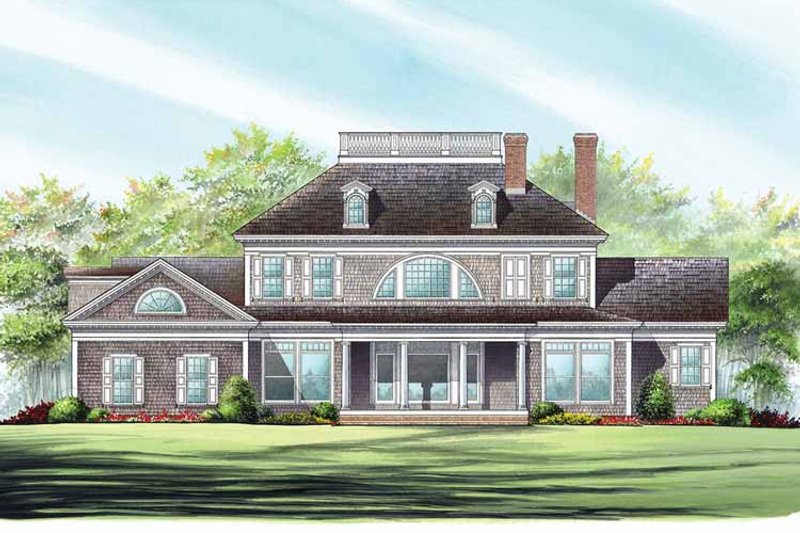

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Rendering(s): Designer’s rendering of front elevation
Plan Set
$782.00
$858.50
$1020.00
$1275.00
$680.00
Foundation
$0.00
Framing
$0.00
Additional Options
$46.75
$140.25
$335.75
$33.15
$140.25
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
