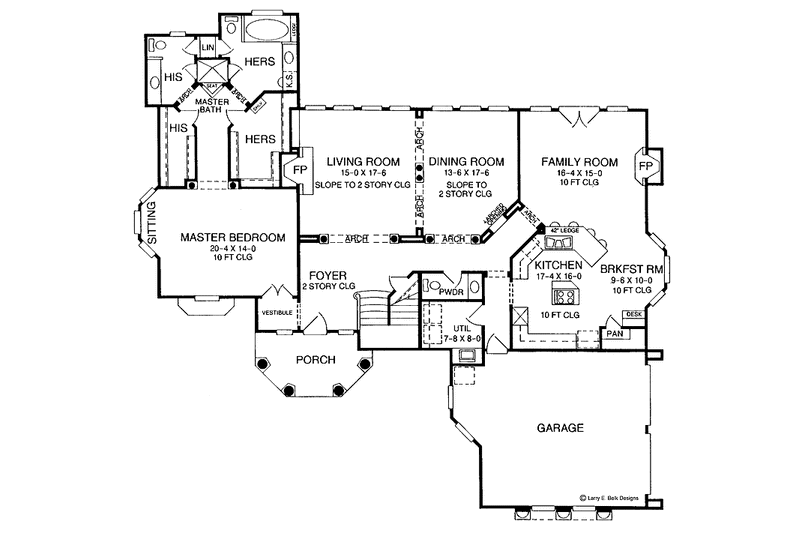

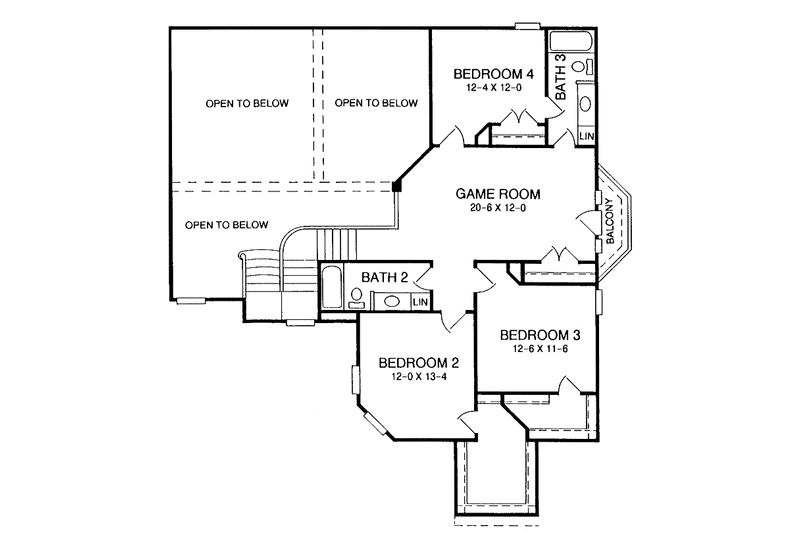

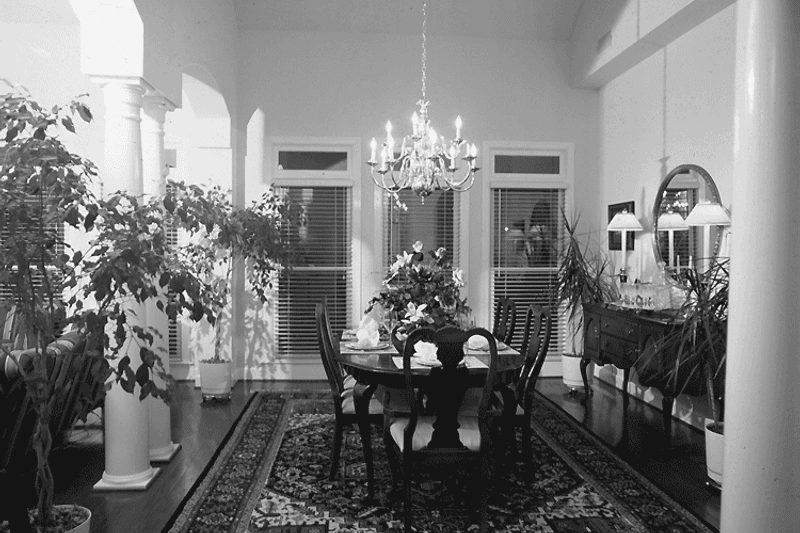

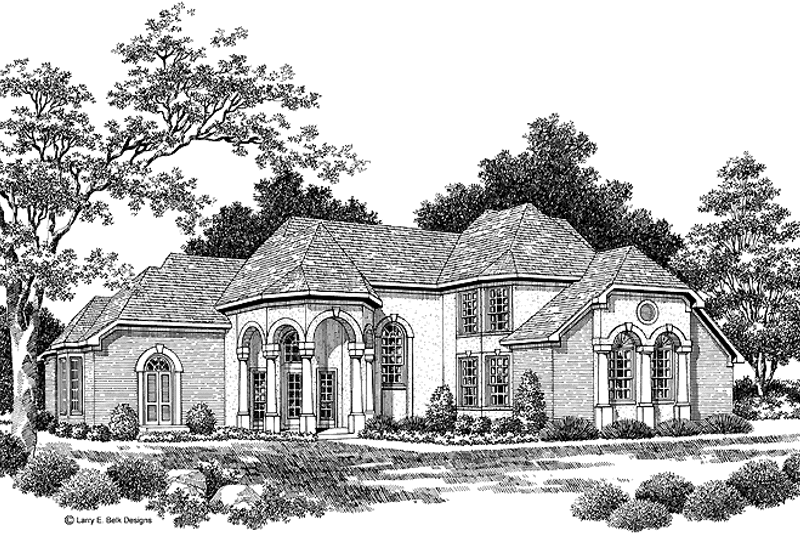

This European-style, brick-and-stucco home showcases an arched entry and presents a commanding presence from the curb. Inside, the living room, the dining room and the family room are located at the rear of the home to provide wide-open views of the rear grounds beyond. A colonnade with connecting arches defines the space for a living room with a fireplace and the dining room. The spacious master suite features a relaxing sitting area, His and Hers closets and an extravagant bath. Take special note of the private His and Hers bathrooms. On the second floor, three bedrooms, two baths and a game room complete the home.
159 sq/ft width 12' x depth 13' 4"
143 sq/ft width 12' 6" x depth 11' 6"
147 sq/ft width 12' 4" x depth 12'
95 sq/ft width 9' 6" x depth 10'
236 sq/ft width 13' 6" x depth 17' 6"
512 sq/ft width 20' 6" x depth 25'
244 sq/ft width 16' 4" x depth 15'
Hers Master Bathroom:
96 sq/ft width 9' 8" x depth 10'
His Master Bathroom:
54 sq/ft width 6' 4" x depth 8' 8"
277 sq/ft width 17' 4" x depth 16'
262 sq/ft width 15' x depth 17' 6"
284 sq/ft width 20' 4" x depth 14'
Master Closet - Hers:
94 sq/ft width 7' 8" x depth 12' 4"
Master Closet - His:
46 sq/ft width 4' 6" x depth 10' 4"
61 sq/ft width 7' 8" x depth 8'
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
