PLAN 17-3267
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (2)
Get Personalized Help
Key Specs
3275
sq ft
4
Beds
3
Baths
2
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 17-3267
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans

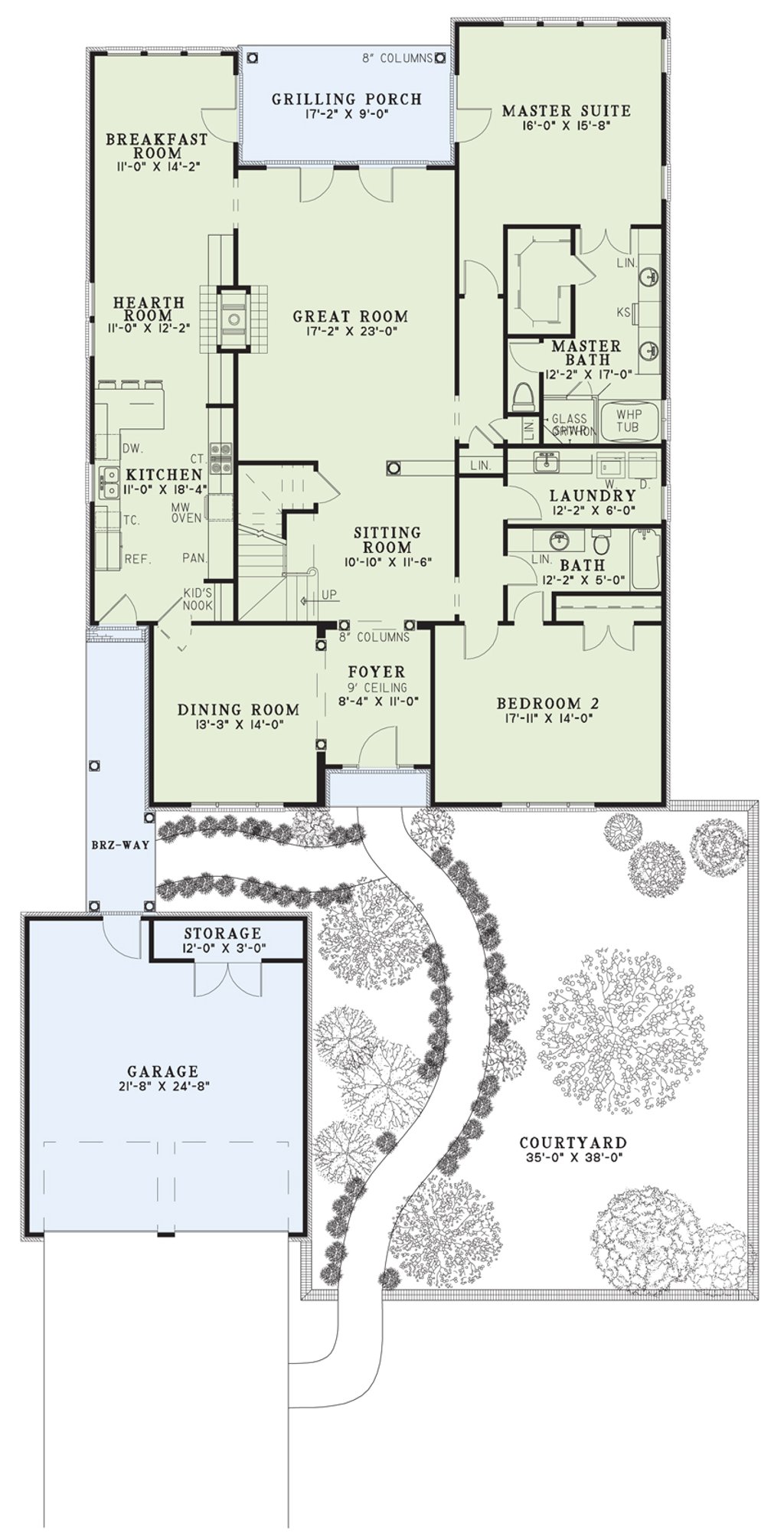

Floor Plan - Main Floor

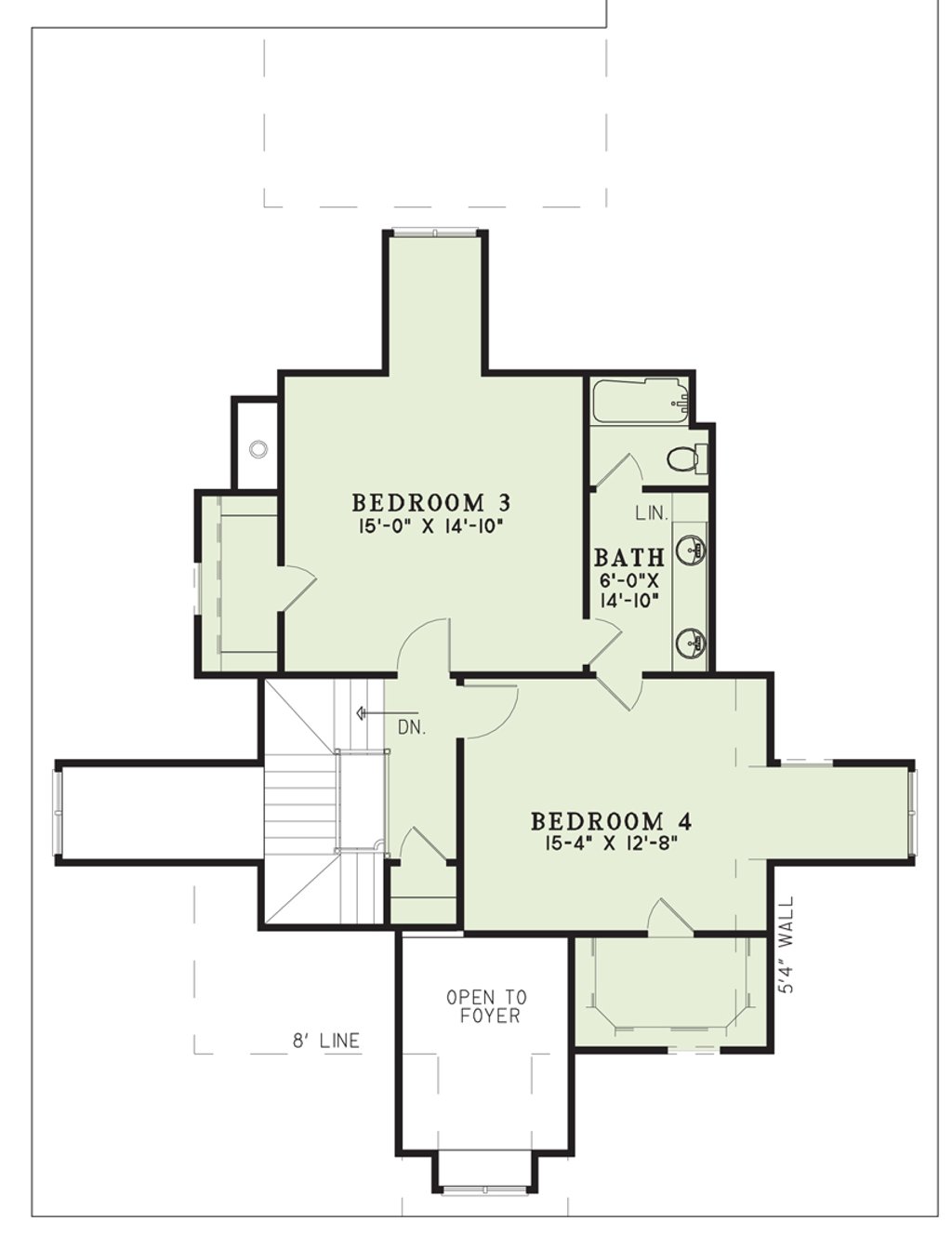

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 101'
Height : 29' 8"
Width : 50' 8"
Area
First Floor: 2507 sq/ft height 9'
Garage: 565 sq/ft
Porch: 297 sq/ft
Second Floor: 768 sq/ft height 8'
Roof
Primary Pitch : 12:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Courtyard
Covered Rear Porch
Rooms
Bathroom 2:
88 sq/ft width 6' x depth 14' 10"
Bedroom 2:
250 sq/ft width 17' 11" x depth 14'
Bedroom 3:
237 sq/ft width 16' x depth 14' 10"
Bedroom 4:
206 sq/ft width 16' 4" x depth 12' 8"
Breakfast Room:
155 sq/ft width 11' x depth 14' 2"
Courtyard:
1368 sq/ft width 36' x depth 38'
Dining Room:
185 sq/ft width 13' 3" x depth 14'
Foyer:
91 sq/ft width 8' 4" x depth 11'
Garage:
534 sq/ft width 21' 8" x depth 24' 8"
Great Room:
394 sq/ft width 17' 2" x depth 23'
Grilling Porch:
154 sq/ft width 17' 2" x depth 9'
Hearth Room:
133 sq/ft width 11' x depth 12' 2"
Kitchen:
201 sq/ft width 11' x depth 18' 4"
Laundry Room:
97 sq/ft width 12' 2" x depth 8'
Master Bathroom:
206 sq/ft width 12' 2" x depth 17'
Master Suite:
300 sq/ft width 18' x depth 16' 8"
Sitting Area:
126 sq/ft width 10' 10" x depth 11' 8"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

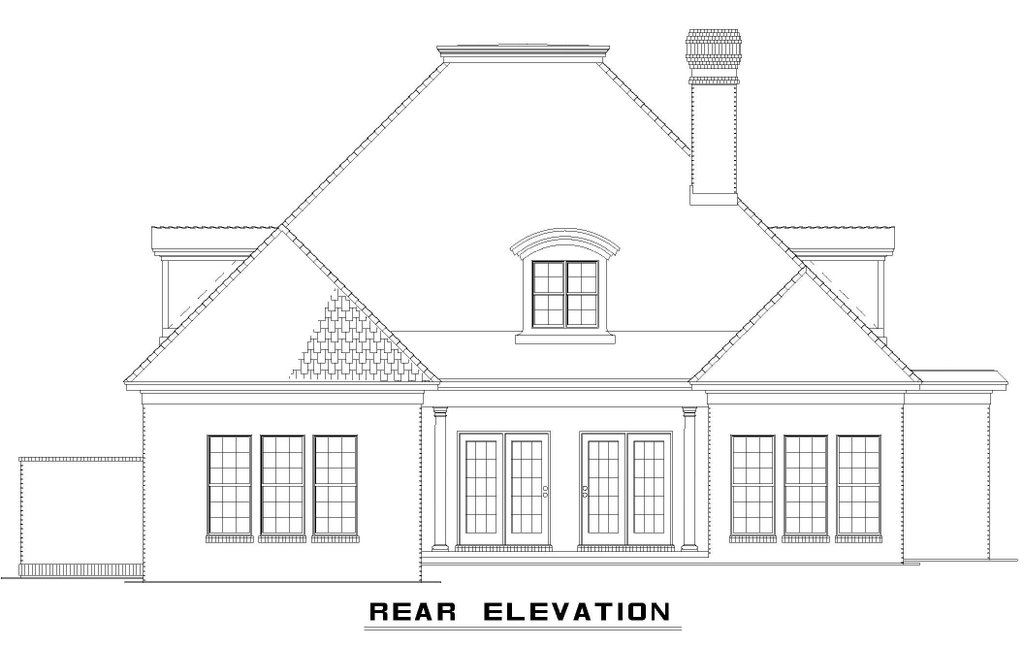

- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$1200.00
$1300.00
$1550.00
$1900.00
$2400.00
$2400.00
Foundation
$0.00
$0.00
$299.00
$299.00
Framing
$0.00
$299.00
Additional Options
$299.00
$80.00
$100.00
$395.00
$39.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
