Photographs may show modified designs.
PLAN 952-174
Key Specs
3089
sq ft
4
Beds
3
Baths
2
Floors
2
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
PLAN 952-174
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Plan Description

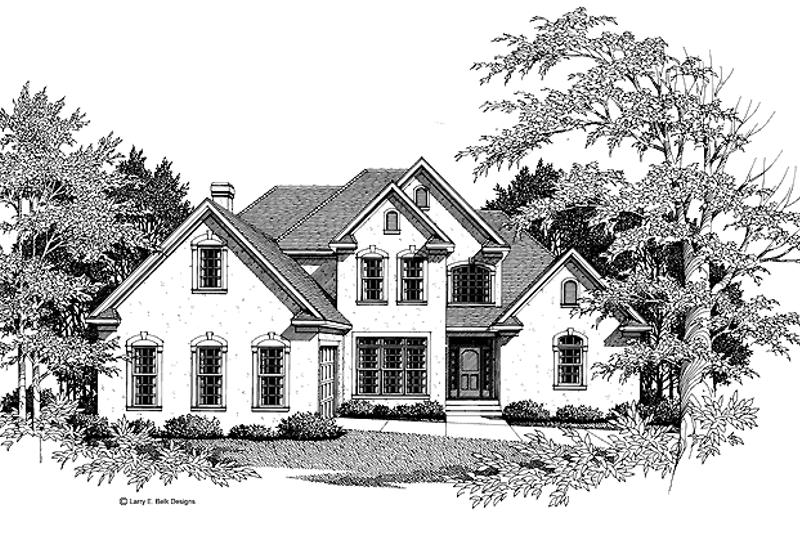

Multi-pane windows, varied roof lines and a stucco facade combine to give this home a wonderful European flavor. A two-story foyer ushers you into the formal areas of the living room and dining room. The large kitchen works well with the cozy family room and sunny breakfast room, with a pass-through to the family room. A nearby bedroom has access to a full bath and can be used as a guest suite. The luxurious master bedroom with its lavish bath and His and Hers walk-in closets rounds out this level. Dominating the second floor, the large game room is accessible to the two family bedrooms. Each bedroom has a walk-in closet and a shared full bath.
Full Specs & Features
Height : 32'
Width : 60' 6"

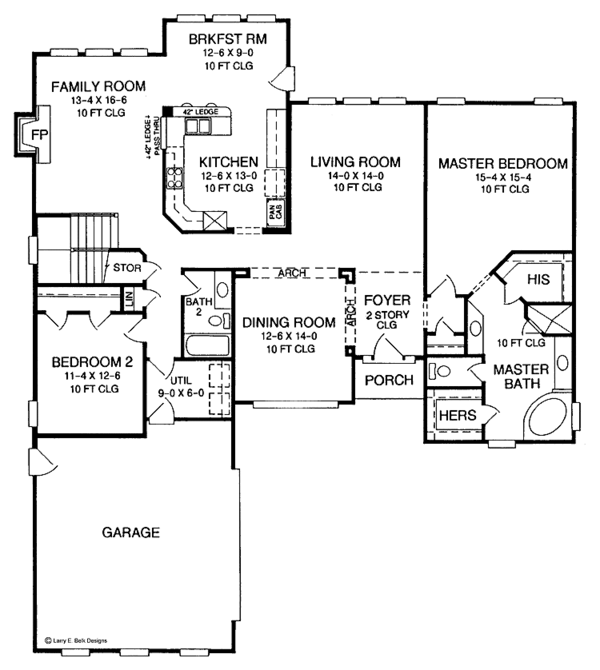

First Floor: 2200 sq/ft
Garage: 523 sq/ft

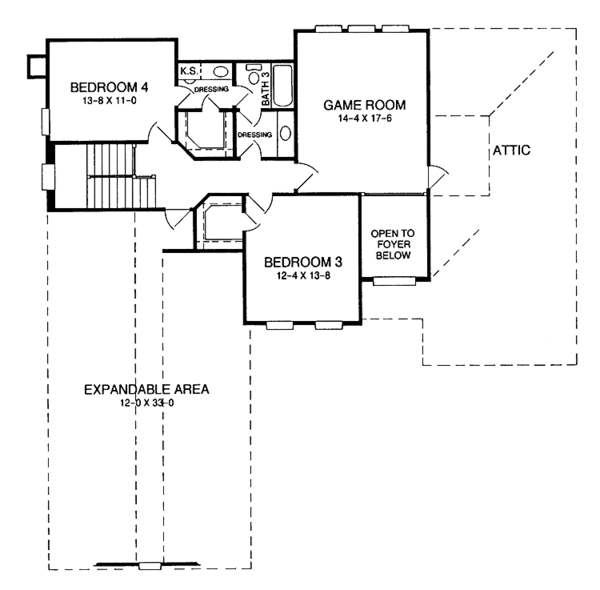

Second Floor: 889 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Bedroom 2:
141 sq/ft width 11' 4" x depth 12' 6"
Bedroom 3:
168 sq/ft width 12' 4" x depth 13' 8"
Bedroom 4:
150 sq/ft width 13' 8" x depth 11'
Breakfast Room:
112 sq/ft width 12' 6" x depth 9'
Dining Room:
175 sq/ft width 12' 6" x depth 14'
Game Room:
250 sq/ft width 14' 4" x depth 17' 6"
Gathering Room:
219 sq/ft width 13' 4" x depth 16' 6"
Kitchen:
162 sq/ft width 12' 6" x depth 13'
Living Room:
196 sq/ft width 14' x depth 14'
Master Bedroom:
235 sq/ft width 15' 4" x depth 15' 4"
Utility Room:
54 sq/ft width 9' x depth 6'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
| PDF Set
: $1215.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Additional Construction Sets
: $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets
: $55.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
