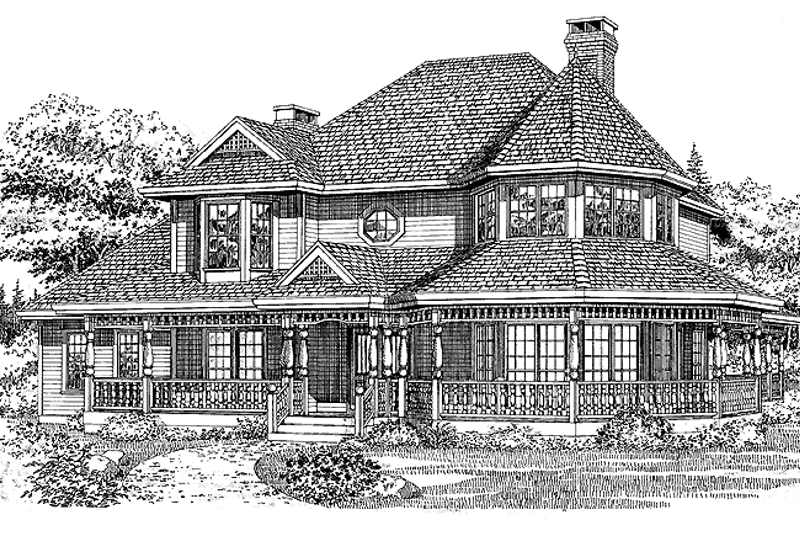

Architectural House Design - Victorian Exterior - Front Elevation Plan #47-747

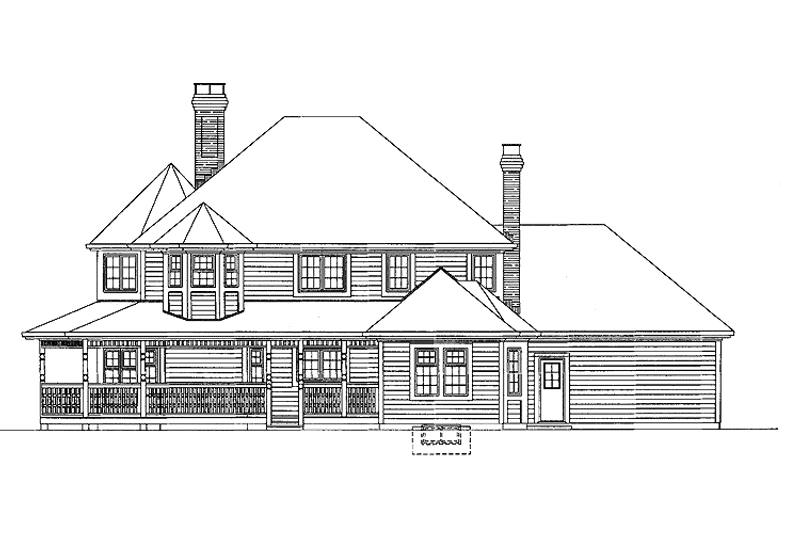

Architectural House Design - Victorian Exterior - Rear Elevation Plan #47-747

Architectural House Design - Victorian Floor Plan - Main Floor Plan #47-747

Architectural House Design - Victorian Floor Plan - Upper Floor Plan #47-747

Jump to:
All (5)
Exterior (3)
Floor plans (2)

Get Personalized Help

Home > Style > Victorian House Plans

Key Specs

2750
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$165.75
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$51.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$420.75
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$127.50
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$250.75
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$127.50
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List	$72.25
	A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Mirror Reversed Sets$0.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License	$845.75
	Allows you to build this home as many times as you want.

Subtotal

NOW $1083.85

You save $191.27 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 47-747

Home > Style > Victorian House Plans

Key Specs

2750
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

A touch of Victoriana enhances the facade of this home: a turret roof over a wraparound porch with turned wood spindles. Special attractions on the first floor include a tray ceiling in the octagonal living room, fireplaces in the country kitchen and the living room, a coffered ceiling in the family room, and double-door access to the cozy den. The master suite, set in the upper level of the turret, boasts a coffered ceiling, walk-in closet, and whirlpool tub. Three family bedrooms and a full hall bath join the master suite on the second floor.

Floor Plans

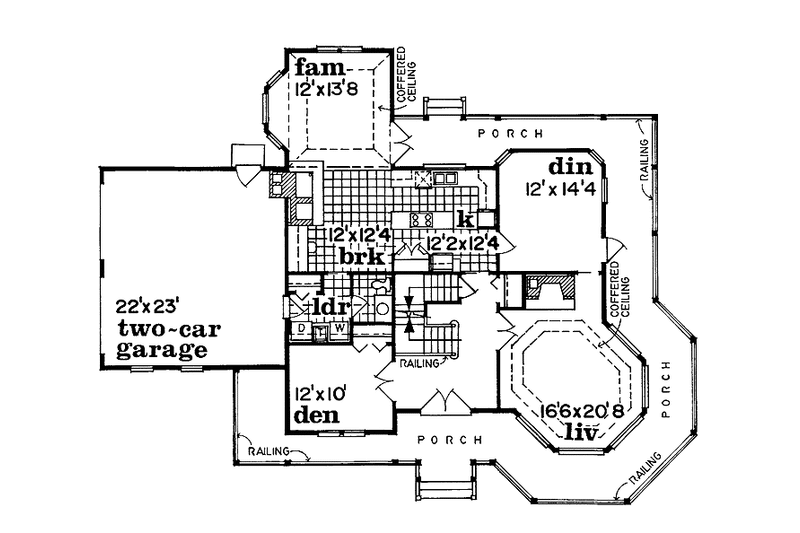

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

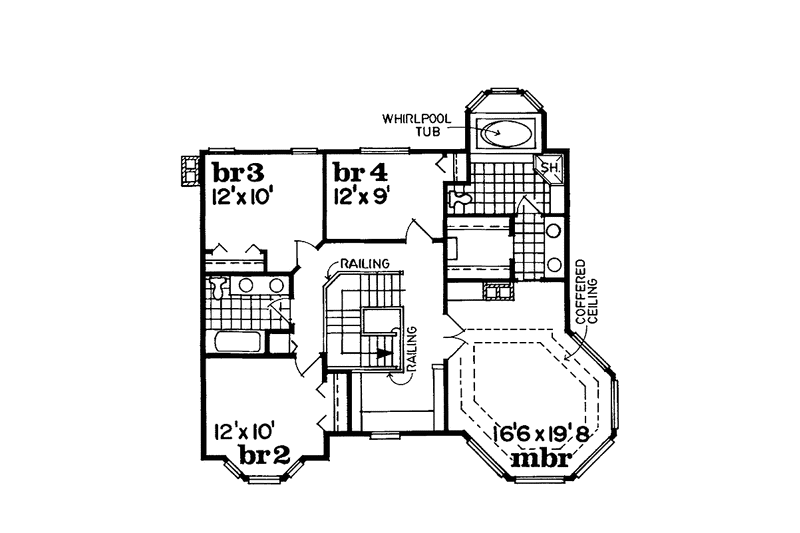

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 54'

Height : 33'

Width : 70' 8"

Area

First Floor: 1462 sq/ft height 9'

Second Floor: 1288 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Combination Truss/Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Main Floor Laundry

Master Sitting Area

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Covered Front Porch

Wrap Around Porch

Rooms

3rd BR Closet:

12 sq/ft width 6' x depth 2'

Basement Foundation:

1928 sq/ft width 40' 2" x depth 48'

Bedroom 2:

120 sq/ft width 12' x depth 10'

Bedroom 2 Closet:

12 sq/ft width 2' x depth 6'

Bedroom 3:

120 sq/ft width 12' x depth 10'

Bedroom 3 Closet:

12 sq/ft width 2' x depth 6'

Bedroom 4:

108 sq/ft width 12' x depth 9'

Bedroom 4 Closet:

6 sq/ft width 2' x depth 3' 2"

Breakfast Room:

147 sq/ft width 12' x depth 12' 4"

Crawlspace Foundation:

1928 sq/ft width 40' 2" x depth 48'

Den/Office or Bedroom 1:

120 sq/ft width 12' x depth 10'

Dining Room:

171 sq/ft width 12' x depth 14' 4"

Foyer:

74 sq/ft width 11' 10" x depth 6' 4"

Garage:

506 sq/ft width 22' x depth 23'

Gathering Room:

164 sq/ft width 12' x depth 13' 8"

Hall Bathroom:

72 sq/ft width 8' 8" x depth 8' 4"

Hall Closet:

8 sq/ft width 2' x depth 4'

Kitchen:

150 sq/ft width 12' 2" x depth 12' 4"

Living Room:

341 sq/ft width 16' 6" x depth 20' 8"

Master Bathroom:

150 sq/ft width 12' x depth 12' 6"

Master Bedroom:

324 sq/ft width 16' 6" x depth 19' 8"

Master Closet:

41 sq/ft width 6' 4" x depth 6' 6"

Porch - Front:

325 sq/ft width 54' 2" x depth 6'

Porch - Left:

241 sq/ft width 6' x depth 40' 4"

Porch - Rear:

148 sq/ft width 24' 8" x depth 6'

Porch - Right:

49 sq/ft width 6' x depth 8' 4"

Powder Room:

25 sq/ft width 4' 4" x depth 6'

Utility Room:

43 sq/ft width 7' 2" x depth 6'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
