Plan Description

This five bedroom three bathroom open floor plan retreat ensures that no one is left out of the invitations or activities. The main level outdoor living spaces include an open sundeck a covered sundeck as well as a screened porch ideal for anything the weather can throw at you. The two second floor bedrooms with ten and twelve foot vaulted ceilings have ample closet space and the master boasts a private rear facing covered balcony. The daylight basement plan contains two additional bedrooms, shared bathroom and multipurpose recreation room with rear French door patio access.

Floor Plans

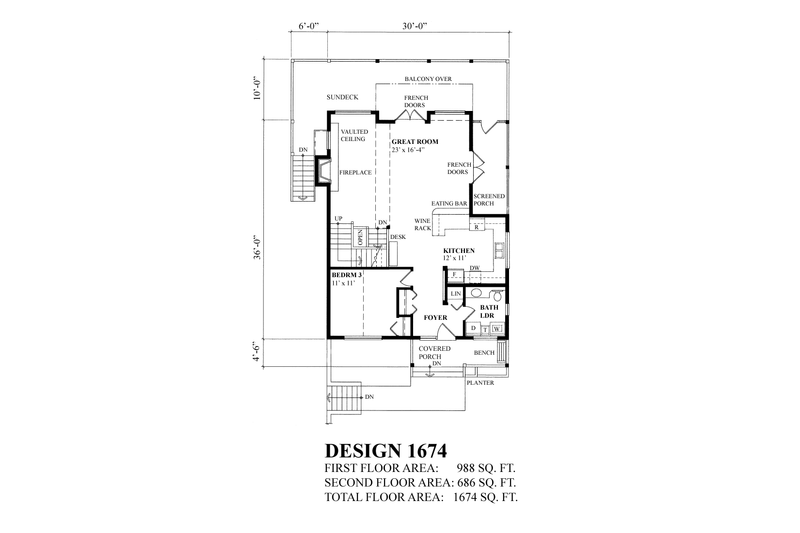

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

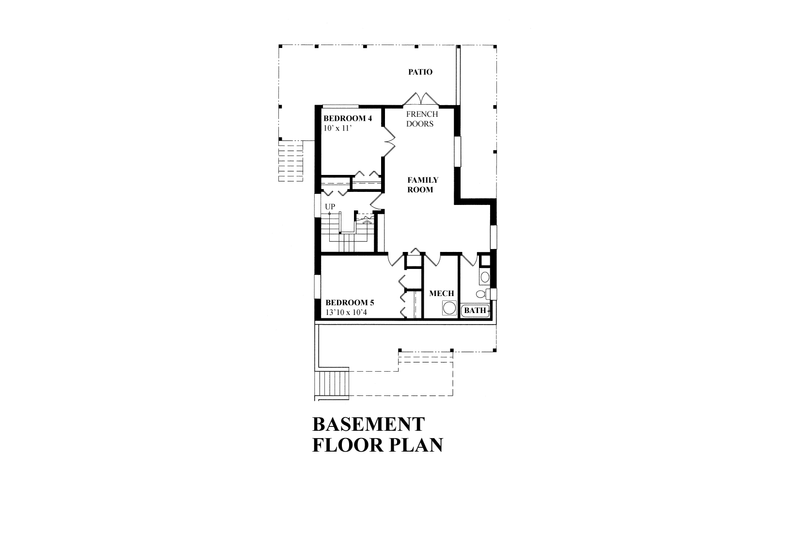

Floor Plan - Lower Floor

Full Specs & Features

Dimension

Depth : 50' 6"

Height : 25'

Width : 36'

Area

Lower Floor : 988 sq/ft

Main Floor : 988 sq/ft

Upper Floor : 686 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vaulted ceiling for a portion of Great Room. Sloped ceiling on second floor.

Lower Ceiling : 8'

Main Ceiling : 8'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : 12/12

Roof Framing : wood

Roof Load : roof live load 34 psf

Roof Type : 2x10

Secondary Pitch : 6/12

Exterior Wall Framing

Exterior Wall Finish : wood

Framing : 2x6

Insulation : R27.5

Kitchen Features

Eating Bar

Additional Room Features

Great Room Living Room

Main Floor Laundry

Lot Characteristics

Suited For Narrow Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Balcony

Covered Front Porch

Screened Porch

Suited For Vacation Home

Unusual Shape

What's Included In This Plan Set

See a sample plan set

Cover sheet with rendering and art floor plans
General notes and specifications
Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
Foundation plan at 1/4″=1′-0″
Main floor plan at 1/4″=1′-0″
Second floor plan at 1/4″=1′-0″, if applicable
Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
Electrical floor plans
Minimum of two cross sections at 1/4″=1′-0″
Details as required
All four elevations at 1/4″=1′-0″
Generic detail sheet
Plans are engineered by a structural engineer, but not stamped or sealed
Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
Assumed soil bearing capacity 1560 psf
Electrical fixtures / switches / smoke alarms by location only on floor plans
Plumbing fixtures by location only on floor plans
Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
